A Look Inside the HPL (High Pressure Laminate) Production Process: From Material Selection to Finished Product to Modification

High Pressure Laminate, commonly known as HPL, is a premium decorative and functional surface material widely used in modern architecture, furniture, interior design, and industrial applications. Its popularity stems from its exceptional durability, fire resistance, and aesthetic flexibility, making it ideal for both residential and commercial environments.

But have you ever wondered how HPL is made? Behind its smooth surface and elegant appearance lies a complex chemical and mechanical production process that transforms layers of paper and resin into a robust, high-performance material. This article provides an in-depth look at the entire HPL production process—from raw material selection to post-production modification—and explains how each step contributes to the superior quality of the final product.

1. Understanding HPL: What Is High Pressure Laminate?

High Pressure Laminate (HPL) is a composite material formed by stacking multiple layers of resin-impregnated paper under high heat and pressure. The result is a dense, durable sheet that exhibits impressive scratch resistance, impact strength, moisture resistance, and fire retardancy.

HPL is used across industries for countertops, wall claddings, cabinetry, partitions, and exterior facades. Its combination of strength and design versatility makes it one of the most widely adopted surface materials in modern construction and manufacturing.

2. The Core Components: Raw Materials in HPL Production

Before any pressing or heating begins, the quality and composition of raw materials determine the overall performance of the HPL sheet. Each layer serves a unique purpose and contributes specific properties.

2.1 Decorative Paper (Surface Layer)

This is the visible layer of HPL that defines its color, pattern, and aesthetic style. It can feature solid colors, wood grains, stone patterns, or even custom digital prints. To ensure durability and visual appeal, decorative paper is impregnated with melamine resin, which enhances surface hardness and stain resistance.

2.2 Kraft Paper (Core Layers)

The kraft paper layers form the core structure of the laminate. These brown sheets provide the mechanical strength, rigidity, and thickness of the HPL board. Typically, multiple layers are stacked depending on the desired thickness—ranging from 0.6mm to over 30mm for compact laminates.

2.3 Overlay Paper (Optional Protective Layer)

In some applications, an overlay paper or transparent wear-resistant film is applied above the decorative paper. This adds an extra layer of protection against abrasion and chemical exposure, ideal for high-traffic areas like hospitals or laboratories.

2.4 Resins

Resins are the key binding agents in HPL production. The two most commonly used resins are:

• Phenolic Resin: Used for kraft paper impregnation, it provides strength, fire resistance, and dimensional stability.

• Melamine Resin: Used for decorative paper impregnation, it offers surface hardness, gloss, and stain resistance.

2.5 Additives

To meet specialized requirements, additives such as pigments, flame retardants, UV absorbers, and release agents are incorporated. These ingredients tailor HPL’s performance for various applications, from outdoor facades to sterile medical surfaces.

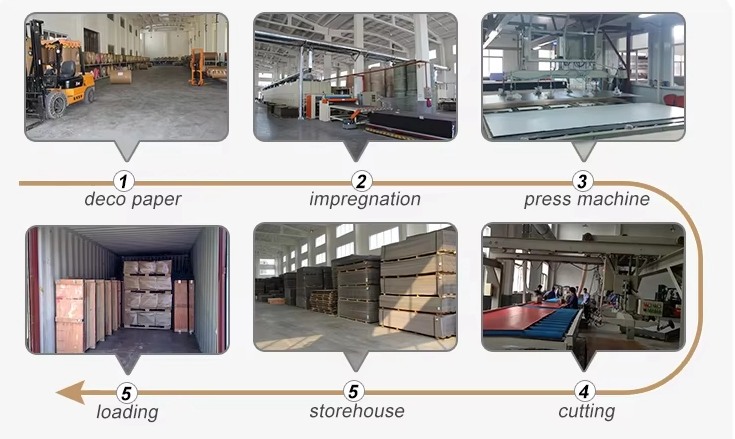

3. Step-by-Step: The HPL Production Process

The production of High Pressure Laminate involves several carefully controlled stages. Each stage plays a vital role in determining the durability, texture, and visual quality of the final product.

3.1 Impregnation: The Foundation of Quality

The first and most crucial step is impregnating the base papers with resin.

• Kraft paper is passed through a phenolic resin bath, ensuring that the resin fully penetrates the paper fibers.

• Decorative paper (and overlay paper, if used) is impregnated with melamine resin.

After impregnation, the papers are dried in large ovens to remove excess solvent and achieve a semi-cured B-stage—a state in which the resin is tacky but not fully hardened. This ensures optimal adhesion during hot pressing.

3.2 Layer Stacking: Building the Structure

Once impregnated, the papers are cut and layered in a specific order:

1. Bottom kraft paper layers – providing bulk and strength.

2. Middle kraft paper layers – adjusting thickness and stiffness.

3. Decorative paper layer – defining surface design.

4. Optional overlay – for additional abrasion resistance.

These stacked layers form a laminate pack, which is then prepared for pressing.

3.3 Hot Pressing: Where the Transformation Happens

This stage is the heart of HPL production. The laminate pack is placed into a multi-layer hydraulic press, where it is subjected to:

• High Temperature: Typically between 120°C and 150°C

• High Pressure: Typically between 5 MPa and 12 MPa

Under these extreme conditions, the resins melt, flow, and cross-link, binding the paper layers into a single, solid sheet. The surface mold plate used in pressing determines the final texture or finish—whether glossy, matte, suede, or embossed.

3.4 Cooling and Demolding: Stabilizing the Structure

After the resin cures, the press is gradually cooled while maintaining pressure. This controlled cooling process prevents internal stress and ensures dimensional stability. The newly formed HPL sheet is then removed (demolded) and transferred for further processing.

3.5 Trimming and Sanding: Perfecting the Edges

Each sheet undergoes edge trimming to meet exact dimensional specifications. The back side is typically sanded to improve adhesion when bonding to substrates like MDF, particleboard, or plywood. This makes it ideal for laminated furniture panels and countertops.

3.6 Quality Inspection: Ensuring Excellence

Before being released to the market, HPL boards must pass rigorous quality control tests. Inspections focus on:

• Surface Appearance: No bubbles, scratches, or discoloration.

• Thickness and Flatness: Within tolerance limits.

• Mechanical Properties: Impact, flexural, and tensile strength.

• Performance Tests: Abrasion resistance, fire resistance, and chemical resistance.

Only sheets that meet the full criteria are approved for shipment.

4. Post-Production Modifications: Enhancing Performance and Functionality

While standard HPL already exhibits outstanding properties, further modifications can be made to adapt it for specialized applications. These enhancements expand HPL’s usability across industries such as healthcare, education, transportation, and outdoor architecture.

4.1 Flame Retardant HPL

To meet strict building codes and safety regulations, flame retardant additives are incorporated into the phenolic resin used for kraft paper. This modification significantly enhances the fire resistance rating, making it suitable for airports, hospitals, and public buildings.

4.2 Antibacterial and Antiviral HPL

By infusing antibacterial agents or nano-silver particles into the melamine surface resin, manufacturers can produce HPL with antimicrobial properties. Such surfaces actively inhibit the growth of bacteria, making them ideal for medical facilities, schools, and food preparation areas.

4.3 UV and Weather-Resistant HPL

For outdoor applications, like facades, signage, and exterior cladding, HPL must withstand harsh sunlight and weather. By adding UV absorbers, light stabilizers, and weather-resistant resins, manufacturers create exterior-grade HPL with enhanced fade resistance and durability.

4.4 Anti-Fingerprint and Super-Matte Finishes

Recent innovations in surface technology have made possible anti-fingerprint and super-matte HPL finishes. These specialized coatings reduce smudges, enhance tactile softness, and maintain a pristine appearance—perfect for luxury interiors and modern furniture design.

4.5 Customized Surface Textures and Patterns

Through different steel mold plates used during pressing, HPL can achieve a wide range of surface textures—from glossy and satin finishes to deep wood grains and stone effects. This versatility allows architects and designers to create spaces with unique visual identities.

5. Environmental Considerations in HPL Manufacturing

Modern HPL production increasingly emphasizes sustainability and environmental protection. Many manufacturers have adopted low-emission resins, energy-efficient processes, and recycling systems to minimize their ecological footprint.

• Formaldehyde-Free Resins: Reduce VOC emissions for improved indoor air quality.

• Recycled Paper Use: Eco-friendly kraft and decorative papers reduce deforestation.

• Energy Recovery Systems: Capture and reuse heat from production lines.

These measures make HPL not only durable and beautiful but also a greener choice for the planet.

6. Applications of HPL Across Industries

Due to its versatility, performance, and design variety, HPL is widely used in diverse sectors:

• Interior Design: Walls, partitions, cabinetry, and furniture.

• Commercial Spaces: Countertops, tabletops, and doors.

• Healthcare Facilities: Hygienic, antibacterial surfaces.

• Educational Institutions: Desktops and lab surfaces.

• Exterior Architecture: Ventilated facades and signage.

HPL’s adaptability makes it one of the most economical and sustainable surface materials available today.

7. Conclusion: The Art and Science Behind HPL Production

The journey of High Pressure Laminate—from simple layers of paper and resin to a durable, elegant finished product—is both artistic and scientific. Each step, from raw material selection to pressing, curing, and modification, is meticulously engineered to ensure optimal performance and longevity.

Through continuous technological innovation, modern HPL not only meets aesthetic demands but also supports health, safety, and sustainability in built environments. Whether used indoors or outdoors, in homes or hospitals, HPL stands as a testament to human ingenuity—transforming chemistry and craftsmanship into beauty and strength.
