Chemical resistant laminate is a laboratory-grade high-pressure laminate or compact phenolic panel engineered to provide improved resistance to acids, alkalis, solvents, stains, disinfectants and other specified chemical reagents.
The material is commonly manufactured from layers of kraft paper impregnated with phenolic resin, decorative paper treated with melamine resin and a specialized chemical-resistant surface layer. Heat and pressure consolidate these layers into a durable laboratory surface.
POLYBETT chemical resistant HPL is developed for laboratory worktops, school science benches, hospital counters, testing centers, pharmaceutical workstations, fume hood components and other technical environments requiring a cleanable and durable work surface.
Chemical resistance is not an absolute property. Performance depends on the exact reagent, concentration, temperature, exposure time, cleaning procedure and tested product grade. Buyers should request the applicable chemical-resistance report and test samples with the substances used in their laboratory.
Need chemical resistant panels for a laboratory or technical workspace?
Send us your reagent list, required exposure time, panel thickness, dimensions, quantity, application and destination. POLYBETT can provide suitable product options, samples and quotation information.
The following information represents common POLYBETT laboratory-grade laminate options. Final specifications and chemical performance should be confirmed for the selected product.
| Item | Typical Specification |
|---|---|
| Product name | Chemical Resistant HPL / Laboratory-Grade Phenolic Laminate |
| Core material | Multiple layers of kraft paper impregnated with phenolic resin |
| Decorative layer | Colored or printed decorative paper impregnated with melamine resin |
| Surface layer | Specialized chemical-resistant surface film or laboratory-grade overlay |
| Available construction | Thin laboratory HPL for bonding or self-supporting compact phenolic laminate |
| Common thicknesses | 6mm, 12.7mm, 15mm and 16mm |
| Recommended sizes | 1530 × 3050mm, 1530 × 3660mm and 1830 × 3660mm |
| Imperial sizes | 5 × 10ft, 5 × 12ft and 6 × 12ft |
| Common colors | Grey, green, black, white and customized colors |
| Surface finish | Suede or textured laboratory-grade finish |
| Typical properties | Chemical resistance, impact resistance, abrasion resistance, stain resistance, moisture resistance and easy cleaning |
| Primary applications | Laboratory worktops, hospital counters, testing benches, school science furniture and pharmaceutical workstations |
| Customization | Thickness, sheet size, color, cutting, drilling, sink cut-outs, edge processing and packaging |
| Typical MOQ | Approximately 200 panels; final MOQ depends on specifications |
| Typical production time | Approximately 25 days, subject to quantity and production schedule |
| Sample options | A4 samples or approximately 120 × 120mm samples, subject to availability |
| Packaging | Protective plywood pallets or plywood cases |
The specialized upper layer is formulated to improve resistance to specified acids, alkalis, solvents, stains and laboratory reagents. Its performance must be evaluated using the applicable product test report.
A colored or printed decorative paper impregnated with melamine resin provides the visible color and surface design.
Multiple kraft-paper layers impregnated with phenolic resin create the dense structural core. The number of layers determines the final panel thickness.
Heat and pressure cure the thermosetting resins and consolidate the layers into a strong, stable laboratory-grade laminate panel.
A chemical-resistant surface is designed to withstand specified exposure conditions without unacceptable staining, softening, blistering, cracking, loss of gloss or permanent surface damage.
A panel should not be described as resistant to every chemical. The following variables can significantly change the result:
Chemical identity: Different acids, bases, solvents, oxidizers and dyes interact differently with a surface.
Concentration: A dilute solution may produce a different result from a concentrated reagent.
Contact time: Resistance after a few minutes does not establish resistance after one, sixteen or twenty-four hours.
Temperature: Heated chemicals can be more aggressive than the same reagent at room temperature.
Covered or uncovered exposure: A covered drop can prevent evaporation and increase surface contact.
Cleaning procedure: Prompt spill removal normally reduces the risk of permanent damage.
Surface condition: Existing scratches, damaged joints and cut edges can affect performance.
Compact phenolic laminate is a dense, self-supporting laboratory panel. It is commonly used for worktops, island benches, sinks, counters and technical furniture requiring structural strength and moisture resistance.
Thin laboratory-grade HPL must be bonded to a suitable substrate such as MDF, industrial particleboard or plywood. The completed panel requires a compatible adhesive, balancing laminate and protected edges.
Horizontal worktop-grade panels are intended for laboratory benches and counters exposed to equipment, glassware, spills, abrasion and frequent cleaning. Buyers should confirm the tested exposure time and chemical list.
Vertical-grade chemical-resistant laminate is used for splashbacks, fume hood linings, cabinet fronts, wall panels and screens. A vertical-grade surface should not automatically be specified for heavy-duty horizontal worktops.
Selected products may be available with tested antibacterial surface performance. Chemical resistance, antibacterial performance and cleanability are separate properties and require separate supporting documentation.
A smooth, non-porous surface should not be described as sterile or antibacterial unless the exact product has been tested for that property.
Laboratory-grade surfaces may be evaluated against representative chemicals from the following groups. Inclusion in this table does not mean every POLYBETT product is resistant to every listed substance or concentration.
| Chemical Category | Typical Examples | Specification Requirement |
|---|---|---|
| Mineral acids | Hydrochloric, sulfuric, nitric and phosphoric acid | Confirm exact acid, concentration and contact time |
| Organic acids | Acetic, citric and formic acid | Request tested concentration and evaluation result |
| Alkalis | Sodium hydroxide, ammonium hydroxide and alkaline cleaners | Strong alkalis may require higher-performance materials |
| Organic solvents | Ethanol, isopropyl alcohol, acetone, toluene and xylene | Confirm volatile-solvent testing method and duration |
| Oxidizing agents | Peroxides, permanganates and hypochlorite solutions | Strong oxidizers can discolor or damage some laminate surfaces |
| Dyes and indicators | Iodine, crystal violet, methylene blue and biological stains | Evaluate both chemical damage and visible staining |
| Disinfectants | Alcohol solutions, chlorine-based cleaners and quaternary disinfectants | Confirm repeated-cleaning compatibility |
| Laboratory reagents | Salts, buffers, culture media and analytical solutions | Provide the laboratory’s complete reagent list |
A specialized laboratory-grade surface provides improved resistance to specified acids, alkalis, solvents, reagents and staining substances under defined test conditions.
Compact phenolic panels do not rely on an MDF or particleboard core. Their dense construction makes them suitable for frequently cleaned laboratory furniture and humid technical environments.
The high-pressure construction provides practical resistance to everyday impact, sliding equipment, abrasion and frequent use. Exact performance depends on the selected grade and surface finish.
The smooth surface supports routine cleaning and prompt removal of chemical spills. It is suitable for laboratories, hospitals, schools and testing centers that require frequent surface maintenance.
Large sheet formats can reduce the number of joints on long laboratory benches and island worktops, simplifying cleaning and improving the finished appearance.
Chemical-resistant compact HPL can be cut, drilled, routed and fabricated for sinks, faucets, service fixtures, electrical outlets and laboratory equipment.
Grey, green, black, white and customized colors allow laboratory worktops to coordinate with cabinets, wall panels, service systems and institutional branding.
| Application | Typical Requirements |
|---|---|
| Chemistry laboratories | Resistance to specified acids, alkalis, solvents and analytical reagents |
| School science laboratories | Impact resistance, easy cleaning and economical laboratory worktops |
| Biology laboratories | Resistance to stains, disinfectants, culture media and routine cleaning |
| Medical and hospital laboratories | Cleanability, disinfectant compatibility and optional tested antibacterial performance |
| Pharmaceutical laboratories | Controlled cleaning procedures, reagent resistance and project-specific compliance |
| Testing centers | Durable surfaces for analytical equipment and repeated sample preparation |
| Fume hood interiors | Vertical chemical resistance and compatibility with expected vapors and reagents |
| Laboratory splashbacks | Vertical-grade surface, sealed joints and easy spill removal |
| Industrial quality-control labs | Compatibility with process chemicals, oils, solvents and cleaning agents |
| Food testing facilities | Cleanability and separately verified food-contact requirements where applicable |
For complete laboratory furniture, visit the POLYBETT Laboratory Bench category.
For fabricated work surfaces, visit the POLYBETT Laboratory Table Top category.
| Feature | Horizontal Worktop Grade | Vertical Laboratory Grade |
|---|---|---|
| Typical use | Worktops, counters, island benches and equipment tables | Splashbacks, wall panels, cabinet fronts and fume hood linings |
| Mechanical exposure | Sliding equipment, glassware, impact and abrasion | Lower direct loading but regular splashes and cleaning |
| Chemical exposure | Spills may remain underneath equipment or containers | Shorter contact from splashes, drips and vapors |
| Specification focus | Chemical exposure time, impact, wear, support spacing and thickness | Vertical chemical resistance, cleaning and fixing method |
| Material | Main Advantages | Main Limitations |
|---|---|---|
| Chemical-resistant compact HPL | Decorative, machinable, moisture resistant, lightweight relative to mineral surfaces and available in large sheets | Resistance to aggressive oxidizers, strong alkalis and prolonged exposure must be verified |
| Epoxy resin | Strong resistance to many aggressive chemicals, moisture and heat | Heavier, generally more expensive and can be difficult to modify on site |
| Polypropylene | Strong resistance to many acids and alkalis | Lower heat, scratch and rigidity performance |
| Stainless steel | Heat resistant, cleanable and suitable for many biological applications | Can scratch and may be attacked by chlorides or certain acids |
| Ceramic or stoneware | Strong heat and chemical performance | Heavy, brittle and normally includes joints or grout lines |
Prepare a complete reagent list. Include chemical names, concentrations and expected temperatures.
Define the maximum contact time. Specify whether spills are normally removed immediately or may remain for one, sixteen or twenty-four hours.
Identify horizontal or vertical use. Worktops require different mechanical performance from splashbacks and cabinet fronts.
Select thin HPL or compact laminate. Thin HPL requires a substrate, adhesive, backer and edge treatment.
Choose the panel thickness. Thickness must suit the worktop span, frame spacing, sink cut-outs and equipment loads.
Review heat exposure. Identify hot plates, autoclave components, burners and heated vessels.
Confirm cleaning chemicals. Repeated disinfectant exposure can differ from a single laboratory spot test.
Evaluate sink and service penetrations. Cut-outs require suitable radii, support, clearances and joint detailing.
Request test documentation. Review the test method, reagent list, concentrations, contact time and visual rating.
Test a physical sample. Use the actual chemicals and cleaning process expected in the laboratory.
Store panels flat, dry and protected from direct heat and moisture.
Allow panels, substrates and balancing materials to acclimatize before fabrication.
Use sharp carbide-tipped or suitable diamond cutting tools.
Provide effective dust extraction during cutting, drilling and routing.
Use a minimum internal radius on sink, equipment and service cut-outs.
Avoid sharp internal corners that can concentrate stress and initiate cracking.
Provide adequate support around sinks, large openings and heavy equipment.
Allow suitable expansion clearance around walls, columns and penetrations.
Use compatible adhesives, sealants, fasteners and laboratory service fittings.
Protect joints and cut-outs from prolonged liquid penetration.
Follow the approved laboratory furniture drawings and product fabrication guide.
Chemical spills should be removed promptly, even when the worktop is rated for extended chemical exposure.
Follow the laboratory’s chemical safety and personal protective equipment procedures.
Absorb or remove the chemical using a compatible material.
Rinse the surface with clean water when the reagent safety procedure permits.
Clean with a soft cloth or sponge and a compatible mild detergent.
Remove detergent residue and dry the surface.
Inspect the surface for staining, gloss change, softening, cracking or blistering.
Do not use steel wool, metal scrapers or strongly abrasive pads.
Do not cut directly on the laboratory laminate surface.
Use heat-resistant supports under hot equipment and containers.
Do not mix incompatible chemicals during cleaning.
Consult the product supplier before using an unlisted cleaner or reagent.
Chemical-resistance reports should clearly identify the exact product, surface finish, panel construction, test method, reagents, concentrations, exposure duration and evaluation scale.
Common references for laboratory work surfaces and HPL testing can include SEFA work-surface practices, ISO 4586 test methods, EN 438 requirements, NEMA LD3 or a manufacturer-specific laboratory chemical test.
A claim such as “24-hour chemical resistance” should apply only to the tested reagents and conditions. It does not establish resistance to every chemical used in every laboratory.
When a critical chemical is not included in the report, request a test sample and evaluate it using the actual concentration, temperature, contact time and cleaning procedure.

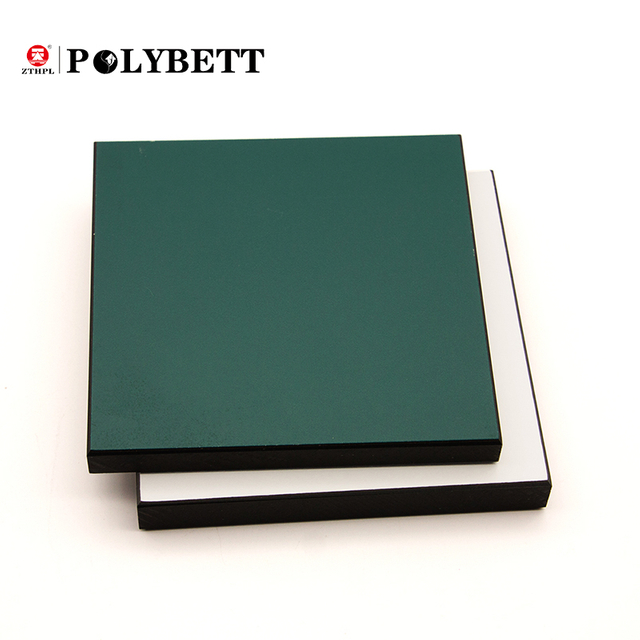

Compact phenolic laboratory panel available in large sheet sizes for worktops, testing benches, hospital counters and technical furniture.

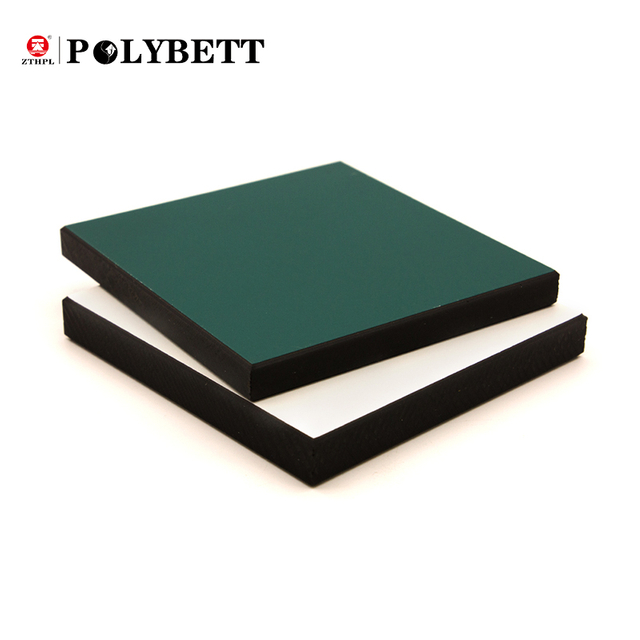

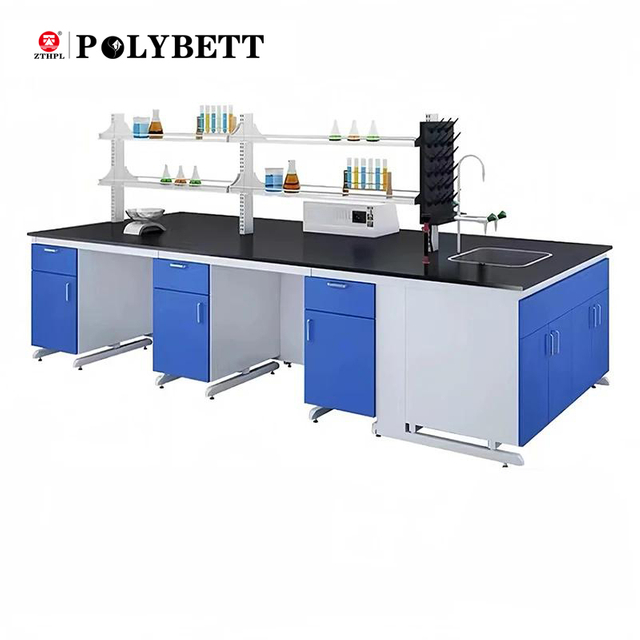

Chemical-resistant phenolic laminate for laboratory table tops, institutional workstations and technical furniture requiring durable surfaces.

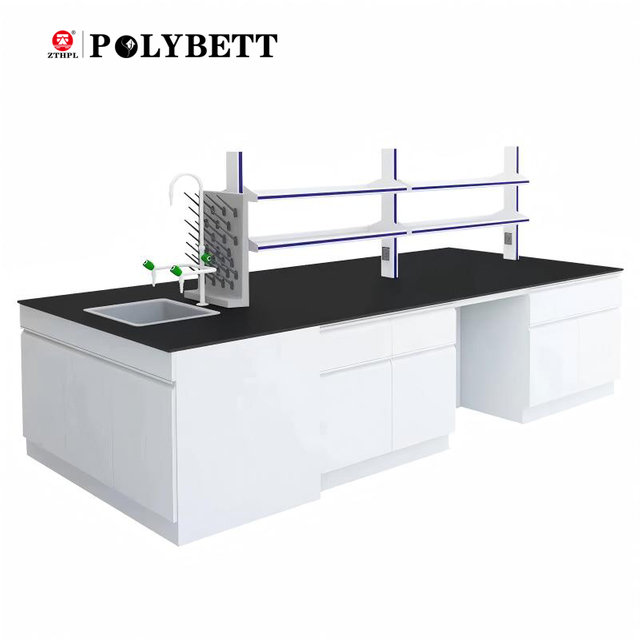

Large-format laboratory HPL in grey, green, black, white and customized colors for hospitals, schools, laboratories and testing centers.
View Professional Laboratory HPL

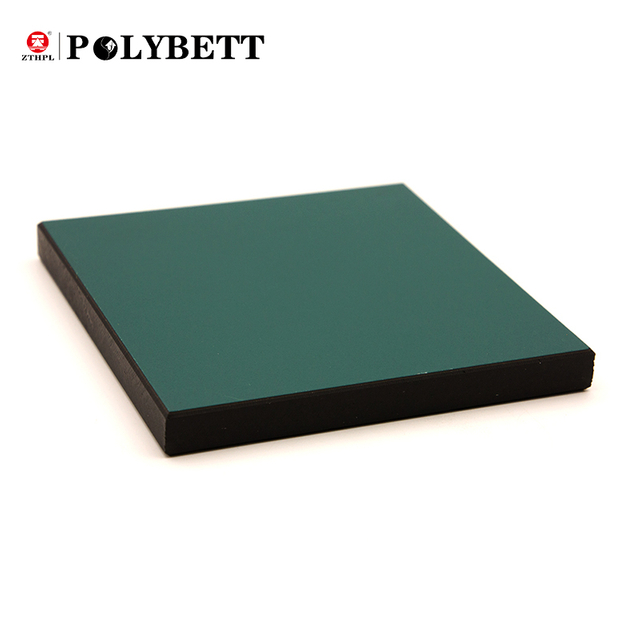

A thinner compact laboratory panel for selected furniture, vertical panels, school science laboratories and project-specific applications.
View 6mm Chemical Resistant HPL
Self-supporting solid phenolic laminate for laboratory counters, medicine preparation tables, testing centers and commercial technical surfaces.

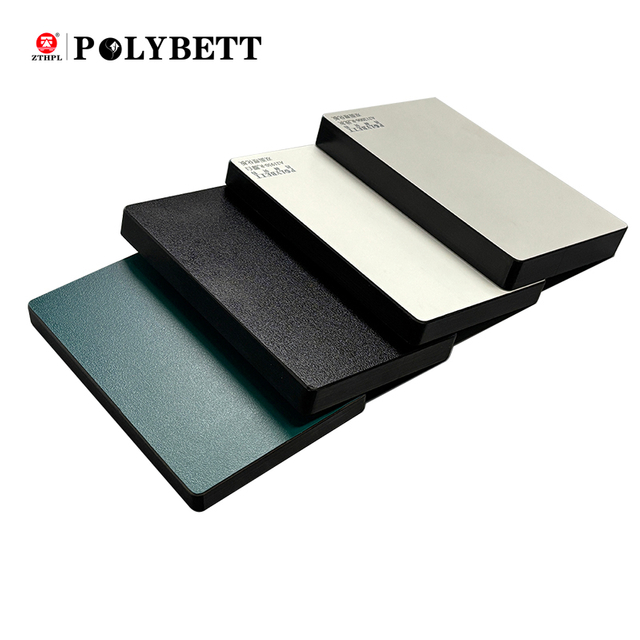

Compact HPL worktop material for laboratories, blood banks, pharmacies, medical facilities, testing centers and scientific workstations.
View Laboratory Countertop HPL
POLYBETT provides grey, green, black, white, solid colors and selected decorative designs for laboratory-grade laminate panels.
The following images are design references. Chemical-resistant surface availability must be confirmed for each color and pattern. Physical sample approval and actual reagent testing are recommended before ordering.
U121014
U121015
U121016
M118003
U121018
U121013
U121017
U121019
U121021
U121024
E229001
U121022
U231004
M119004
M119003
U121008
U121005
U121009
U121010
U121011
C22927
E225478
E229398
A222792
C227209
E225487
M112001
E229439
M118005
M112003
M118004
More than 20 years of experience in HPL and compact phenolic laminate manufacturing.
Chemical-resistant panels for laboratories, hospitals, schools and testing centers.
Common thickness options including 6mm, 12.7mm, 15mm and 16mm.
Large-format sheets for laboratory benches and island worktops.
Grey, green, black, white and customized color options.
Compact phenolic panels and thinner laboratory laminate options.
Cutting, drilling, routing, sink cut-outs and customized fabrication support.
Physical samples for surface, color and actual reagent evaluation.
OEM and ODM support for laboratory furniture companies and distributors.
Appearance, dimensions and thickness inspection before delivery.
Export packaging and international shipping coordination.
It is typically made from phenolic-resin kraft-paper layers, a decorative melamine paper and a specialized chemical-resistant surface layer consolidated under high temperature and pressure.
Chemical-resistant HPL can be supplied as a thin sheet that requires a substrate or as a thicker self-supporting compact phenolic panel. The construction should be confirmed before ordering.
No. Resistance depends on the exact chemical, concentration, temperature, contact time and tested product grade. Review the chemical-resistance report and test critical reagents on a sample.
Provide all acids, alkalis, solvents, oxidizers, dyes, disinfectants and process chemicals expected to contact the surface, together with their concentrations and temperatures.
It means the tested surface met the stated evaluation criteria after exposure to specified reagents for the defined test period. It does not mean the surface resists every chemical for twenty-four hours.
Common POLYBETT compact worktop thicknesses include 12.7mm, 15mm and 16mm. The correct thickness depends on support spacing, worktop width, sink cut-outs and equipment loads.
Six-millimeter panels may be suitable for selected applications when adequately supported. Large horizontal spans, heavy equipment and large cut-outs may require a thicker panel or additional support.
Common sizes include 1530 × 3050mm, 1530 × 3660mm and 1830 × 3660mm. Availability depends on thickness, color and surface grade.
Yes. It is commonly considered for school science benches because it combines chemical resistance, impact resistance, cleanability and decorative color options.
It can be used for selected hospital counters, medicine preparation tables, laboratory furniture and work surfaces when its chemical, disinfectant and hygiene performance meets the project requirements.
Not every chemical-resistant laminate is antibacterial. Antibacterial performance is a separate property that must be supported by a test report for the selected product.
Compact phenolic laminate provides strong resistance to moisture, but the completed laboratory worktop is not automatically waterproof. Joints, sink cut-outs, drilled holes and wall connections also require proper detailing.
The surface provides practical resistance to ordinary laboratory heat exposure, but it should not be treated as completely heatproof. Use suitable supports beneath hot equipment and containers.
A suitable vertical-grade product may be used for selected fume hood linings and splashbacks. Compatibility with the expected vapors, reagents, temperatures and fire requirements must be confirmed.
Chemical-resistant HPL is generally lighter, easier to machine and available in more decorative colors. Epoxy resin may be more suitable for laboratories with prolonged exposure to highly aggressive chemicals or greater heat requirements.
Yes. Sink, faucet, electrical and service openings can be CNC machined. Internal corners should be rounded, and large cut-outs require adequate support and movement clearance.
Follow the laboratory safety procedure, remove the spill promptly, rinse when permitted and clean with a compatible detergent. Do not leave chemicals on the surface solely because the panel is described as chemical resistant.
Abrasive powders, steel wool and aggressive scouring pads should be avoided because they can damage the finish and reduce stain and chemical resistance.
Depending on the market and project, buyers may request results based on SEFA work-surface practices, ISO 4586, EN 438, NEMA LD3 or an equivalent manufacturer laboratory test.
Project-specific evaluation can be discussed when customers provide the chemical name, concentration, temperature, exposure time and acceptance criteria.
Yes. A4 or approximately 120 × 120mm samples may be provided for color, texture, construction and actual chemical-exposure evaluation.
POLYBETT can evaluate customized colors, sheet sizes, thicknesses, sink cut-outs, drilled holes and other fabrication requirements.
Provide the application, reagent list, concentrations, exposure time, thickness, sheet size, color, quantity, fabrication drawings, testing requirements and destination port.
The typical reference MOQ is approximately 200 panels, and production commonly requires around 25 days. Final terms depend on panel dimensions, thickness, color, quantity and current production capacity.
Send your laboratory application, chemical list, concentrations, required exposure time, panel dimensions, thickness and quantity. POLYBETT will evaluate suitable laboratory laminate options and provide sample and quotation information.
U121014
