Phenolic Compact Laminate vs Epoxy Resin for Lab Countertops: Spec Guide for Architects, Contractors & Public Procurement

Written by a 28-Year Veteran in HPL / Compact Laminate (Anti-Bette) Lab Surface Manufacturing

Compact Laminate Lab Benches

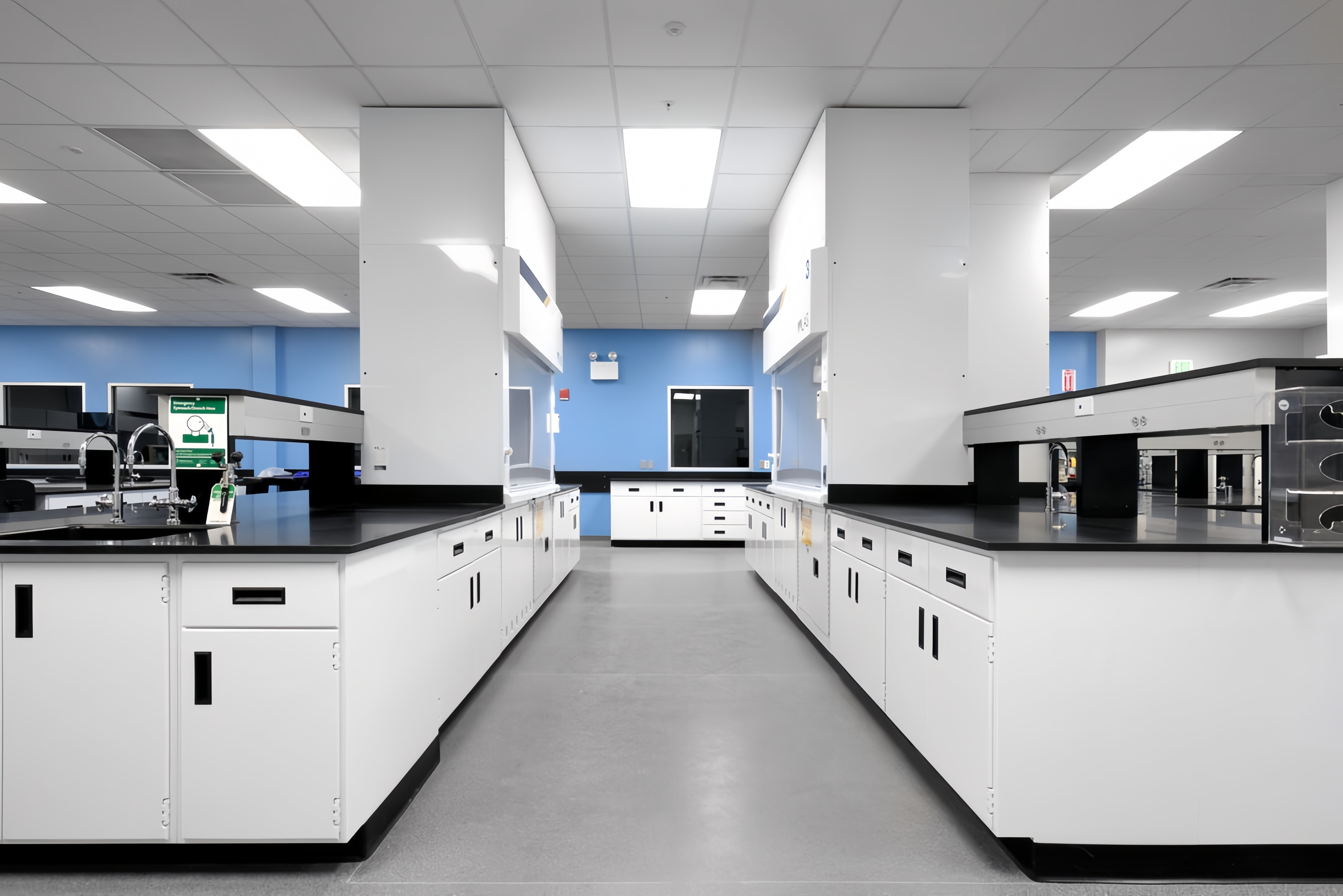

Modern phenolic lab workspace

Introduction – Why Material Spec Makes or Breaks Lab Project ROI

Lab countertops are the highest-wear asset in education, government R&D, industrial QC, and clinical labs. Architects, MEP contractors, school procurement teams, and public tender managers constantly face one core specification dilemma:

Solid phenolic compact laminate (HPL compact / anti-bette) or cast epoxy resin?

After 28 years producing lab-grade compact phenolic panels and supplying thousands of K12, university, municipal, and industrial lab projects globally, I’ve seen costly mis-specifications: overspending on epoxy for low-risk teaching labs, or premature phenolic failure in extreme chemical synthesis spaces.

This guide delivers data-backed comparisons, clear application matchups, total cost of ownership (TCO) breakdown, and tender-ready specification language tailored for your stakeholder roles.

Core Material Construction Basics

Phenolic Compact Laminate (Solid Core HPL / Anti-Bette)

Manufactured by compressing dozens of resin-impregnated kraft paper layers under 130–150°C high pressure into a 100% solid, self-supporting monolithic slab (no plywood/MDF substrate required). A melamine chemical-resistant top layer delivers sealed, non-porous performance standard to GB 24820, ASTM D543, and ISO lab furniture norms.

Standard lab thickness: 12mm / 16mm / 20mm / 25mm.

Cast Epoxy Resin Countertop

Poured, cured solid composite of epoxy resin, silica filler, and pigment, cast into single-piece slabs or seamless in-situ tops. Fully homogeneous through-body structure, built for extreme chemical and thermal exposure.

Standard lab thickness: 25mm–38mm, significantly heavier per square meter.

Head-to-Head Performance Comparison Table

Ideal Application Breakdown by Project Stakeholder

When to Spec Phenolic Compact Laminate (HPL / Anti-Bette)

Perfect fit for architects designing school campuses, municipal training labs, food & beverage QC, biology, microbiology, and light industrial testing:

1. K12 high school & vocational college chemistry/biology teaching labs (highest volume public procurement segment globally)

2. University undergraduate teaching spaces, prep rooms, storage workbenches

3. Food safety, water quality, environmental monitoring QC labs (diluted reagent workflows)

4. Wet washdown labs, humidity-prone coastal government facilities

5. Tender projects with fixed tight public budgets requiring compliant, long-life surfaces

6. Multi-story buildings where floor load capacity limits heavy epoxy slabs

7. Fast-track renovation/retrofit projects with compressed construction timelines

Contractor Win Tip: Compact laminate’s lighter weight cuts cabinet structural upgrade costs by 20–35% on average bench runs. Faster fabrication accelerates project handover for time-bound public tenders.

When to Spec Cast Epoxy Resin

Reserve epoxy exclusively for high-hazard, high-temperature core research zones:

1. Postgraduate organic chemistry, pharmaceutical synthesis labs with constant concentrated acid/solvent handling

2. Bunsen burner, molten sample, high-temperature hot plate permanent stations

3. Biosafety Level 2/3 labs requiring fully seamless monolithic tops with zero hidden contamination joints

4. Industrial chemical manufacturing R&D labs with extreme corrosive reagent cycles

5. Autoclave-adjacent work surfaces, metal melting, soldering heavy-duty stations

Procurement Note: Epoxy’s premium price is only justified where chemical/thermal risk cannot be mitigated by workflow protocols. Over-specifying epoxy across an entire university lab block wastes 40–60% of countertop capital budget.

Total Cost of Ownership (TCO) – Critical for Government & School Procurement

Public tender teams are mandated to evaluate full lifecycle cost, not just upfront material price.

1. Compact Phenolic TCO Advantage (Education 15-Year Lifecycle Model):

   • Lower raw material + installation + cabinet reinforcement costs upfront

   • No annual sealing/wax maintenance labor fees

   • Faster delivery reduces construction financing hold times for municipal projects

   • Modular panels allow single-bench replacement instead of full room teardown if one unit is damaged

2. Epoxy TCO Justification (High-Risk Research 20-Year Lifecycle):

   • Longer maximum lifespan in unforgiving chemical environments

   • Full refinish capability extends usable life by 3–5 years vs damaged phenolic tops

   • Seamless build reduces deep clean labor costs in GMP/regulated biotech spaces

Key Specification & Tender Writing Guidance

Phenolic Compact Laminate Spec Clauses (Ready for Tender Docs)

Lab countertop material shall be solid core phenolic compact laminate (anti-bette), minimum 25mm thickness, manufactured via high-pressure thermal fusion of phenolic-resin impregnated kraft paper layers. Surface melamine finish shall meet ASTM D543 chemical resistance for diluted lab reagents, ISO 17100 abrasion resistance, zero water absorption, fire class B1. Supplier shall provide 10-year material performance warranty, third-party SGS test reports, and full CNC fabrication for sinks, backsplashes, and bench cutouts.

Epoxy Resin Spec Clauses for High-Hazard Labs

Cast epoxy resin countertops, homogeneous through-body construction, minimum 25mm thickness, lab-grade formulation resistant to 98% sulfuric acid, 30% sodium hydroxide, and common organic solvents. Intermittent heat resistance ≥260°C, seamless monolithic joints, sand-refinishable surface, minimum 15-year manufacturer warranty for chemical and thermal performance.

Final Expert Verdict from 28 Years of HPL Lab Manufacturing

1. 80% of global education, municipal, and mid-tier industrial lab projects achieve optimal value with phenolic compact laminate. It balances safety, durability, speed, and budget for mainstream lab workflows—this is why compact HPL remains the global standard for school public tender builds.

2. Epoxy is a niche premium solution, not a one-size-fits-all upgrade. Only deploy where daily extreme heat/concentrated chemicals are non-negotiable operational requirements.

3. For architects/contractors: Always map reagent lists, heat equipment, floor load limits, and tender budget caps before locking material specs—this eliminates costly change orders mid-project.

4. For government/school procurement: Require certified lab-grade test datasheets and manufacturer factory warranties to avoid low-grade generic panels that fail compliance audits early.
