Wall Panels: How to Install Compact Laminate Wall Panels?

Wall panels are an essential component of modern interior design, offering both aesthetic appeal and functional durability. Among various types, Compact Laminate Wall Panels stand out due to their high strength, impact resistance, and easy maintenance. In this article, we will guide you through the installation process of Compact Laminate Wall Panels, ensuring a professional and long-lasting finish.

What Are Compact Laminate Wall Panels?

Compact Laminate Wall Panels are high-density panels made from layers of kraft paper impregnated with phenolic resin and compressed under high pressure. The outer surface is coated with a decorative paper layer, providing various textures and colors for aesthetic appeal. With a density reaching 1.5 g/cm³, these panels are highly durable, moisture-resistant, and ideal for interior wall cladding in both residential and commercial settings.

Key Features of Compact Laminate Wall Panels:

• High Durability: Resistant to impact, scratches, and wear.

• Moisture and Humidity Resistant: Suitable for high-humidity areas like kitchens and bathrooms.

• Easy to Maintain: Stain-resistant and easy to clean with mild detergents.

• Fire Resistance: Some varieties offer enhanced fire resistance for added safety.

• Variety of Finishes: Available in woodgrain, stone, solid colors, and metallic finishes.

Installation Methods for Compact Laminate Wall Panels

There are two primary methods for installing Compact Laminate Wall Panels: dry hanging and wet installation. Each method has its own benefits and limitations, which we will explore below.

1. Dry Hanging Method (Recommended)

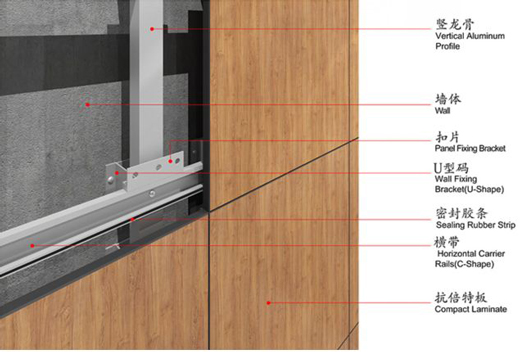

The dry hanging method involves installing wall panels onto a keel framework fixed to the wall. This method is highly recommended for large commercial projects or areas requiring frequent maintenance.

Steps for Dry Hanging Installation:

Step 1: Surface Preparation and Measurement

• Ensure that the wall surface is clean, dry, and level.

• Use a measuring tape and level to mark the wall where the panels and keels will be placed.

• Create a detailed layout plan to avoid misalignment during installation.

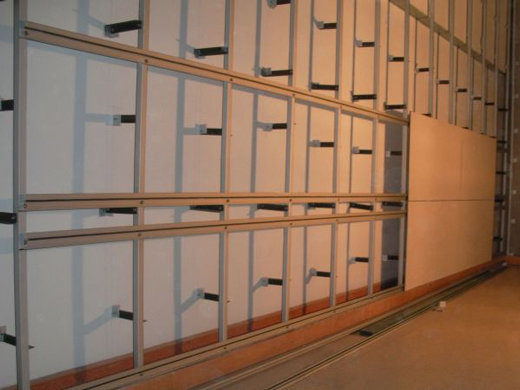

Step 2: Installing the Keel Framework

• Material Choice: Use aluminum alloy keels for durability and rust resistance. Wooden keels can be used for temporary or low-budget projects.

• Install vertical keels first, followed by horizontal keels, ensuring even spacing.

• Secure the keels firmly to the wall using expansion bolts or screws.

Step 3: Attaching the Compact Laminate Panels

• Start installation from the bottom up for better alignment.

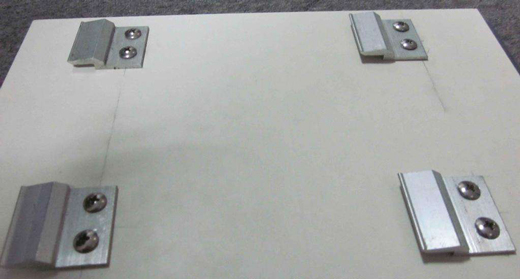

• Use screws or wall clips to secure the panels onto the keel.

• Ensure proper slot alignment between panels for a seamless finish.

Step 4: Finishing and Inspection

• Leave a 3-5mm expansion gap between panels to accommodate thermal expansion.

• If necessary, use metal strips or sealant to cover gaps for a polished look.

• Inspect for any loose panels or misalignment and make necessary adjustments.

2. Wet Installation Method

In the wet installation method, panels are directly adhered to the wall using construction adhesive. This method is suitable for smaller spaces or cost-conscious projects.

Steps for Wet Installation:

Step 1: Surface Preparation

• The wall must be clean, smooth, and dry.

• Remove any dust or debris to ensure maximum adhesion.

Step 2: Applying Adhesive

• Use a high-quality polyurethane or epoxy-based adhesive for a strong bond.

• Apply adhesive in a zigzag pattern or evenly spaced dots across the panel's backside.

Step 3: Fixing Panels to the Wall

• Press each panel firmly onto the wall, ensuring a tight and secure fit.

• Hold the panel in place for a few minutes to allow initial bonding.

Step 4: Sealing and Finishing

• Use a silicone sealant along panel edges to prevent moisture penetration.

• Allow 24-48 hours for the adhesive to cure completely before using the space.

Key Tips for Installing Compact Laminate Wall Panels

• Expansion Gaps: Always leave a 3-5mm expansion gap between panels to prevent warping.

• Corner Customization: Pre-fabricated corner pieces can help achieve a seamless transition at edges.

• Panel Handling: Avoid bending panels; handle them with care to prevent breakage.

• Weather Conditions: Install panels in a dry, stable environment to ensure proper adhesion.

• Regular Inspection: Periodically check for any loose panels or damage and perform maintenance as needed.

Why Choose Compact Laminate Wall Panels?

Durability and Longevity

Compact laminate wall panels are built to last, providing high impact resistance and low maintenance needs. Unlike traditional wall finishes, they do not require frequent repainting or refinishing.

Versatile Applications

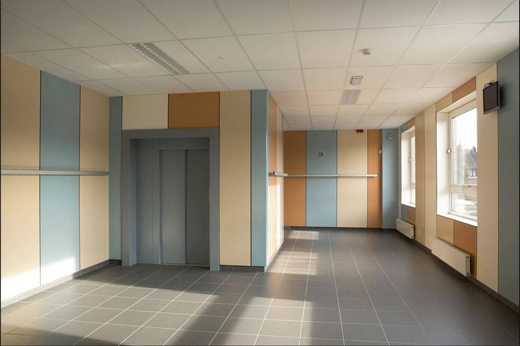

These panels are widely used in commercial spaces, residential interiors, public restrooms, hospitals, and educational institutions due to their durability and aesthetic flexibility.

Aesthetic Appeal

With a variety of textures, patterns, and colors, Compact Laminate Wall Panels can complement any interior design style, from modern minimalism to classic elegance.

Eco-Friendly Choice

Many compact laminate panels are made using sustainable materials and low-emission manufacturing processes, making them an environmentally responsible choice.

Conclusion

Installing Compact Laminate Wall Panels is a smart investment for both residential and commercial spaces. With their high durability, moisture resistance, and aesthetic flexibility, they offer a long-lasting, low-maintenance solution for wall coverings. By following the proper installation techniques, whether using dry hanging or wet installation, you can ensure a seamless and professional finish.
