Exterior HPL vs ACP vs Fiber Cement Board: Complete Facade Cladding Comparison Guide

1. Basic Material Composition Breakdown

Exterior Phenolic HPL

Homogeneous solid compact panel made by high-pressure hot-pressing multiple layers of kraft paper saturated with phenolic resin, with dedicated UV-stabilized melamine overlay for outdoor use (6–12mm standard rainscreen thickness). Fully dense throughout, no layered substrate separation risk.

ACP(Aluminum Composite Panel)

Two thin aluminum alloy skins bonded to a central core; two core types:

1. PE polyethylene core (flammable, budget grade)

2. Mineral-filled fire-resistant core (limited fire performance, higher cost)

   PVDF coating on aluminum surface for UV protection.

Fiber Cement Board

Mixture of cement, silica sand, cellulose reinforcing fibers, autoclaved under high temperature and pressure to form rigid inorganic panels; surface finished with factory paint or coating, porous mineral internal structure.

Exterior UV HPL Panel

2. Side-by-Side Full Performance Comparison Table

3. Detailed Pros & Cons of Each Cladding Material

3.1 Exterior UV Stabilized Phenolic HPL

Advantages

1. Balanced all-round performance for hot desert, coastal and tropical climates; integrated anti-UV layer avoids rapid fading in GCC intense sunlight.

2. B1 fire rating meets public building codes (hospitals, schools, malls) without extra fire modification.

3. Zero water absorption, anti-mildew and anti-salt fog; ideal for seaside resort facades.

4. High impact resistance, anti-graffiti optional finish for park, stadium and public infrastructure.

5. Rich decorative textures: realistic wood/marble grain, matte anti-fingerprint, custom printed brand patterns.

6. Self-supporting solid panel, no substrate needed; clean cutting without easy chipping with proper tools.

7. Long service life without periodic repainting, lowest total lifecycle cost for mid-long term projects.

Disadvantages

1. Higher upfront material cost than standard PE-core ACP.

2. Custom color/texture orders require longer production lead time than stocked ACP.

3. Thicker panels increase transport weight vs ultra-light ACP.

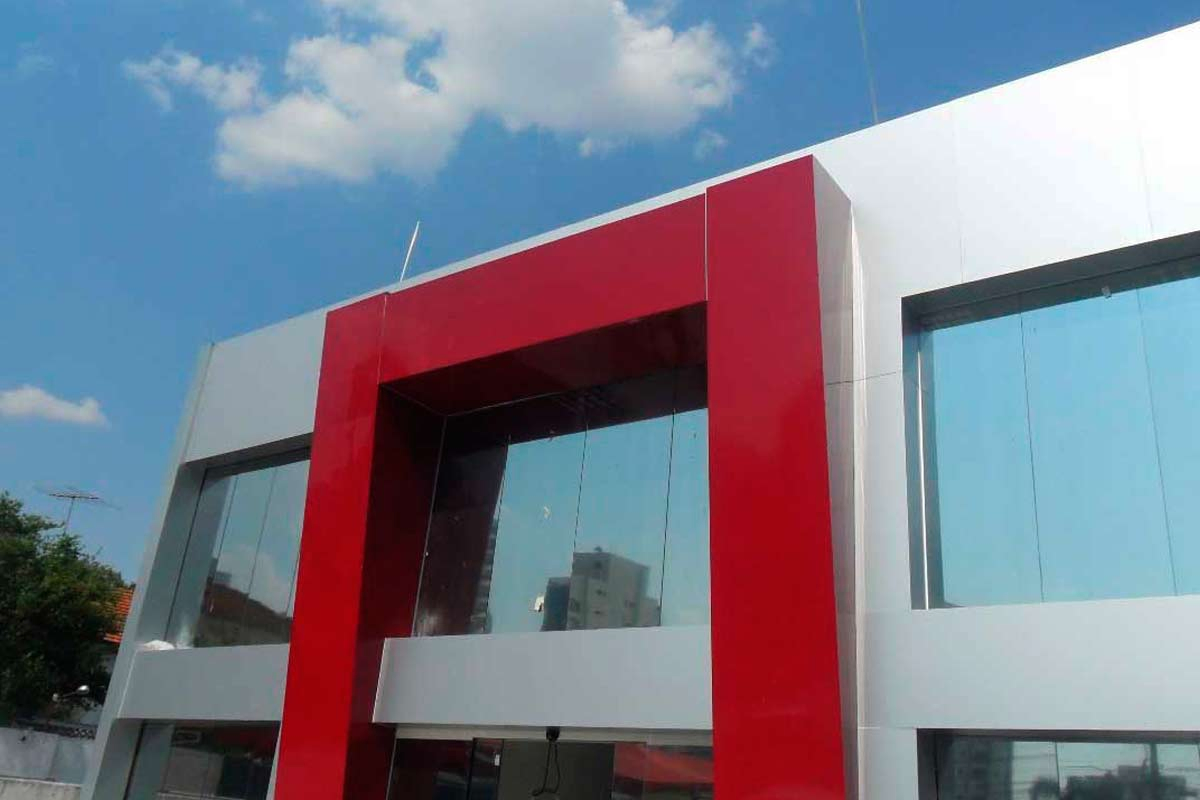

ACP wall panel

3.2 Aluminum Composite Panel (ACP)

Advantages

1. Ultra-lightweight, greatly reduces building structural load and subframe material cost.

2. Lowest initial purchase price among three materials, fast mass production delivery.

3. Excellent bending performance, can form curved facade, column wrap and special geometric shapes.

4. Wide stocked solid color options for simple minimalist commercial buildings.

5. Fast installation, simple cutting and on-site fabrication for tight construction schedules.

Disadvantages

1. Severe fire safety defect: common PE core melts and drips flammable liquid, banned for many high-rise public buildings by UAE/EU municipal codes.

2. Thin aluminum surface dents easily from sandstorm, trolley or construction impact; scratch leads to hidden core corrosion.

3. Large thermal expansion in 50°C GCC summer heat; improper gap design causes panel bulging.

4. Limited texture depth; cannot replicate natural wood or stone realistic grain like HPL.

5. Once PVDF coating peels, full panel replacement is required (no local touch-up solution).

3.3 Autoclaved Fiber Cement Board

Advantages

1. A1 fully non-combustible inorganic material, highest fire safety standard for industrial and high-rise fire partition facades.

2. Ultra-long core service life up to 50 years, resistant to rot, insect and mold.

3. Minimal thermal expansion, stable shape under extreme temperature swings.

4. Raw board cost is competitive for large mass housing projects.

5. Sandstorm abrasion resistance better than ACP, suitable dry inland desert industrial parks.

Disadvantages

1. Extremely heavy, requires reinforced aluminum or steel subframes, raising installation labor and structural engineering costs.

2. Brittle, easy to crack during transport, cutting and construction impact; high site breakage waste rate.

3. Porous mineral surface: coastal salt air causes white efflorescence stains; paint fades quickly, mandatory repaint cycle every 5–10 years.

4. Limited decorative performance, only flat painted textures, no high-definition stone/wood grain.

5. Water splashing areas (poolside, waterfront buildings) need extra waterproof coating reinforcement.

4. Climate Adaptation: GCC Desert / Coastal / Tropical Rainy Zones

1. GCC Inland Desert (UAE, Saudi Inland)

• Best Choice: Exterior phenolic HPL (enhanced UV anti-fade grade)

• Alternative: Fiber cement board (dry inland no salt fog, fire-safe for schools)

• Not Recommended: Standard PE-core ACP (heat expansion, fire risk for public buildings)

2. GCC Coastal / Seaside (Dubai Marina, Qatar, Bahrain)

• Best Choice: Marine-grade exterior phenolic HPL (zero water absorption, anti-salt spray)

• Avoid: ACP (scratch corrosion) & fiber cement (salt efflorescence stains)

3. Tropical High Rainfall Southeast Asia (Malaysia, Indonesia, Thailand)

• Best Choice: Exterior phenolic HPL (anti-mildew, no swelling under continuous rain)

• Secondary: FR-core ACP (only low-rise private villas)

• Avoid: Fiber cement (porous absorbs rainwater, frequent paint peeling)

4. Cold Temperate / Central Asia (Russia, Kazakhstan)

• Best Choice: Fiber cement board (low thermal expansion, A1 fire resistance for industrial parks)

• Alternative: Low-temperature stable exterior HPL

5. Installation System Differences & Construction Cost

Exterior Phenolic HPL

• System: Ventilated rainscreen with aluminum Z-bracket + hat channel subframe; fixed central hole + sliding peripheral holes to absorb thermal expansion.

• Labor Cost: Medium; easy cutting, no heavy lifting; concealed or visible fastener options for design flexibility.

• Extra Cost Item: Custom UV test certificates for municipal tender approval.

ACP

• System: Light aluminum subframe, adhesive or mechanical fixing; large expansion gaps mandatory for hot climates.

• Labor Cost: Lowest; lightweight, bendable, prefabricated curved components available.

• Extra Cost Item: Fire-resistant core upgrade fee for public building compliance.

Fiber Cement Board

• System: Heavy-duty thick galvanized steel/aluminum reinforced subframe; large panel anti-crack corner trims required.

• Labor Cost: Highest; heavy panels need multiple workers, high breakage waste compensation.

• Extra Cost Item: Periodic post-construction repainting budget reserved.

6. Ideal Project Matching Guide

Pick Exterior Phenolic HPL If Your Project Is:

• Hospital, school, clinic, public restroom facade (B1 fire + antibacterial optional, hygienic surface)

• High-rise commercial office, shopping mall rainscreen cladding

• Coastal resort, beach club, swimming pool outdoor wall

• Stadium, park, municipal public facility (anti-graffiti, impact resistant)

• Luxury villa facade requiring wood/marble textured decorative effect

Pick ACP If Your Project Is:

• Low-rise private villa, small retail shop front (budget tight, simple flat color design)

• Temporary commercial buildings, signage column wrapping

• Curved facade decorative elements with limited fire code restrictions

  Note: Not allowed for high-rise public buildings in UAE, Saudi Arabia due to PE core fire hazard.

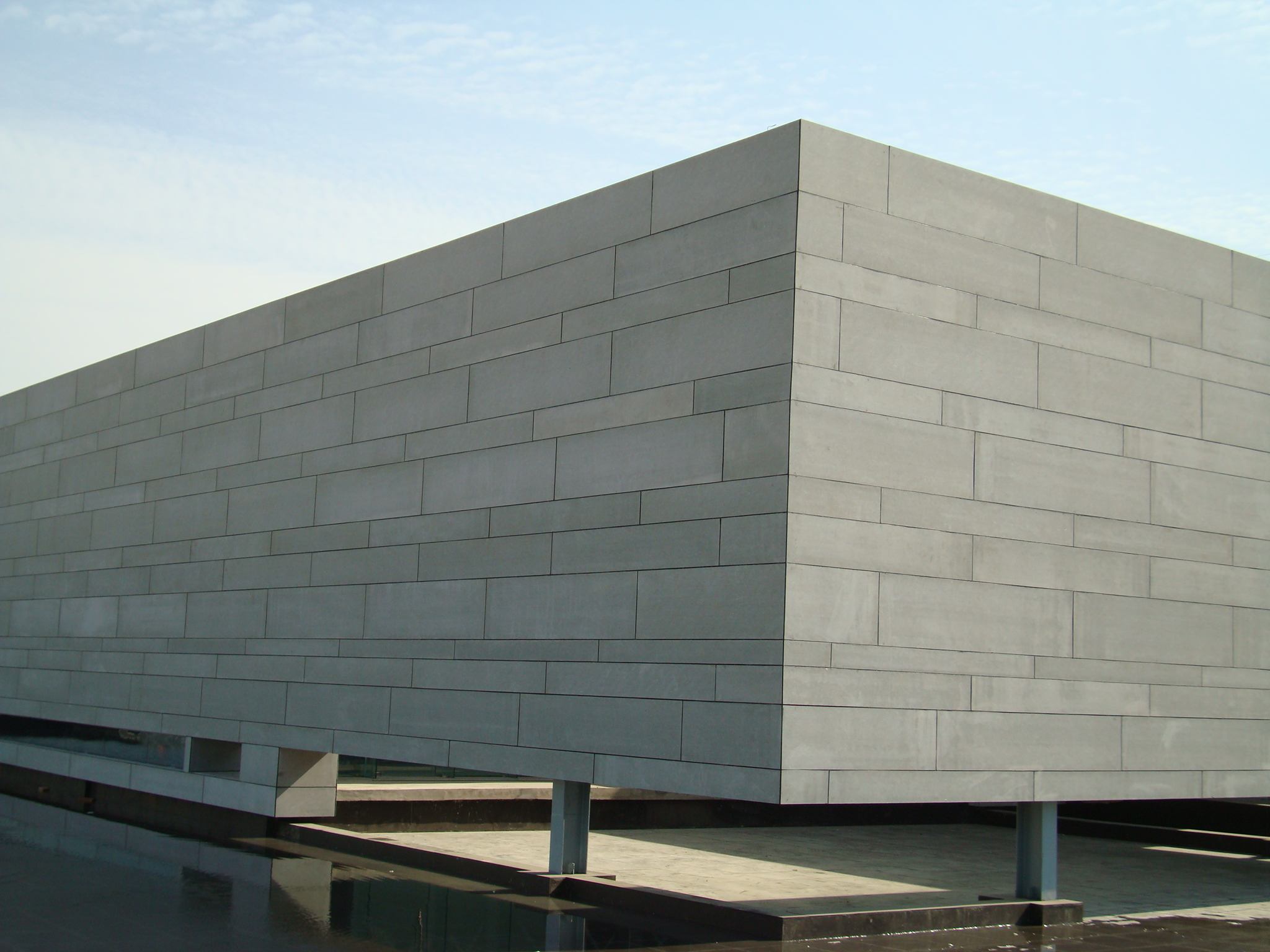

Fiber cement wall panel

Pick Fiber Cement Board If Your Project Is:

• Industrial warehouse, factory exterior wall (A1 non-combustible fire safety priority)

• Inland dry climate mass affordable housing complex

• Fire partition wall facades, underground station public walls

• Low-budget rural residential siding without high decorative requirements

7. Long-Term Lifecycle Cost Analysis (20-Year Project Cycle)

1. Exterior Phenolic HPL: Mid upfront cost + zero repaint + minimal annual cleaning → lowest total 20-year expenditure (best ROI for institutional commercial projects).

2. ACP: Low initial material cost + annual sealant inspection + possible partial panel replacement after 12 years → medium total cost, high hidden risk for public buildings.

3. Fiber Cement Board: Mid raw board cost + expensive reinforced subframe + repaint every 8 years + crack repair fees → highest full lifecycle expenditure.

8. Final Material Selection Cheat Sheet

1. Prioritize fire safety + coastal humidity + decorative aesthetics → Exterior Phenolic HPL

2. Ultra-tight upfront budget, low-rise private villa, curved simple facade → ACP (FR core upgrade if required)

3. Industrial factory, dry inland area, mandatory A1 non-combustible fire code → Fiber Cement Board

9. FAQ for Architects & Facade Contractors

Q1: Which material passes UAE Civil Defence & ESMA public building inspection?

A: Exterior B1-rated phenolic HPL fully complies; PE-core ACP is rejected for high-rise hospitals/schools; fiber cement board passes fire inspection but requires extra anti-salt treatment for coastal Dubai projects.

Q2: Can fiber cement board be used for seaside resort facades?

A: Not recommended. Long-term sea salt fog penetrates porous fiber cement and creates permanent white efflorescence stains, requiring frequent full wall repainting. Marine-grade phenolic HPL is zero-absorption and maintenance-free alternative.

Q3: Why is ACP banned in many GCC high-rise public projects?

A: Standard polyethylene core ACP melts rapidly under fire, releasing flammable liquid that accelerates flame spread and toxic smoke, violating GCC public building fire safety regulations. Only mineral-filled FR ACP can be used for limited low-rise applications.

Q4: Which material has the best anti-sandstorm performance for Saudi inland cities?

A: Exterior phenolic HPL dense solid surface resists sand abrasion without chipping; fiber cement will slowly erode and crack under long-term wind-blown sand; ACP aluminum skin dents easily.

Q5: Do all three materials support ventilated rainscreen facade systems?

A: All three can be installed as rainscreen, but phenolic HPL has dedicated standardized outdoor hardware; fiber cement needs heavier support frames; ACP requires wider thermal expansion gaps to avoid bulging in desert heat.
