Premium Exterior HPL Panels | Ventilated Facade Cladding System

Weather Stable, UV & Scratch Resistant HPL for Architecture Façade, Balcony & Sunshade
UV Color Stable | Self-Clean Surface | All Decor Series | Custom Size & Finish
SGS Weather Test Certified | BIM Files Available | Global Architectural Project Supply | Low Maintenance

WHAT MAKES US DIFFERENT

Why Our Exterior HPL Outperforms Standard Facade Panels

  • 1

    High-Density UV Stabilized Surface Treatment



    Engineered with high-density UV protection, our HPL keeps its color and finish stable even under extreme sun exposure—no chalking, no dulling, no compromise.


  • 2

    Full Phenolic Core, Zero Delamination Risk


    A fully cured phenolic core delivers true structural integrity. No bonding layers. No delamination. Just long-term stability you can trust.

  • Customized-Design
    Flexible Design & Full Compatibility with Cladding Systems

    Compatible with all major cladding systems and ventilation structures. Flexible to fabricate, precise to install, and free for architectural expression.

  • Self-Owned-Factory

    Factory Direct Supply with Stable Lead Time


    Direct-from-factory supply ensures stable quality, predictable lead times, and scalable production for every project size.


PRODUCTS CENTER

Polybett Exterior HPL Wall Panel

WIDE RANGE COLORS

Complete Color Decor Collections For Exterior Projects

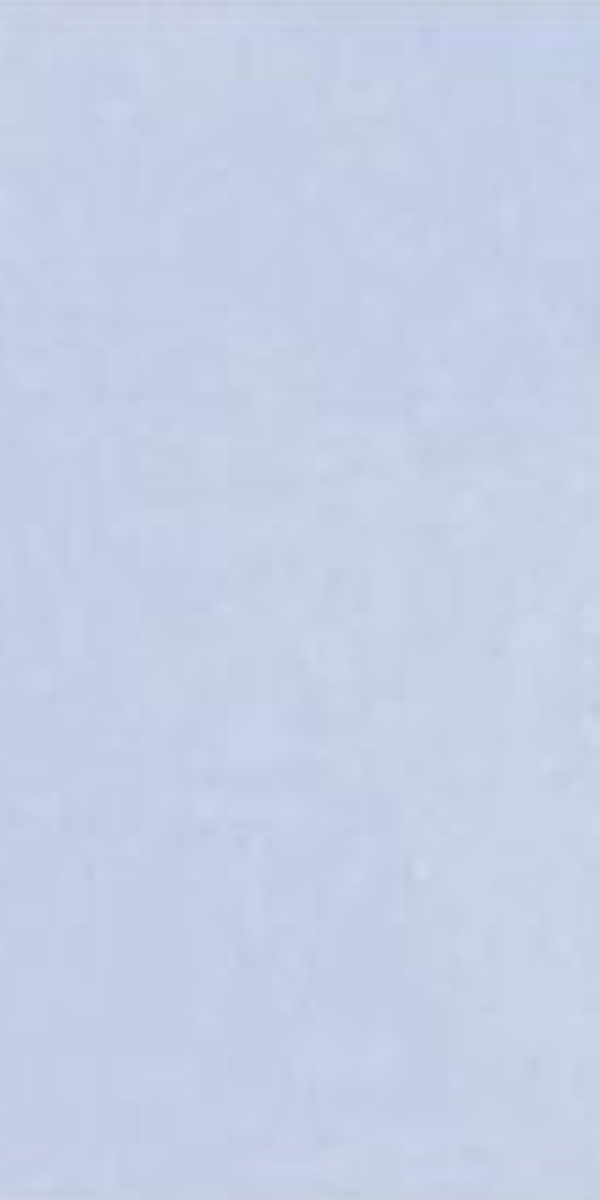

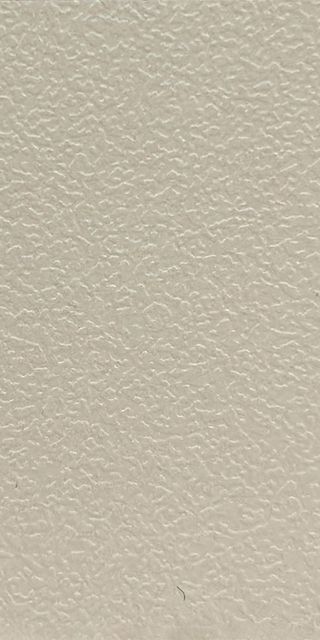

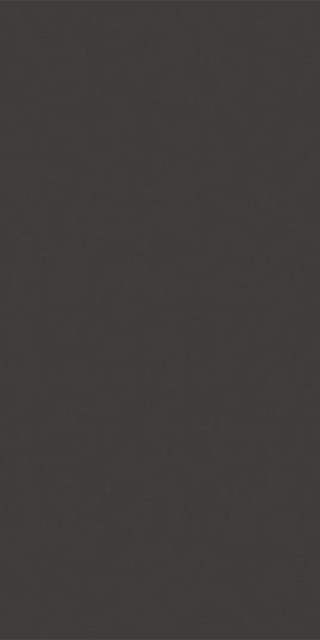

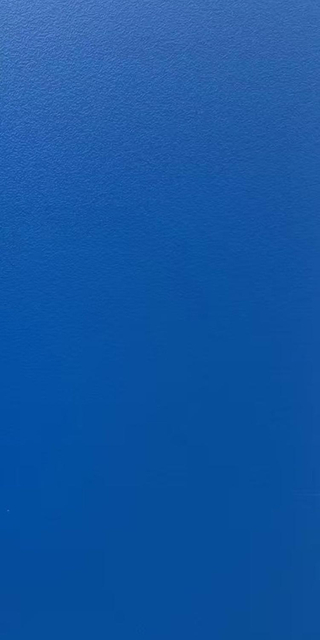

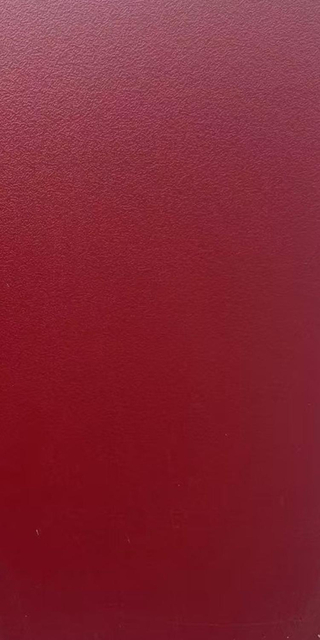

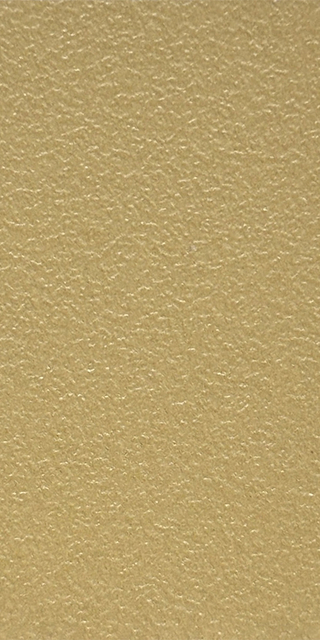

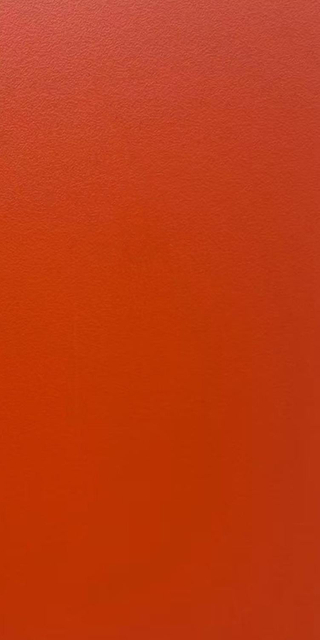

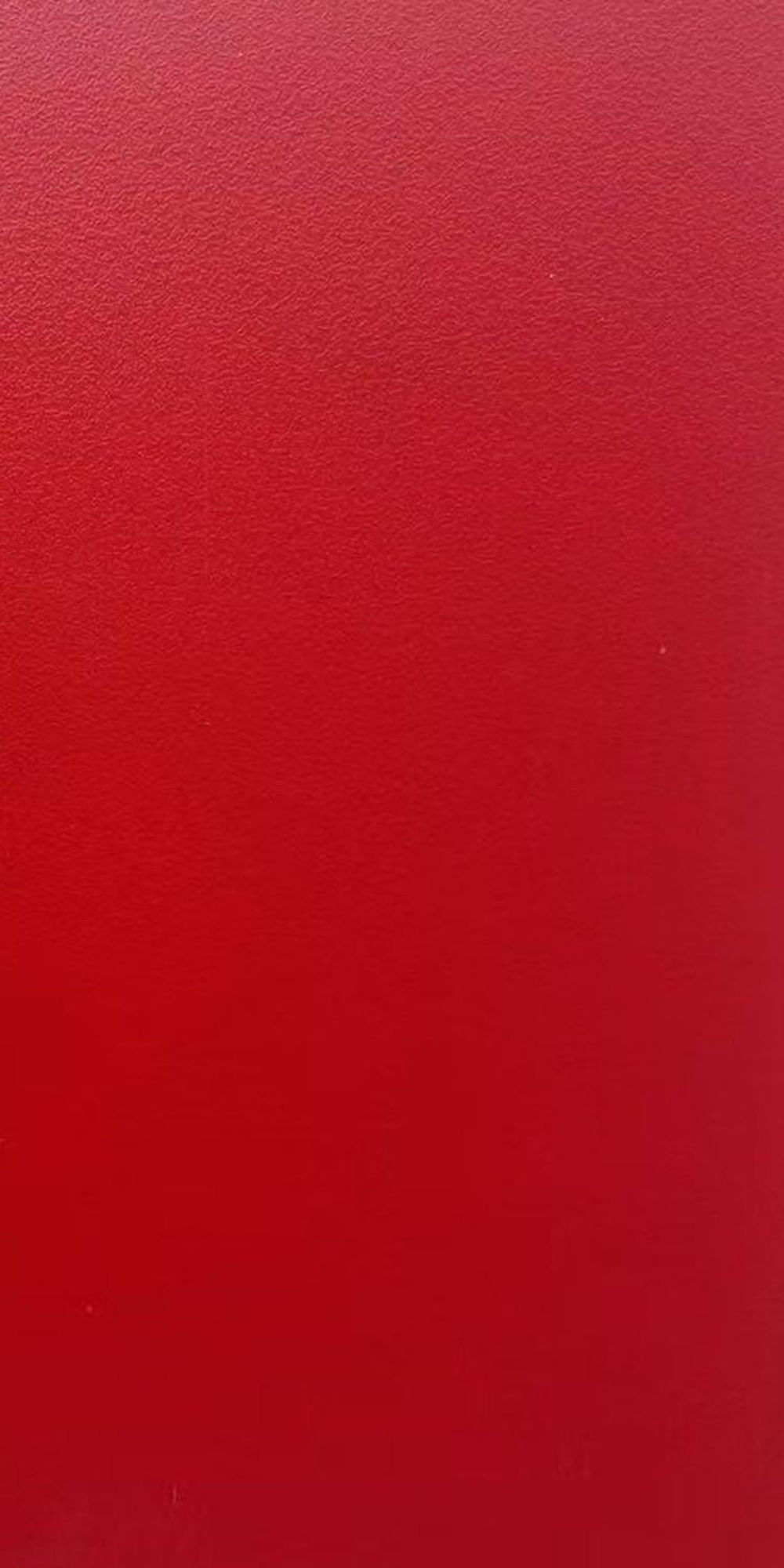

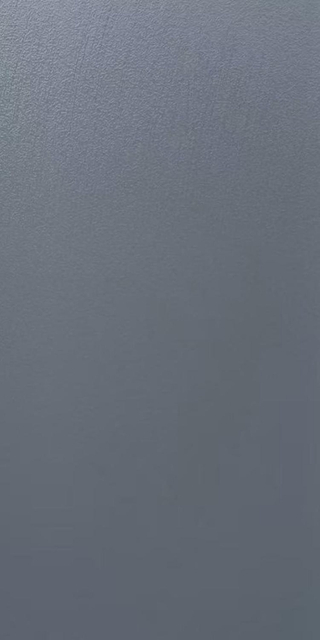

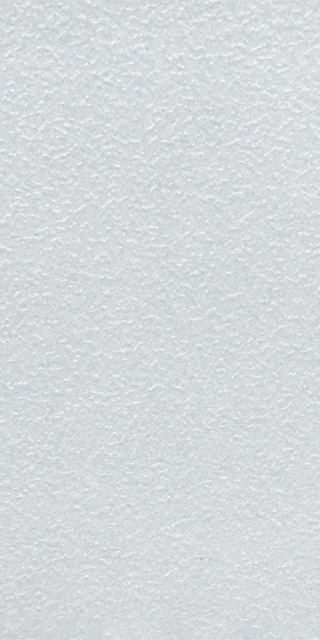

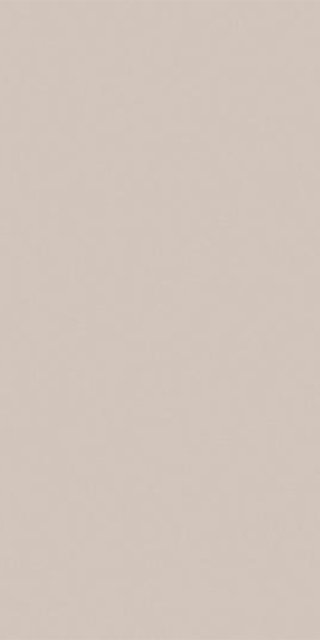

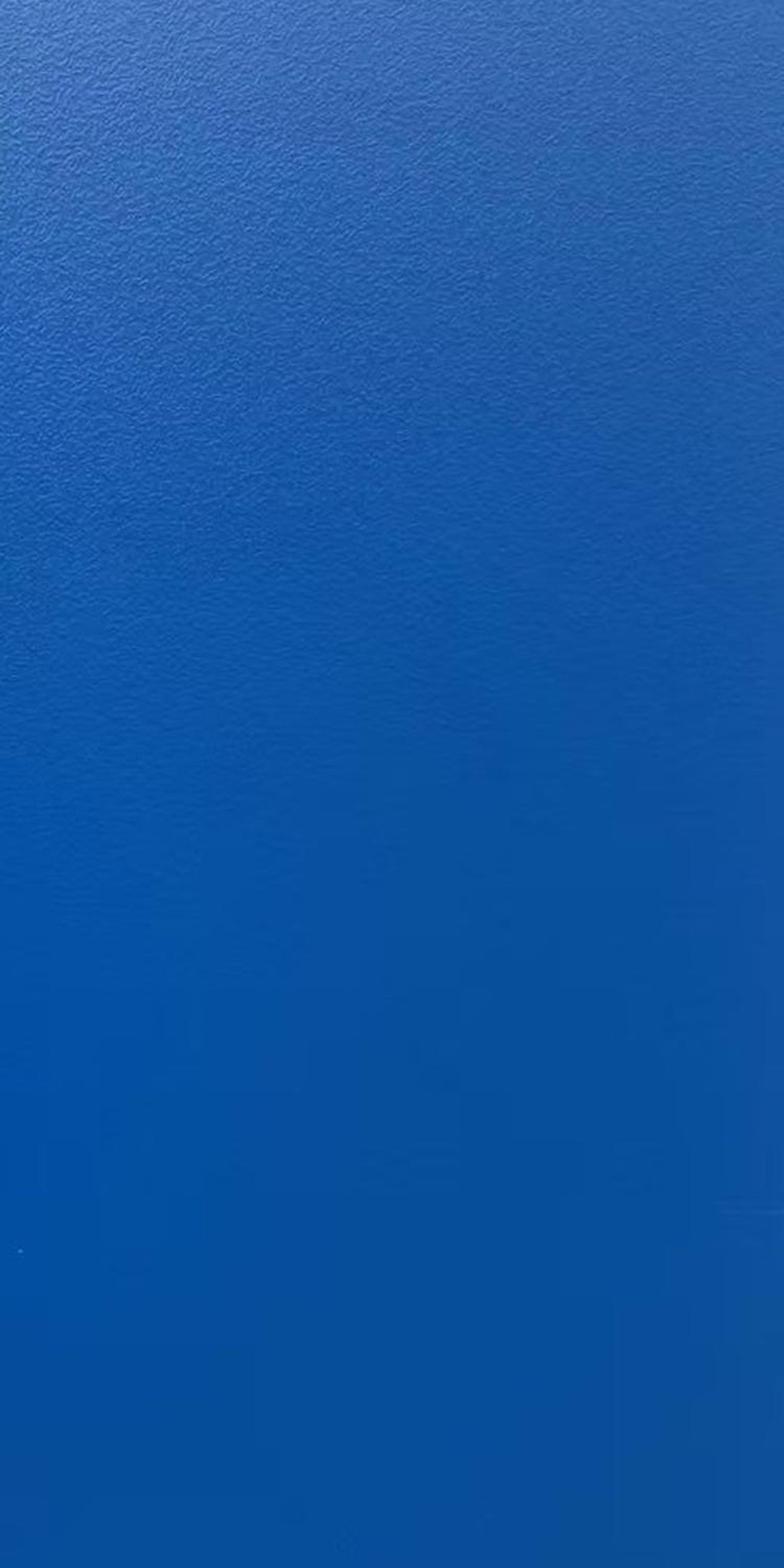

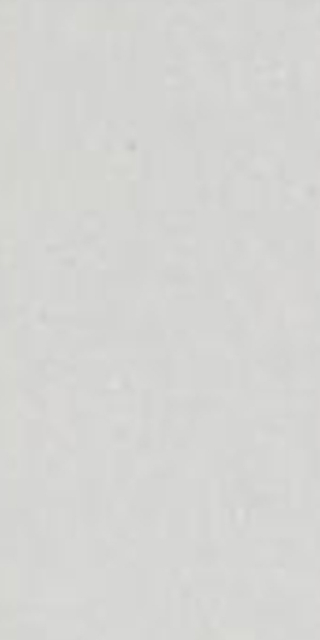

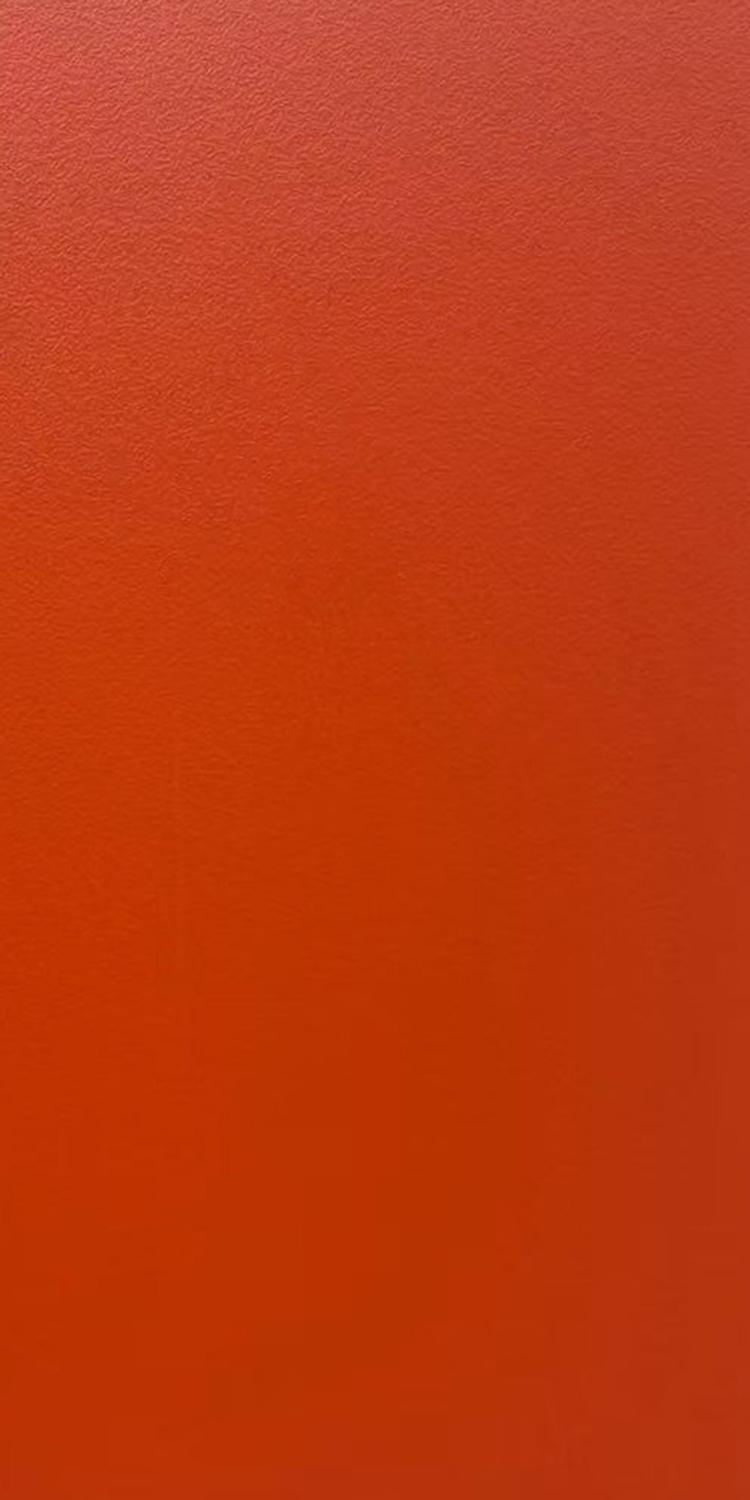

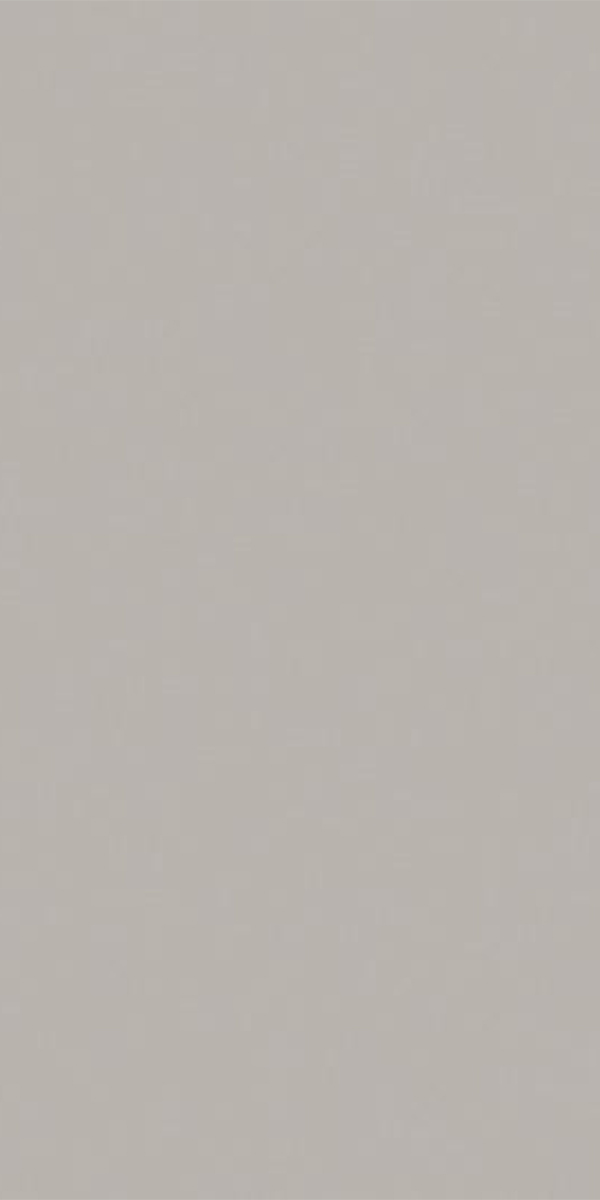

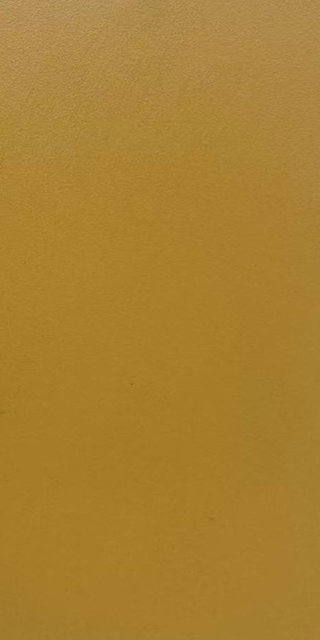

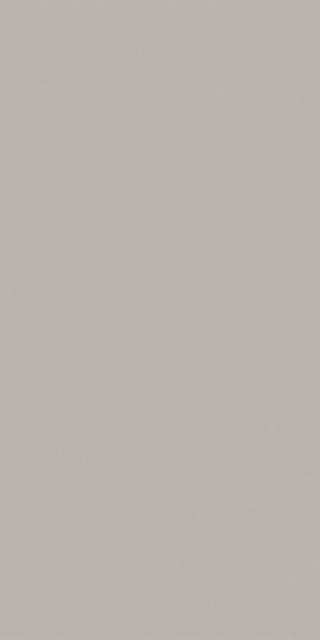

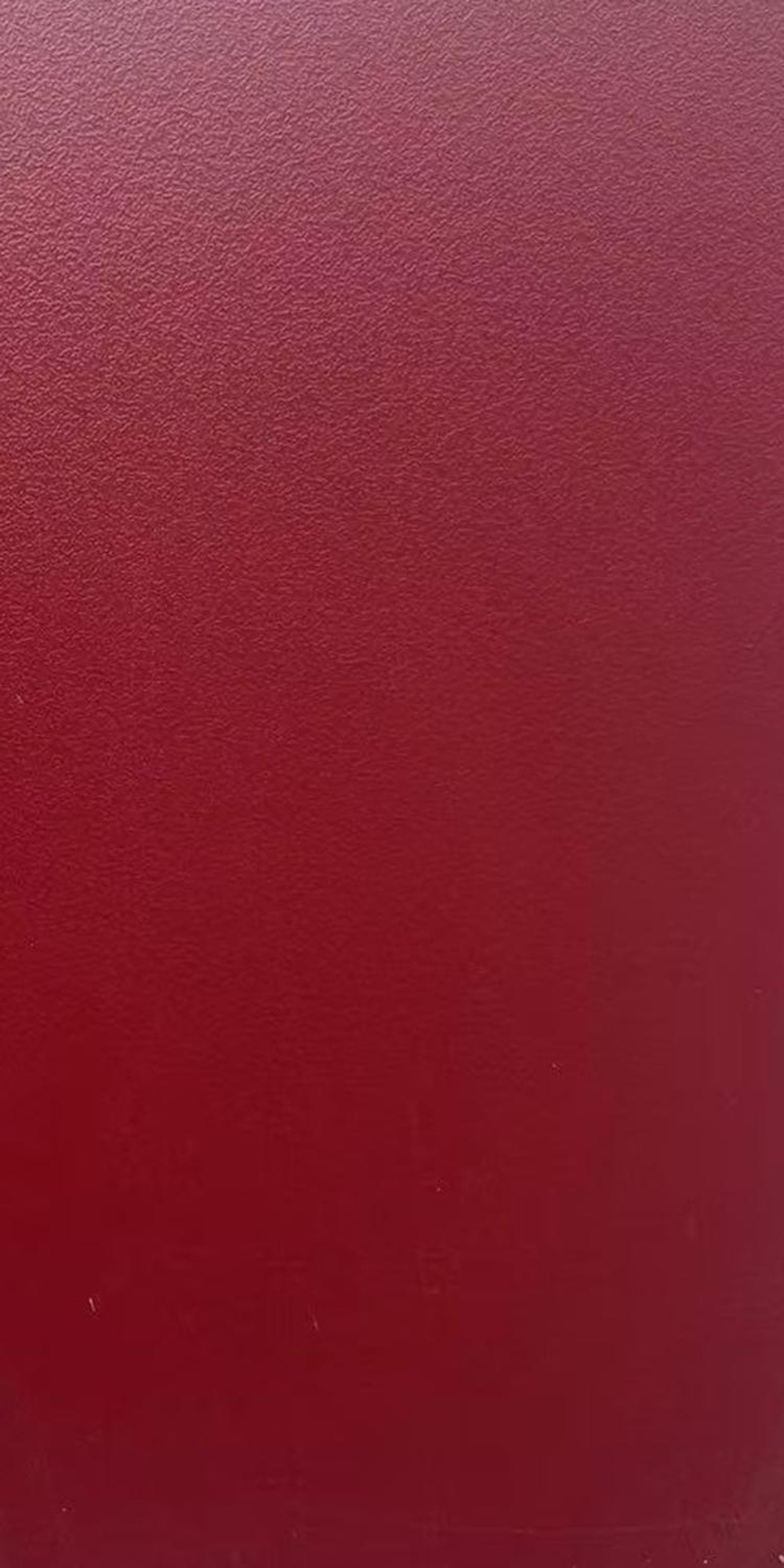

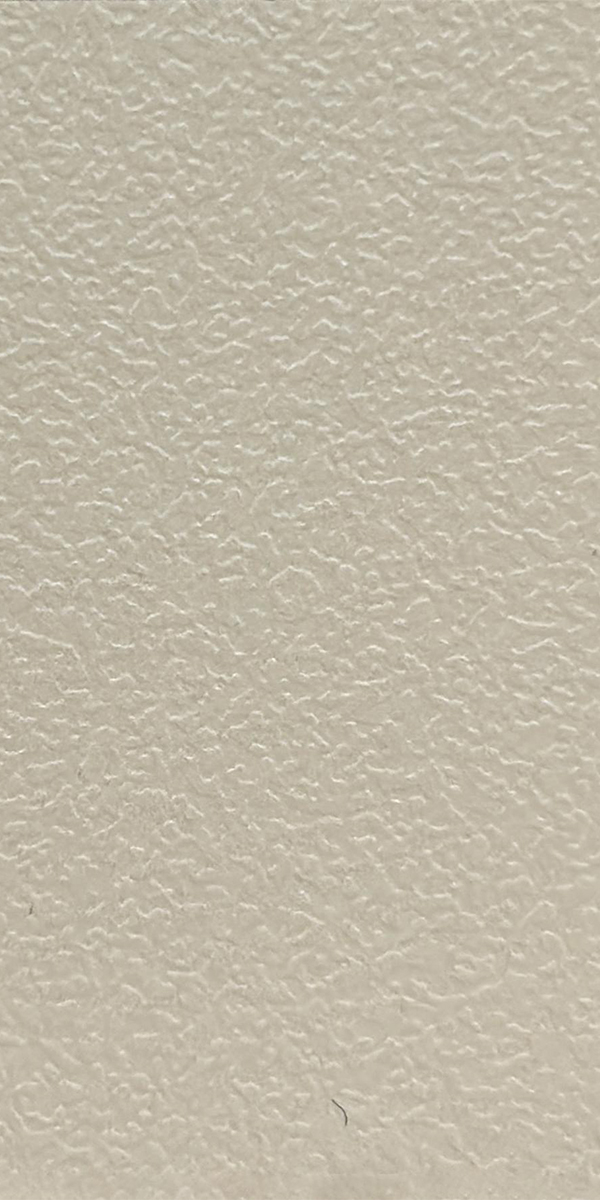

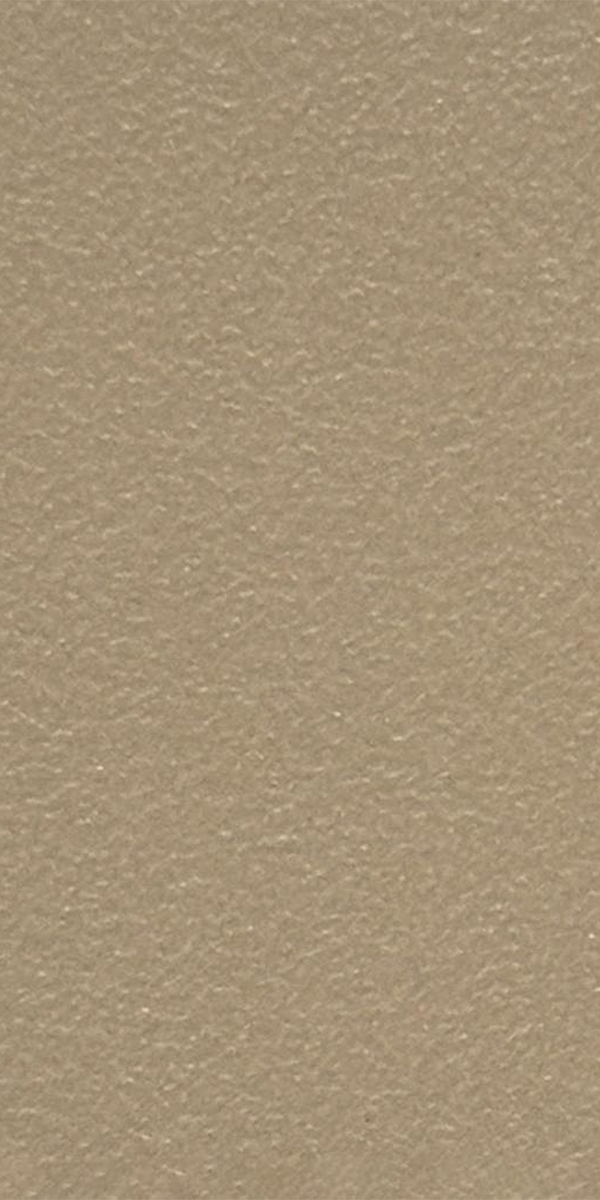

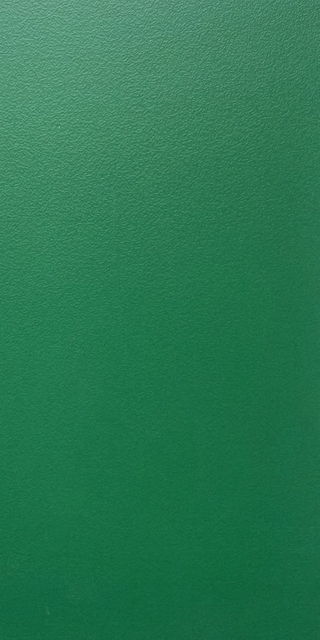

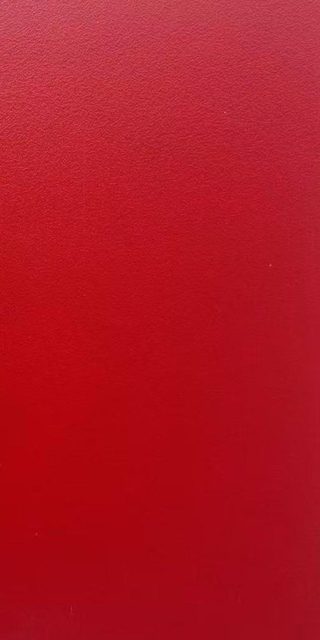

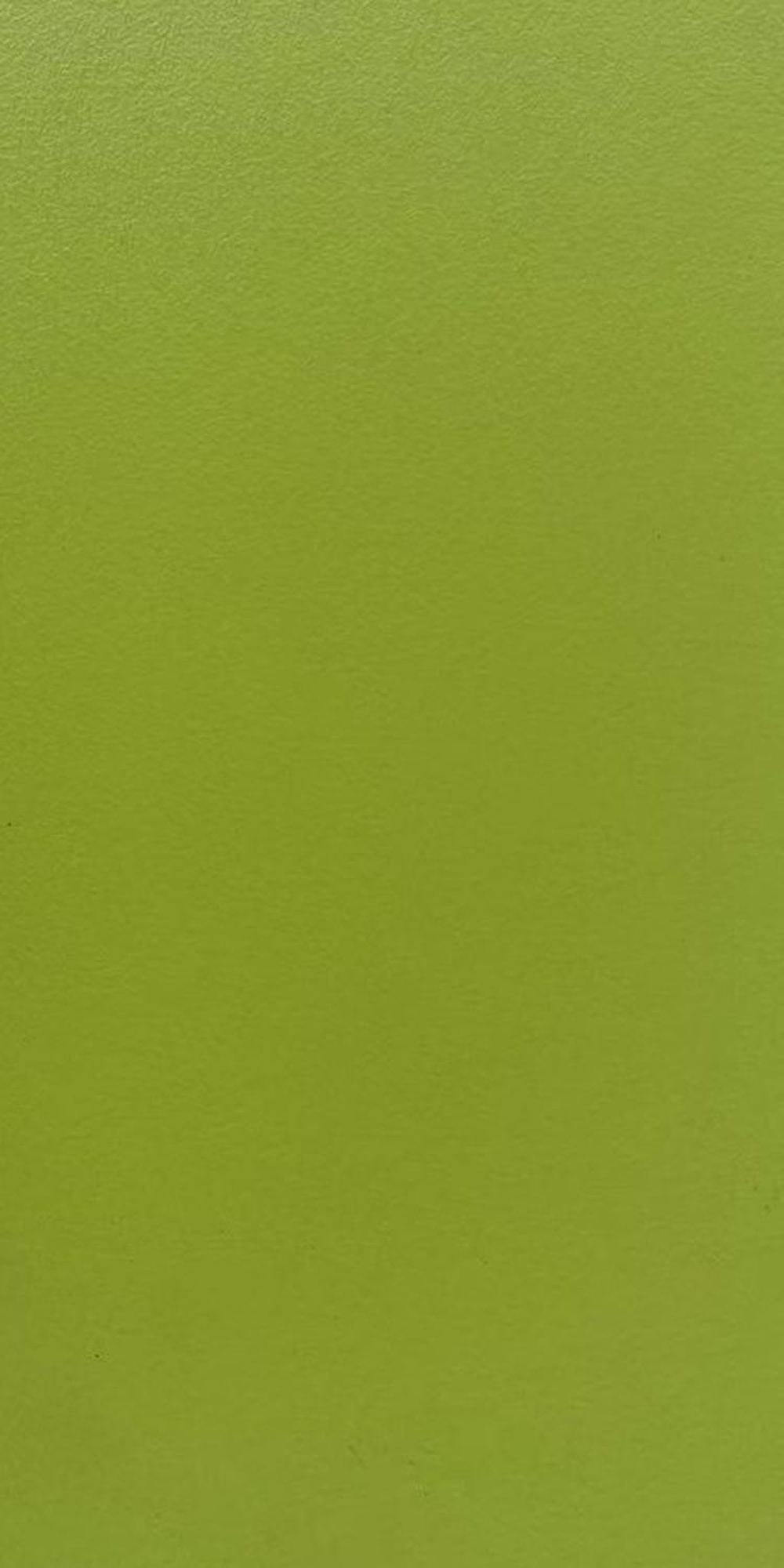

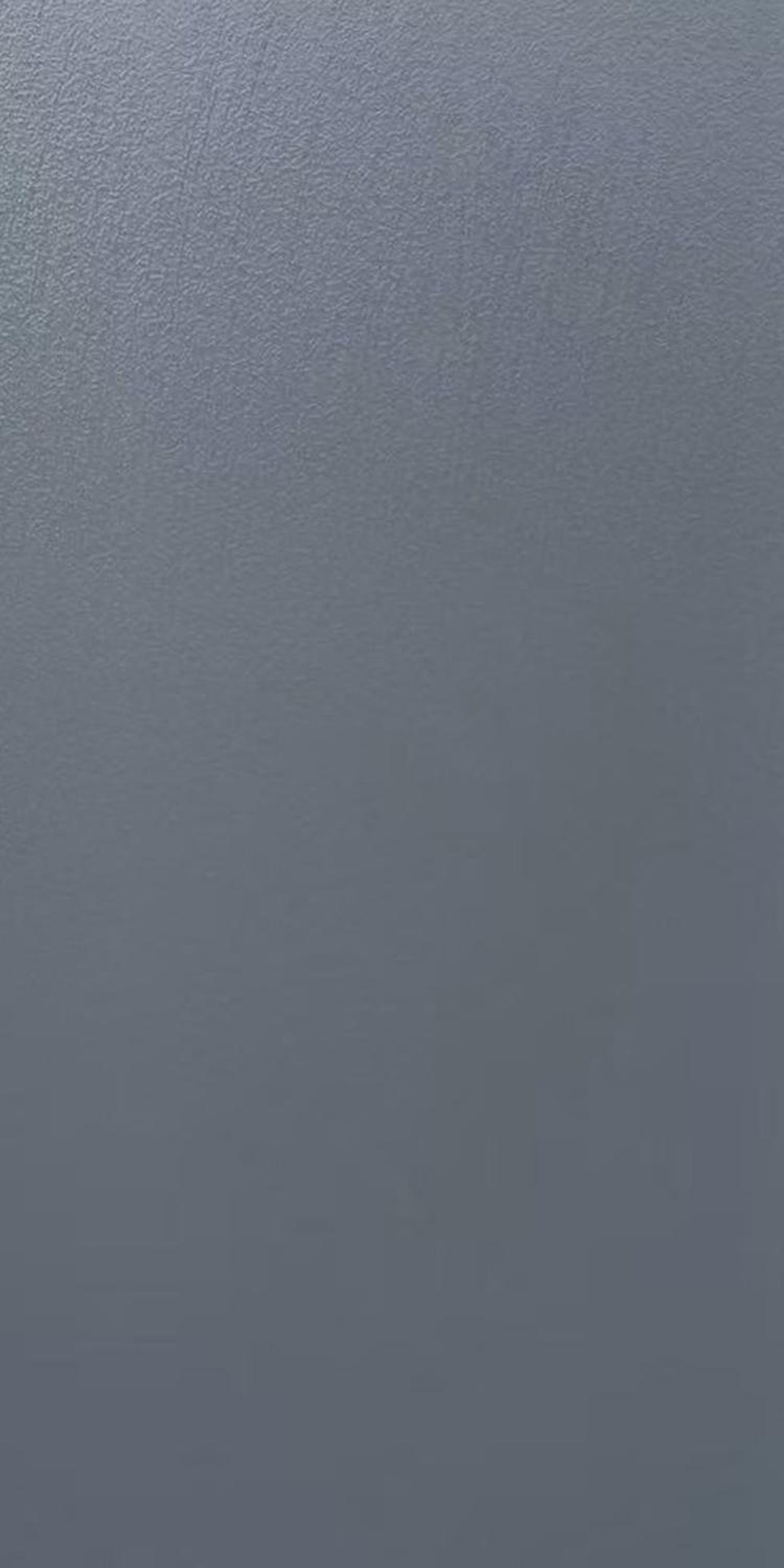

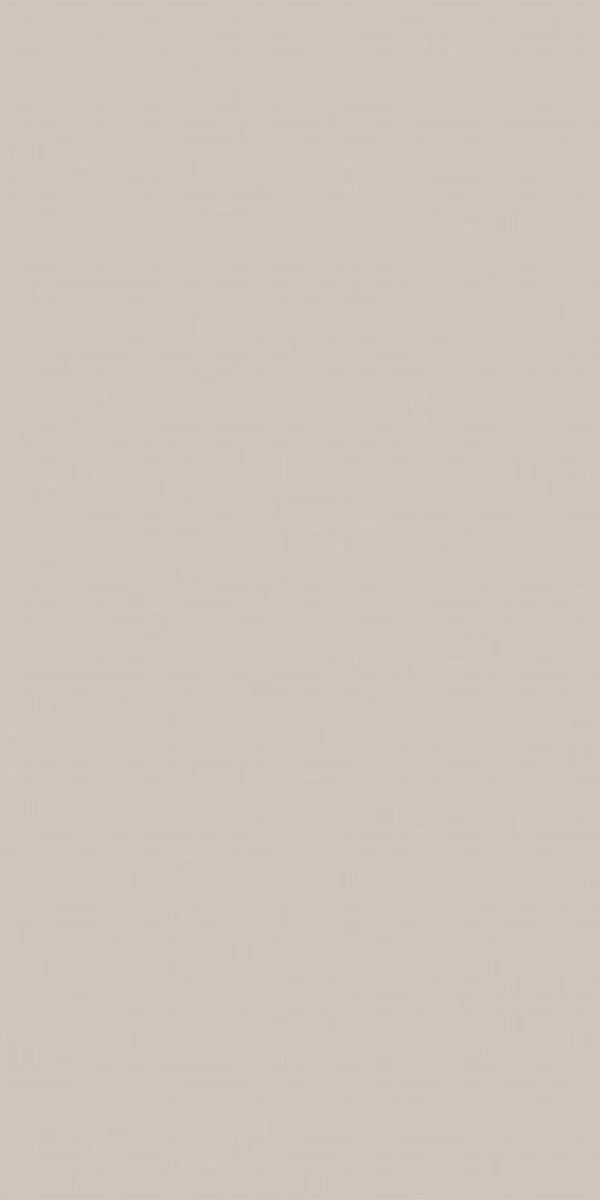

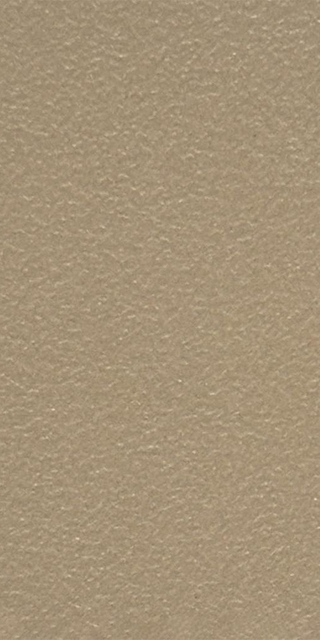

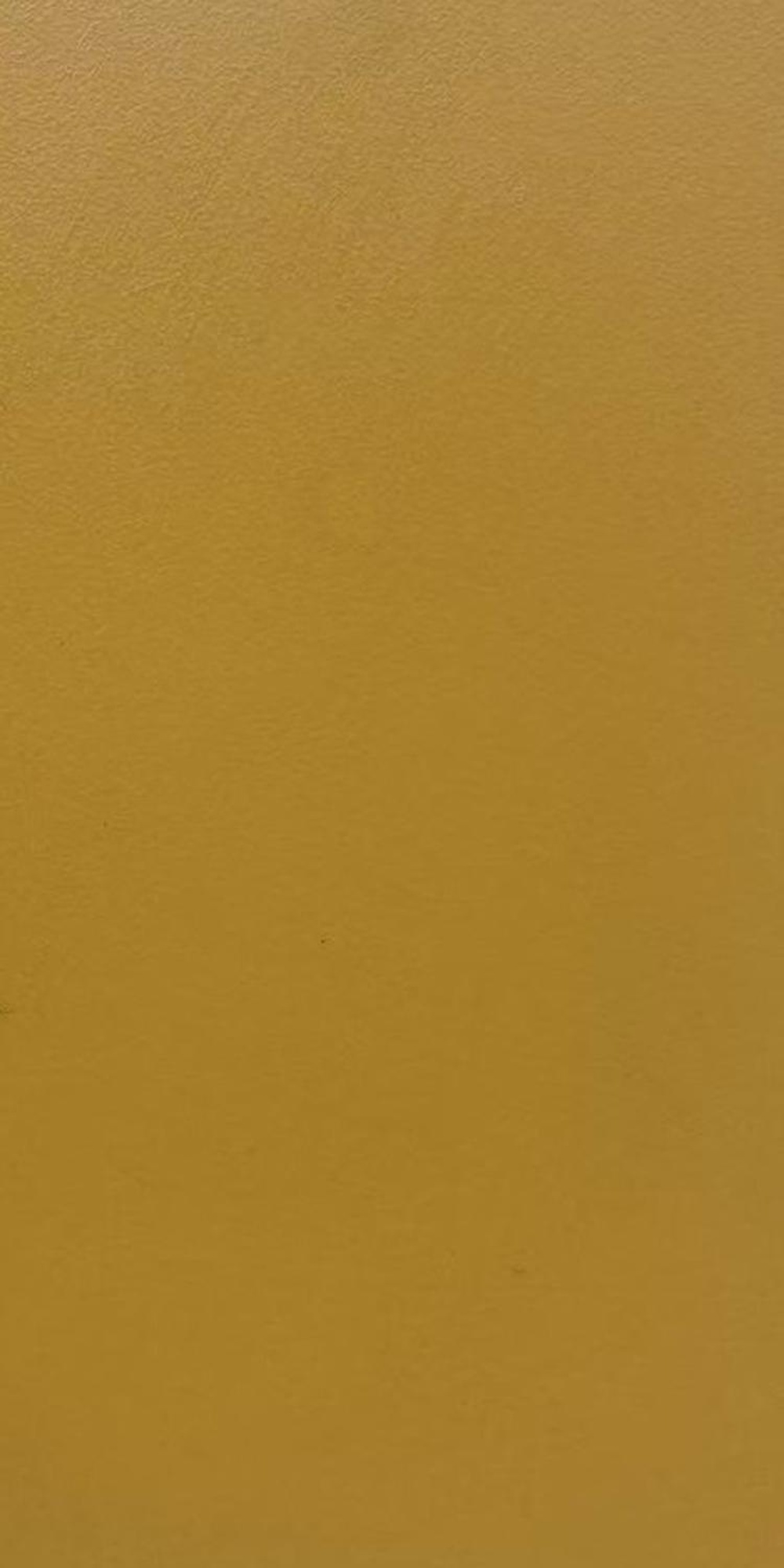

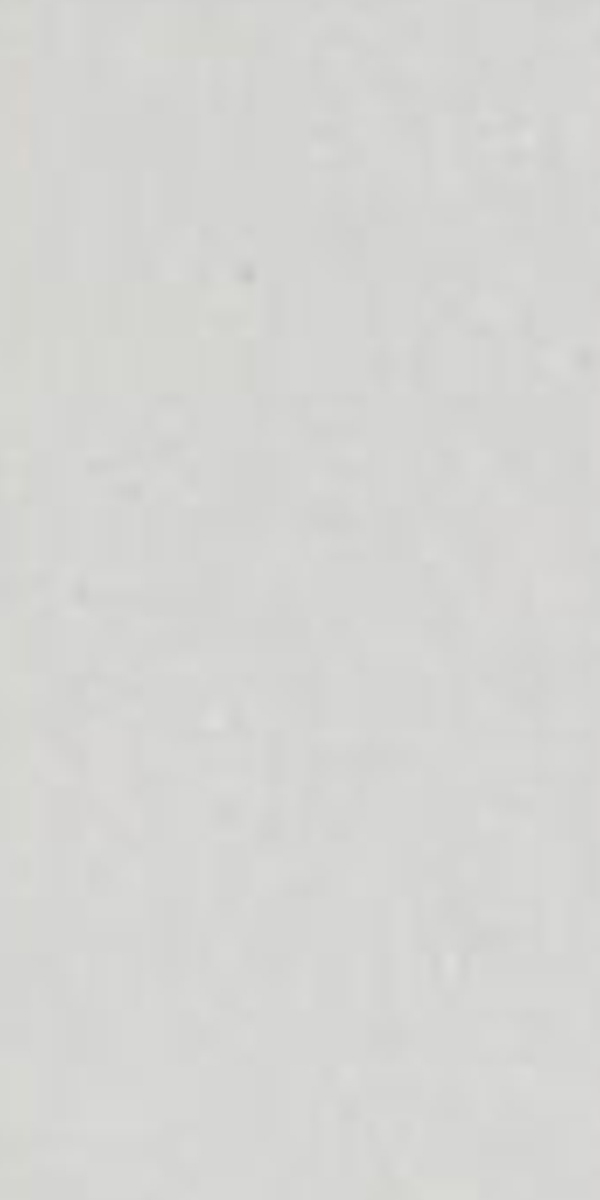

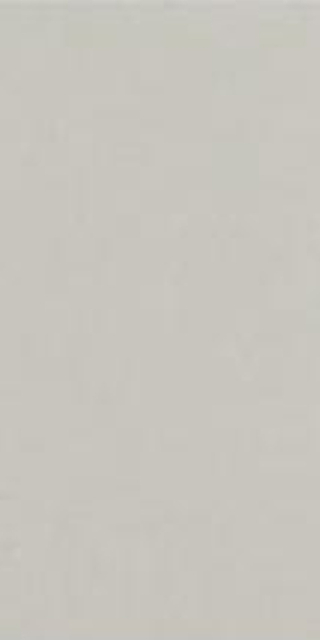

Solid Color Designs

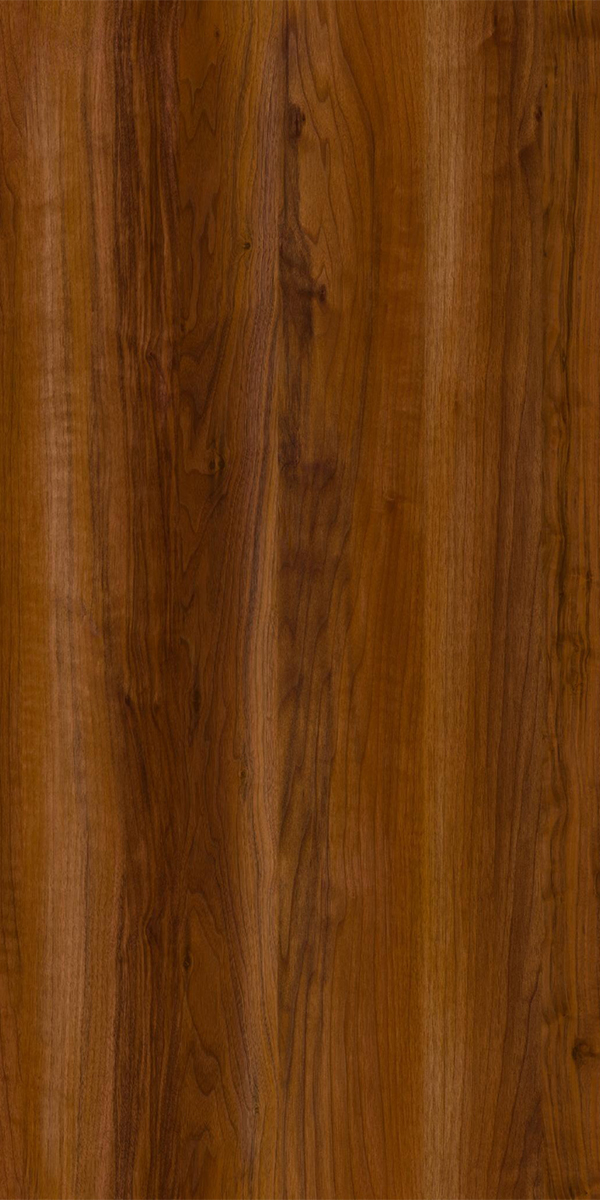

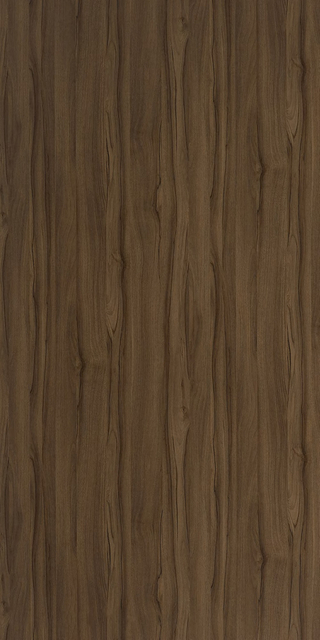

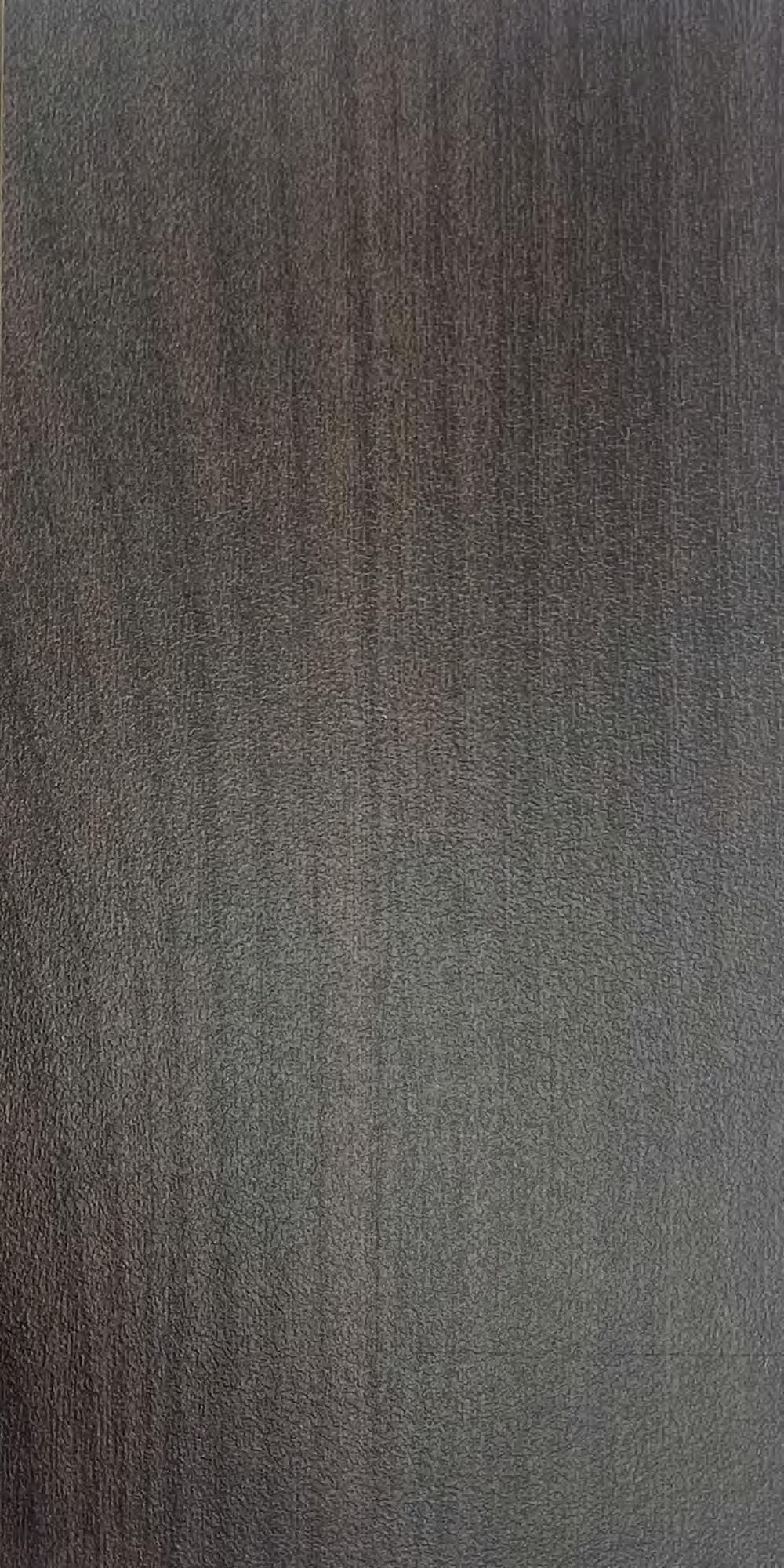

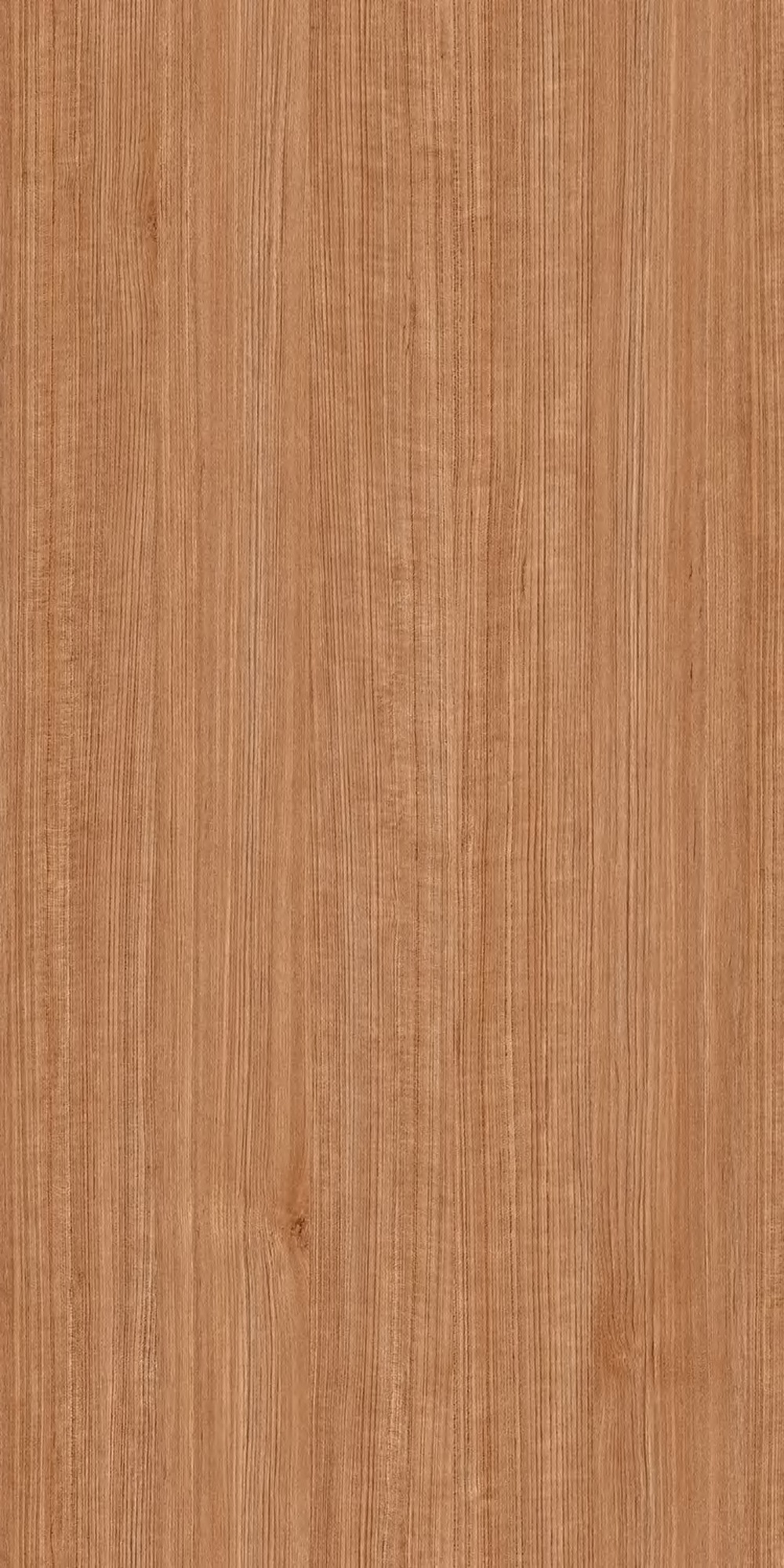

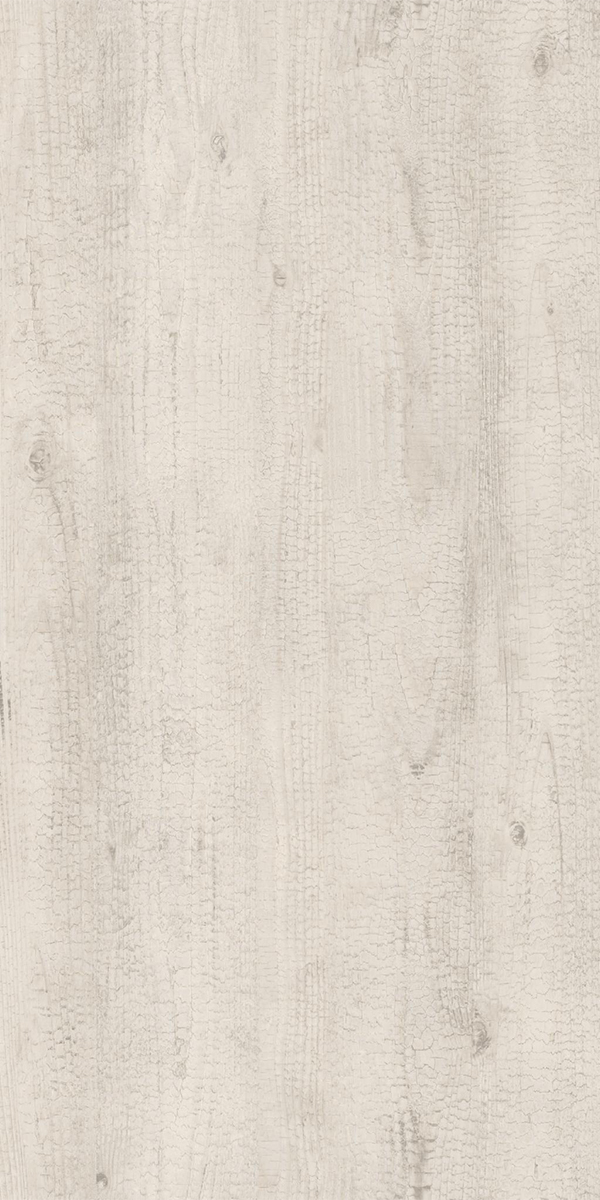

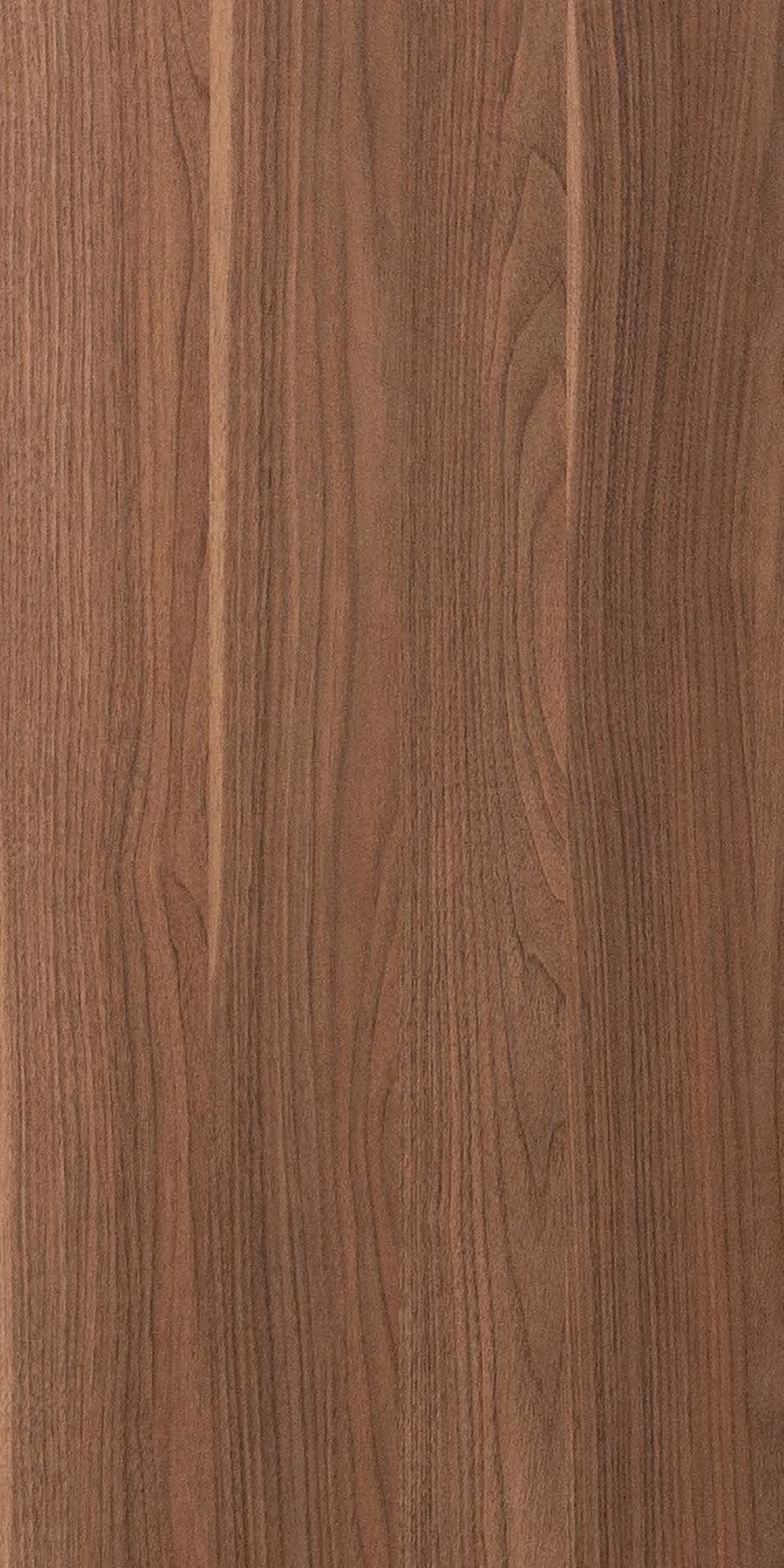

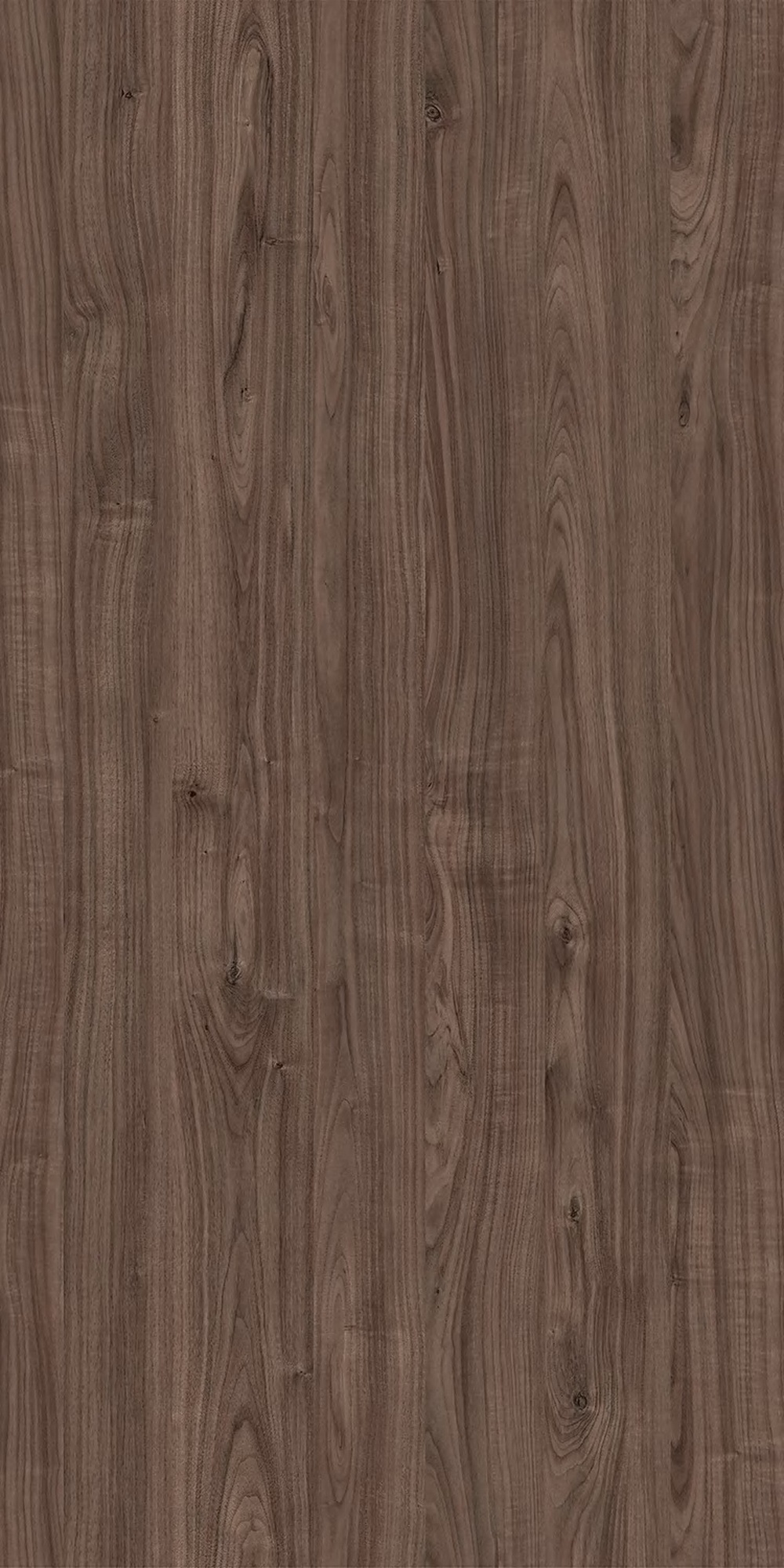

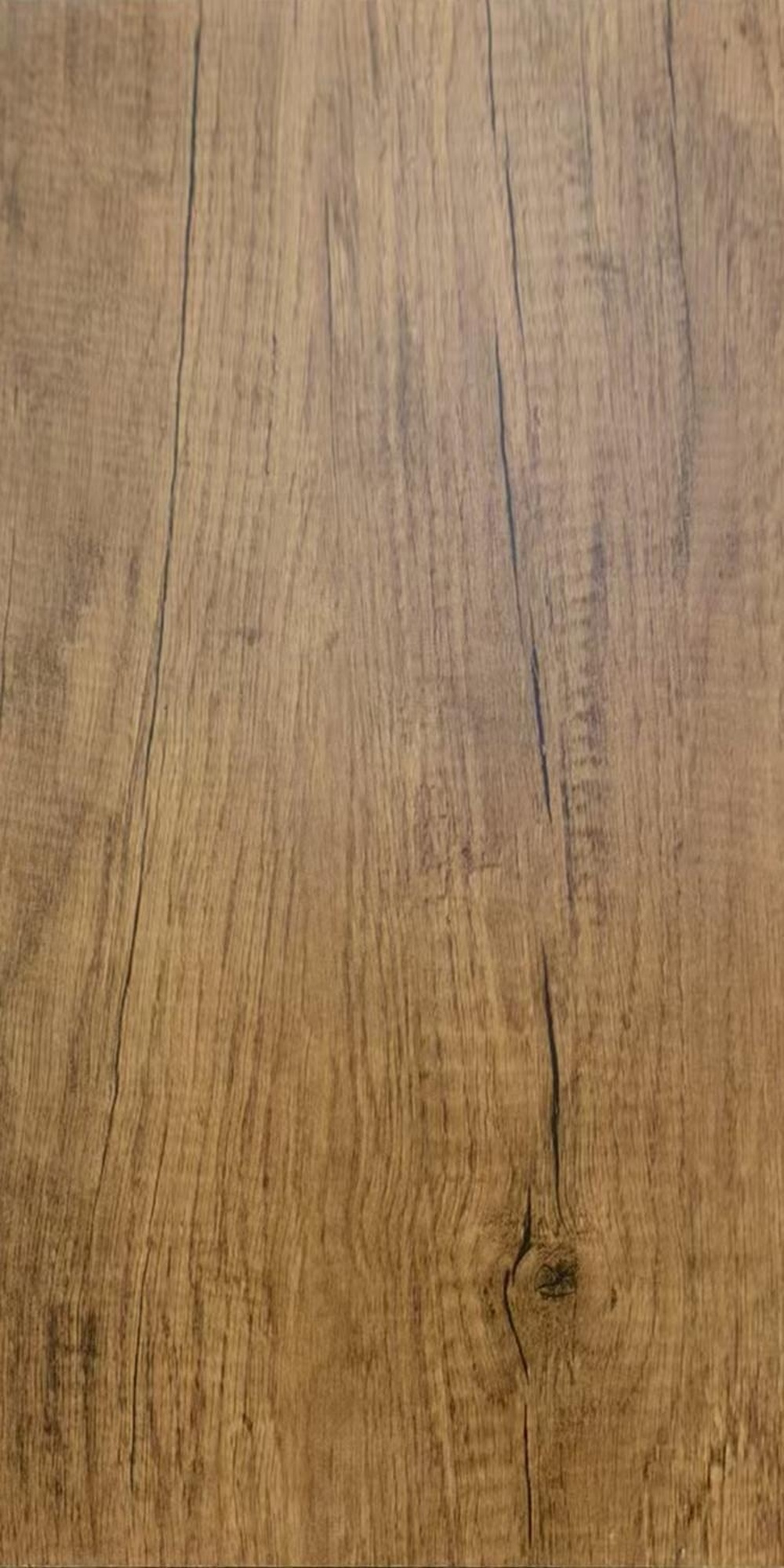

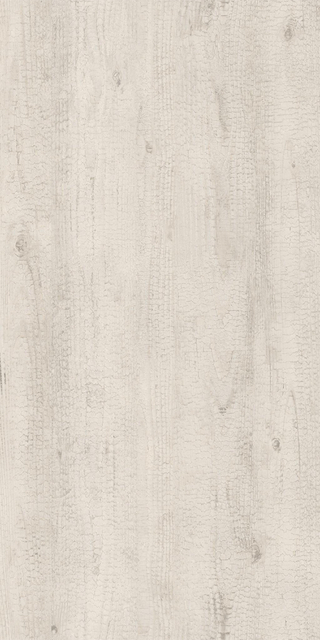

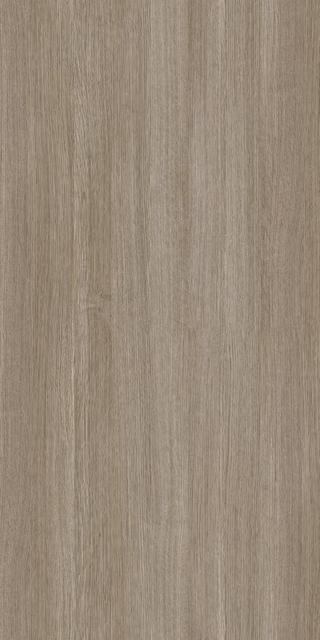

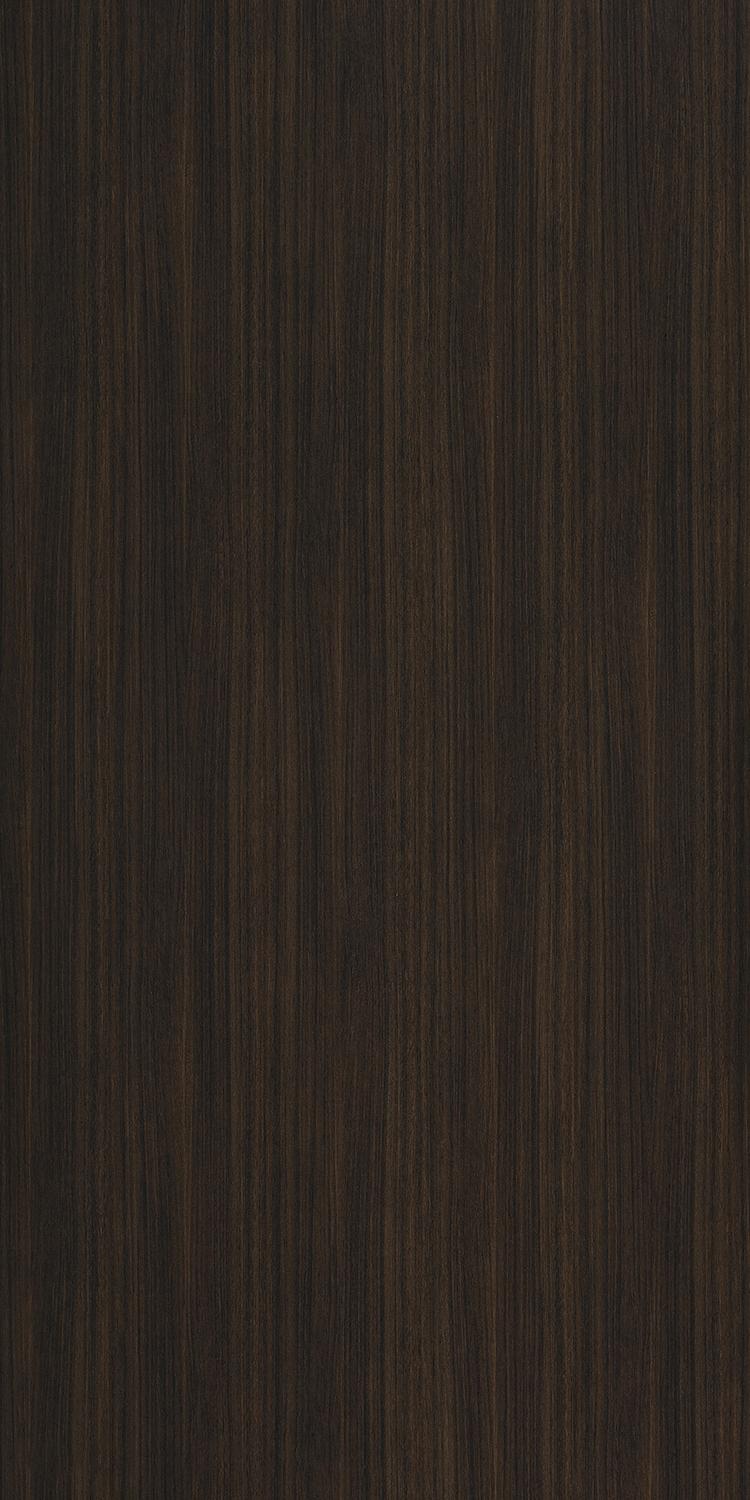

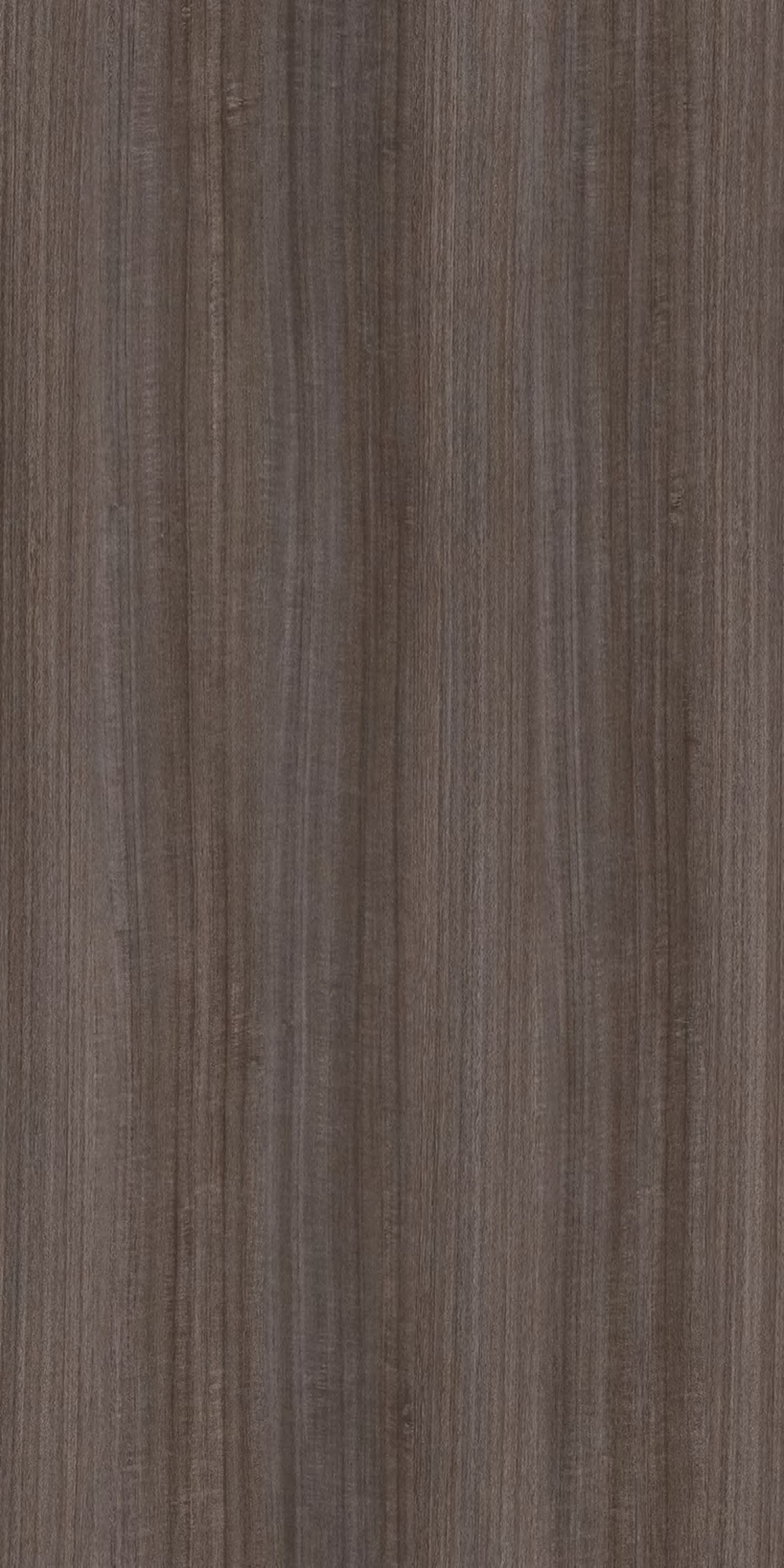

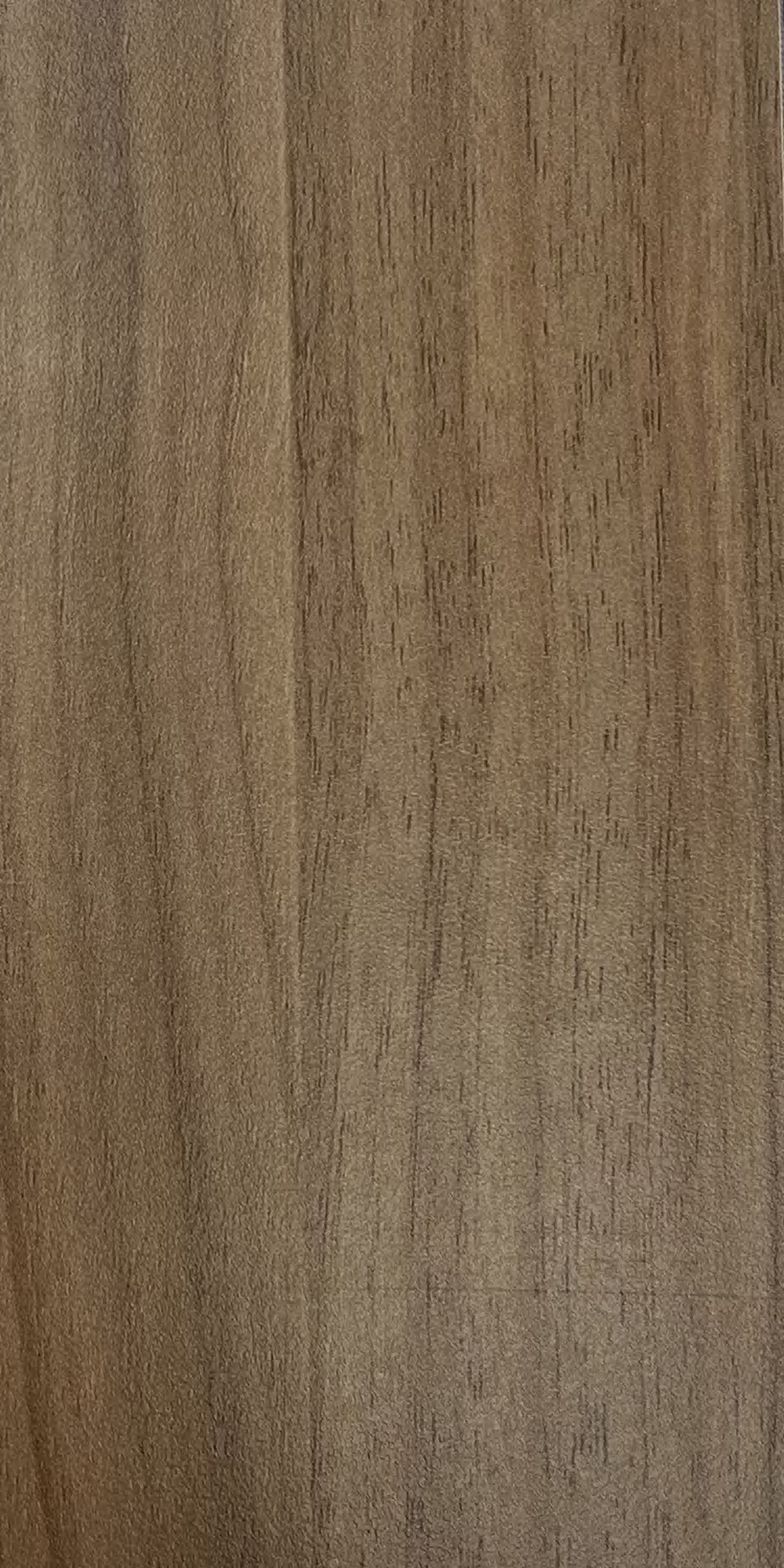

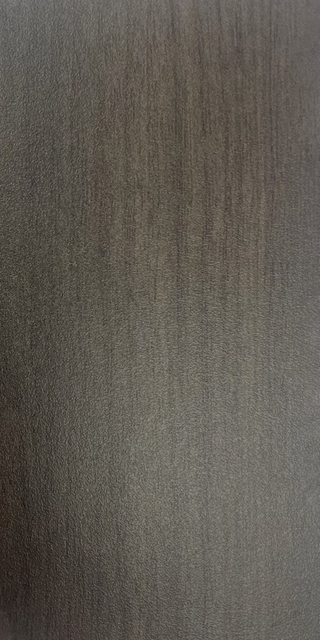

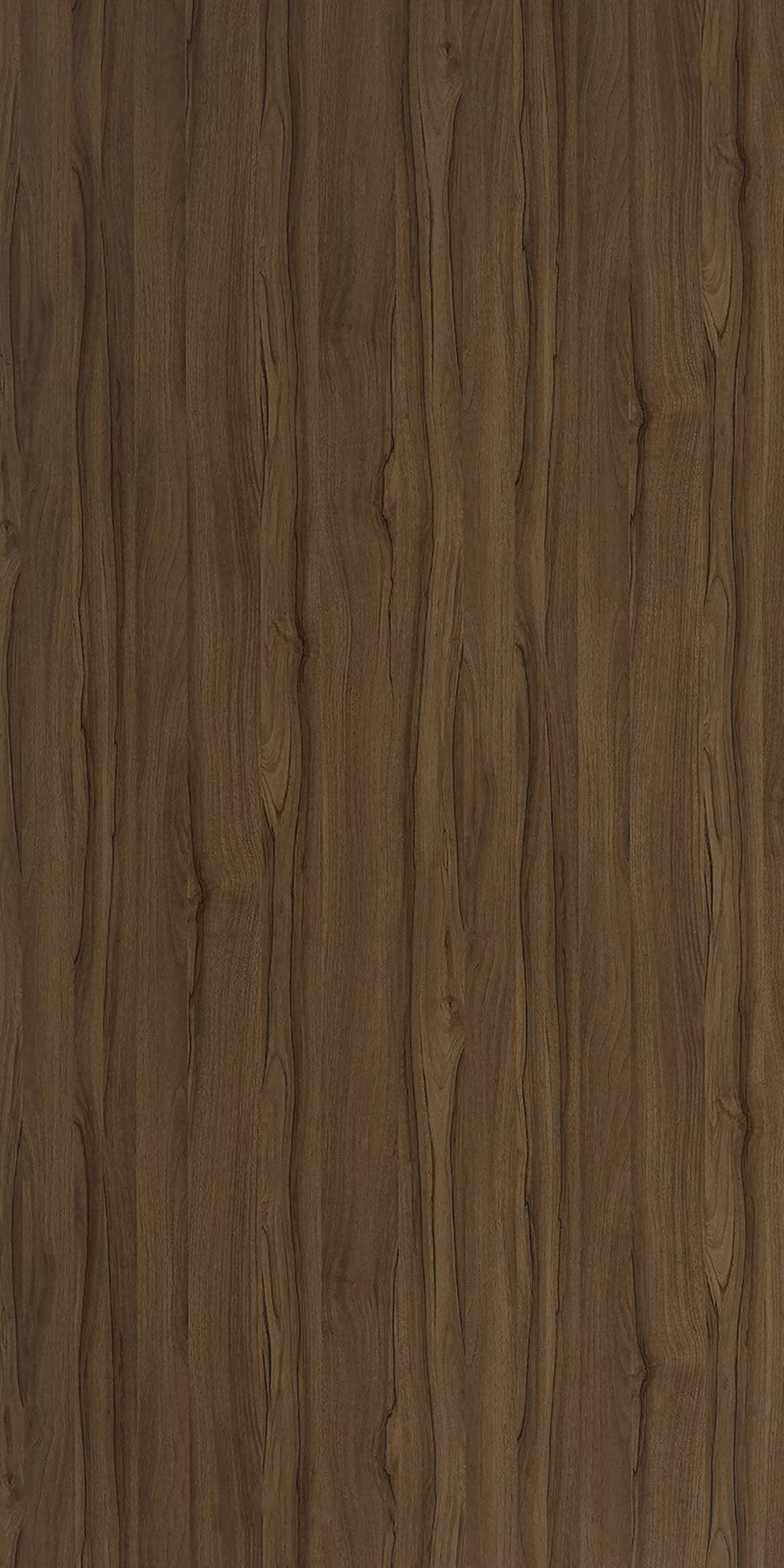

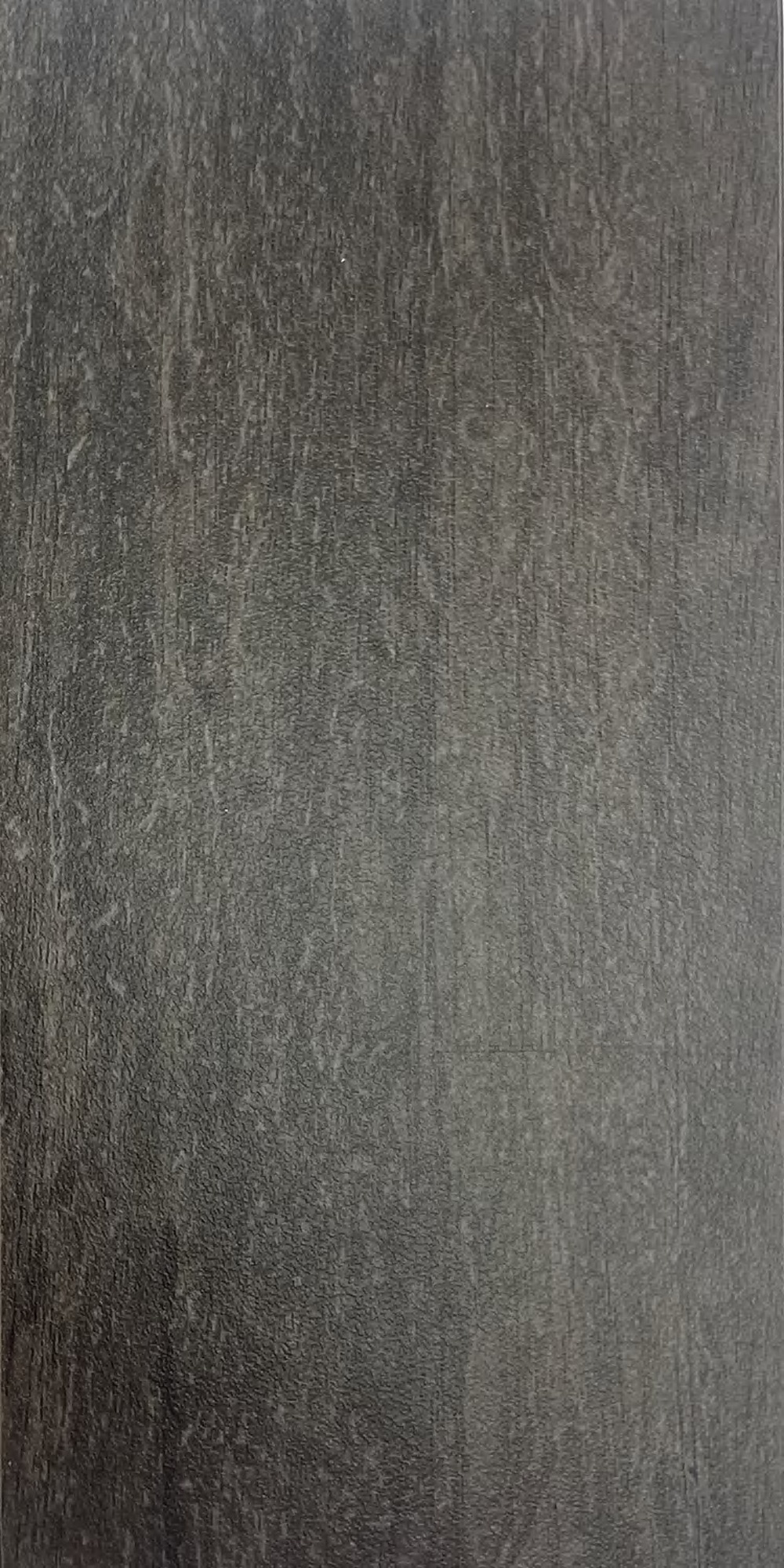

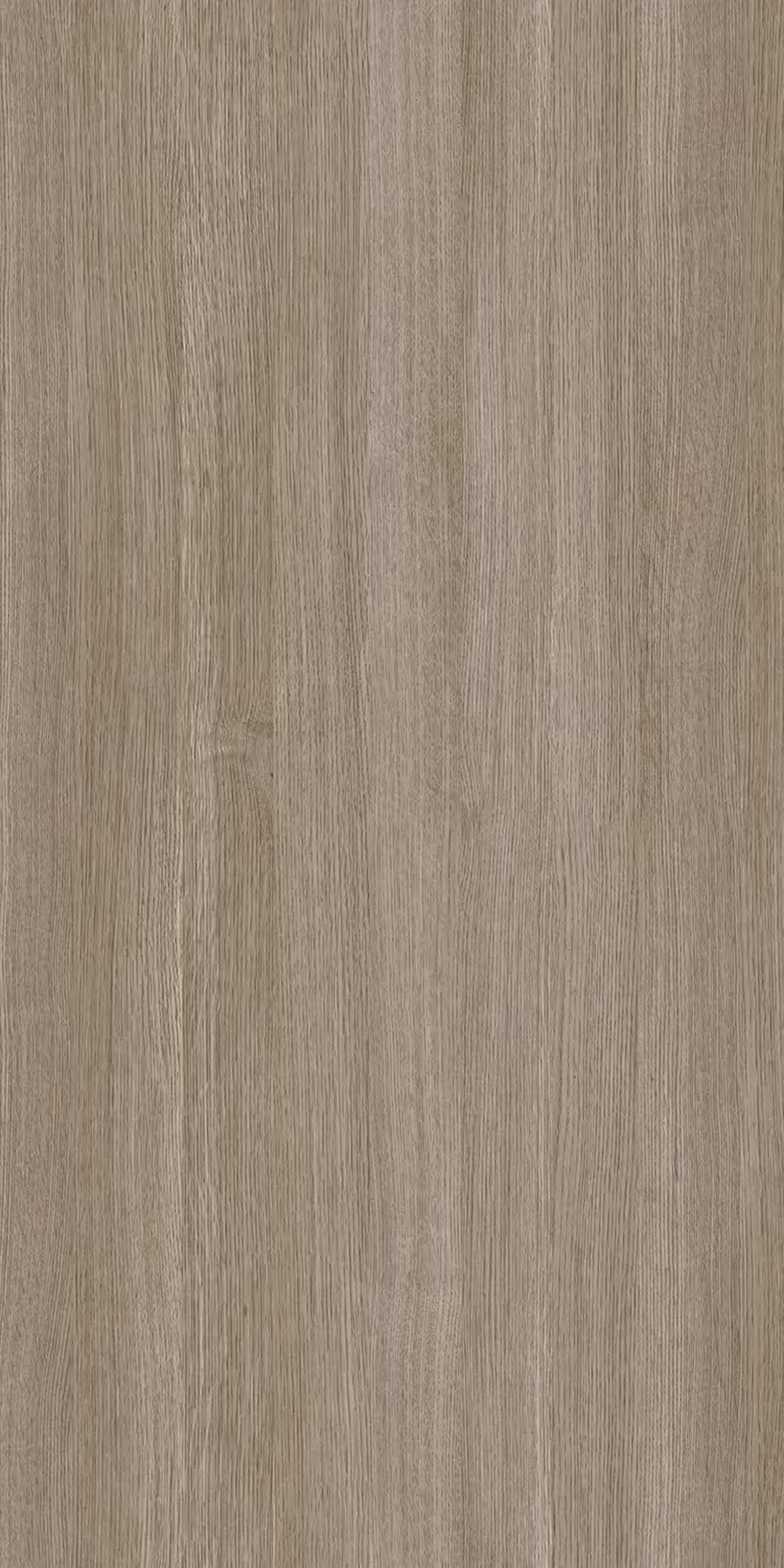

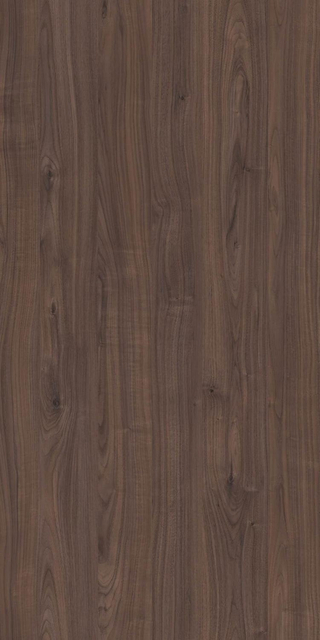

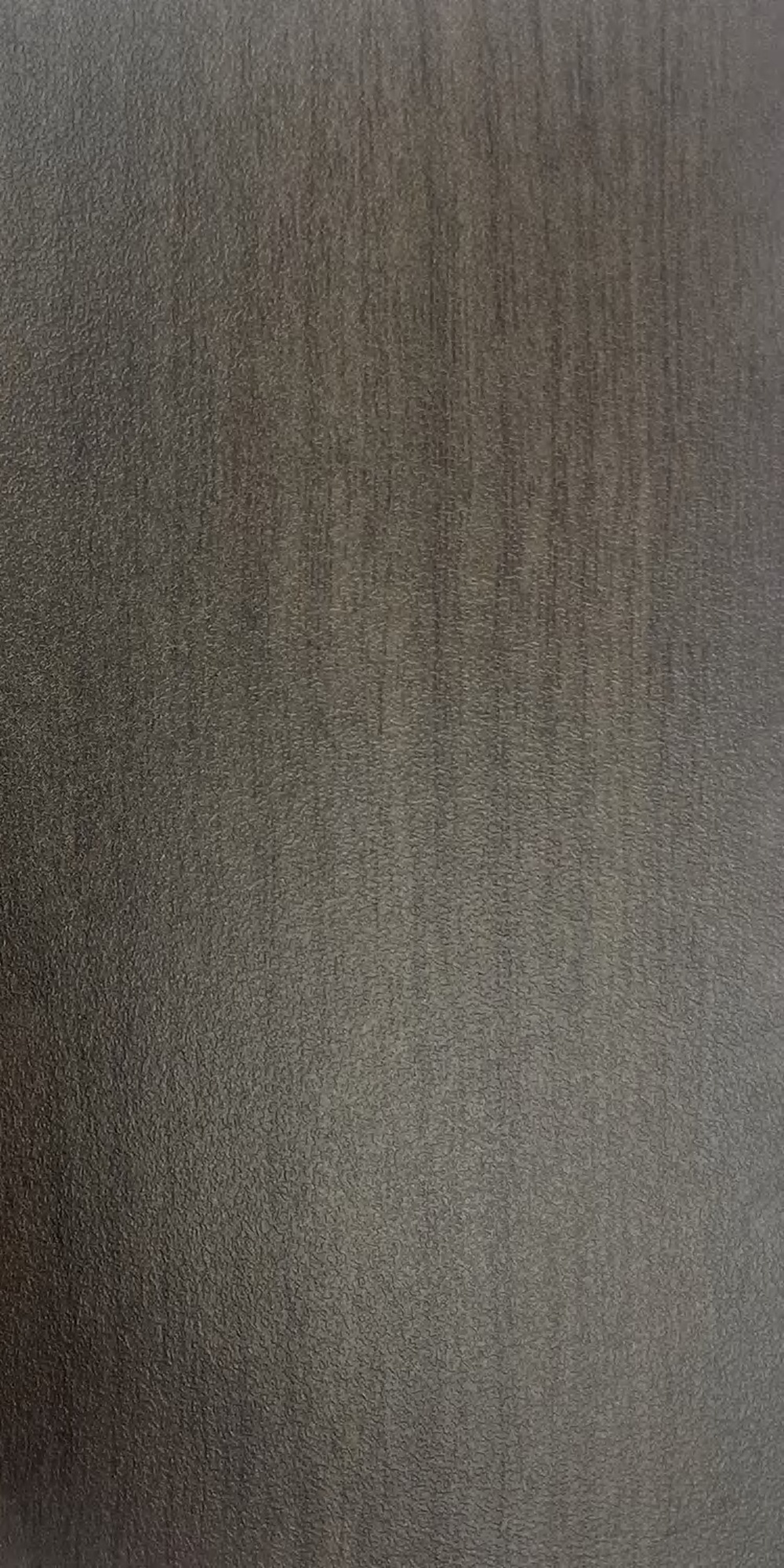

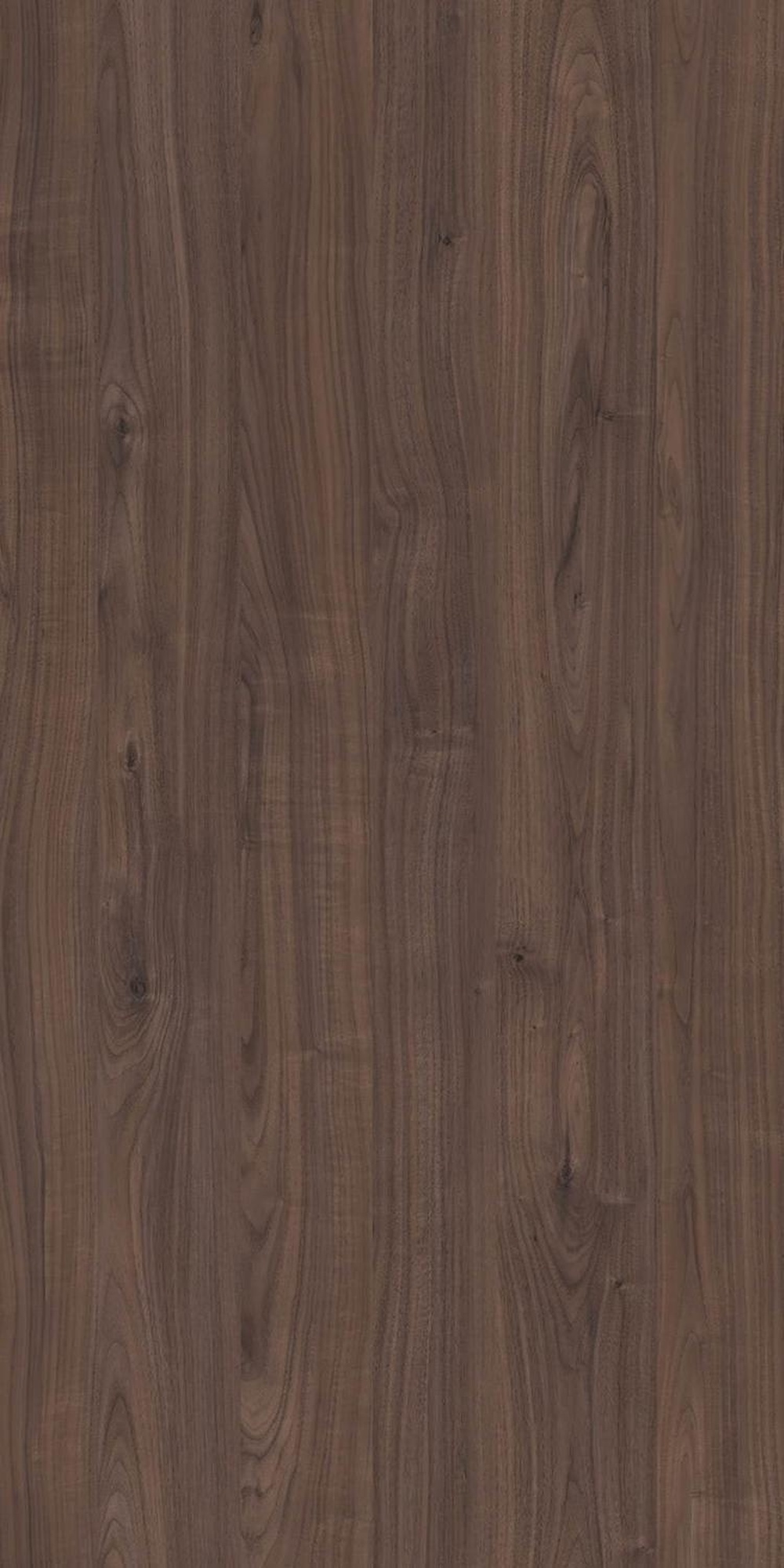

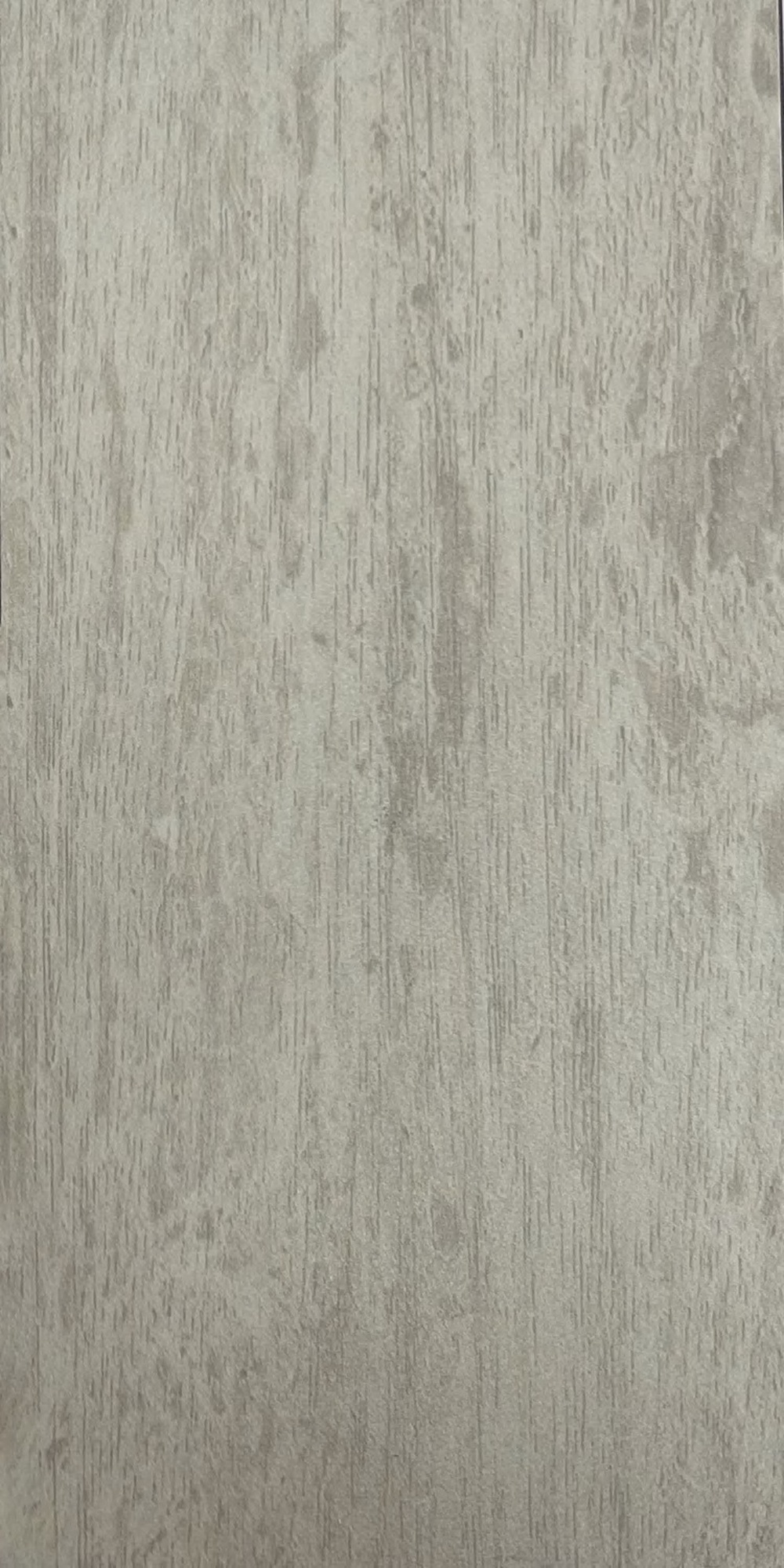

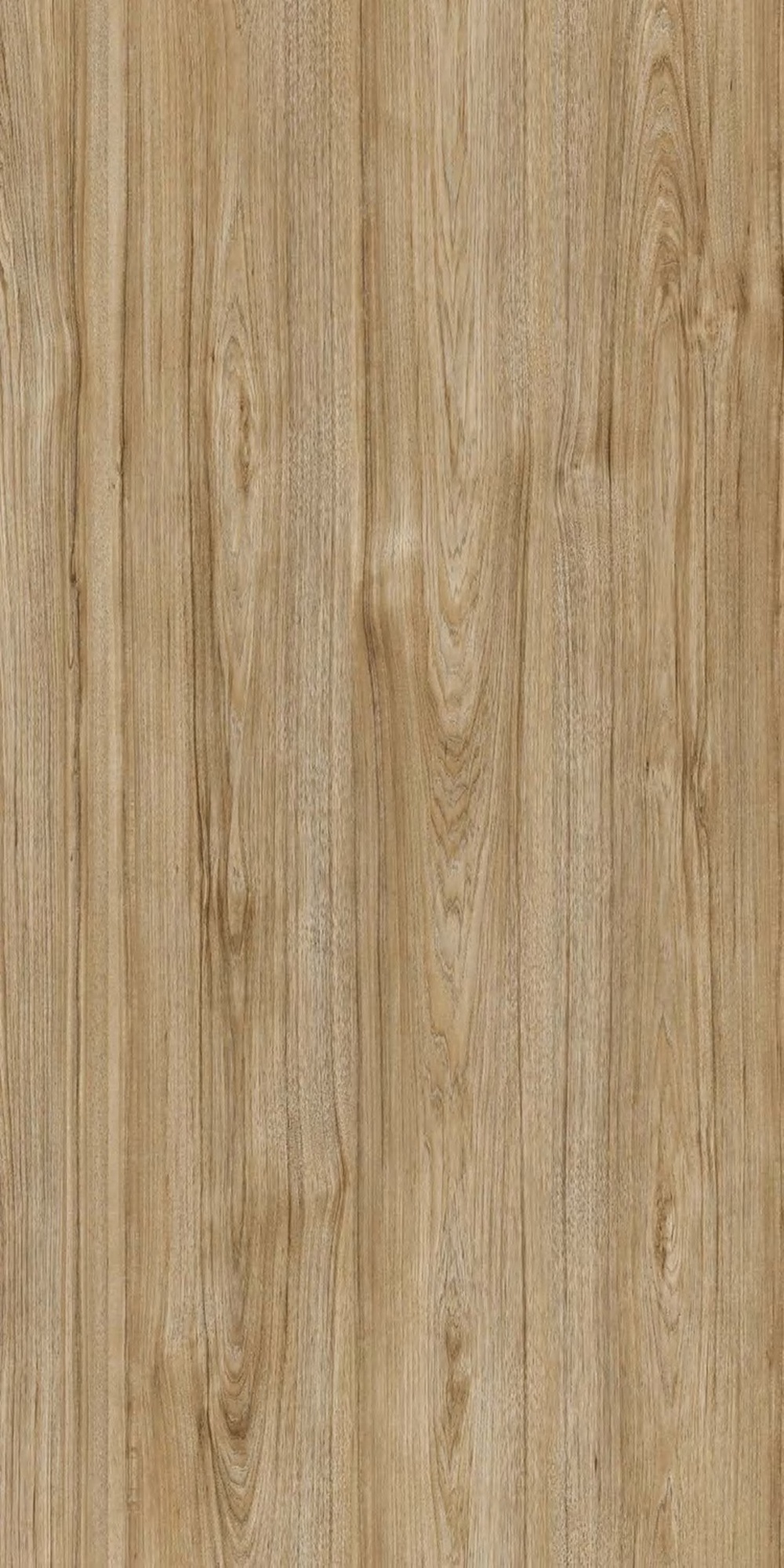

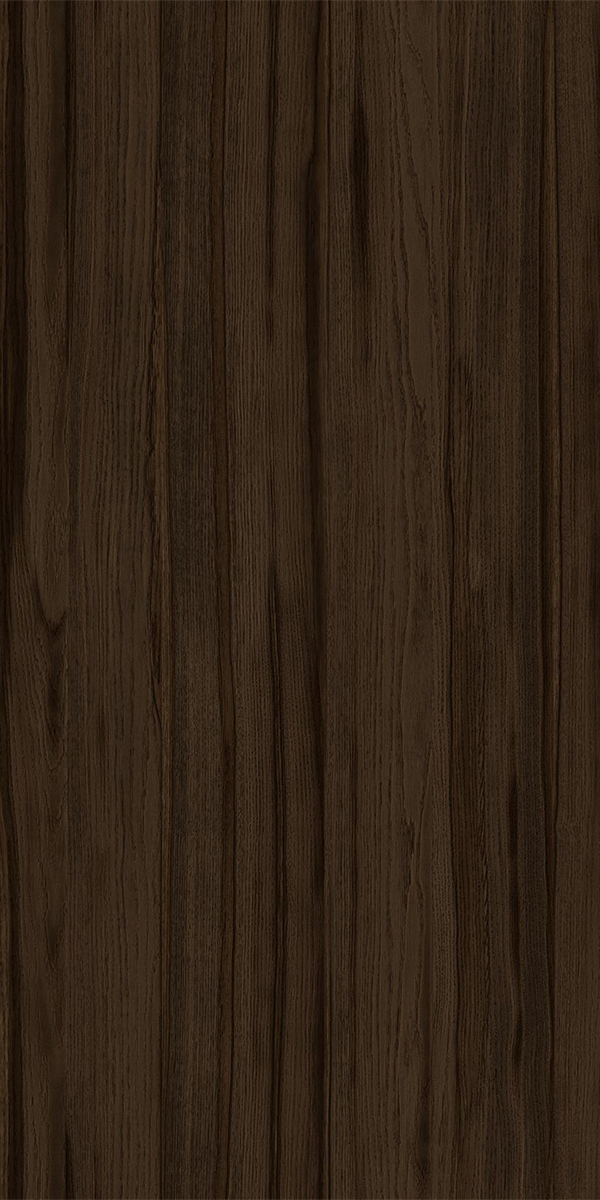

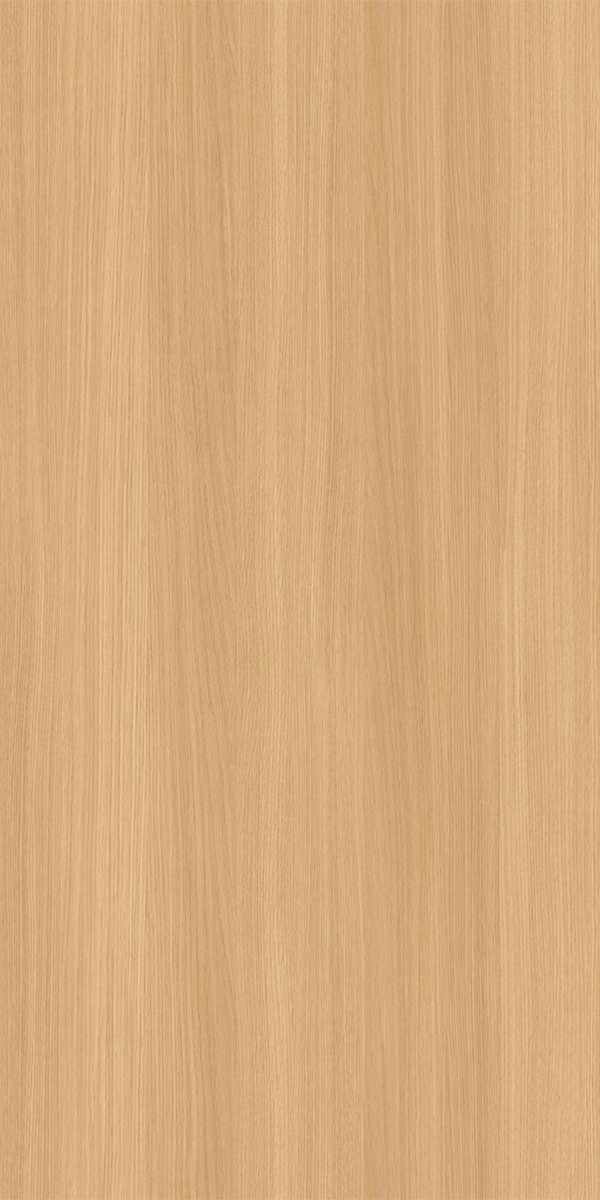

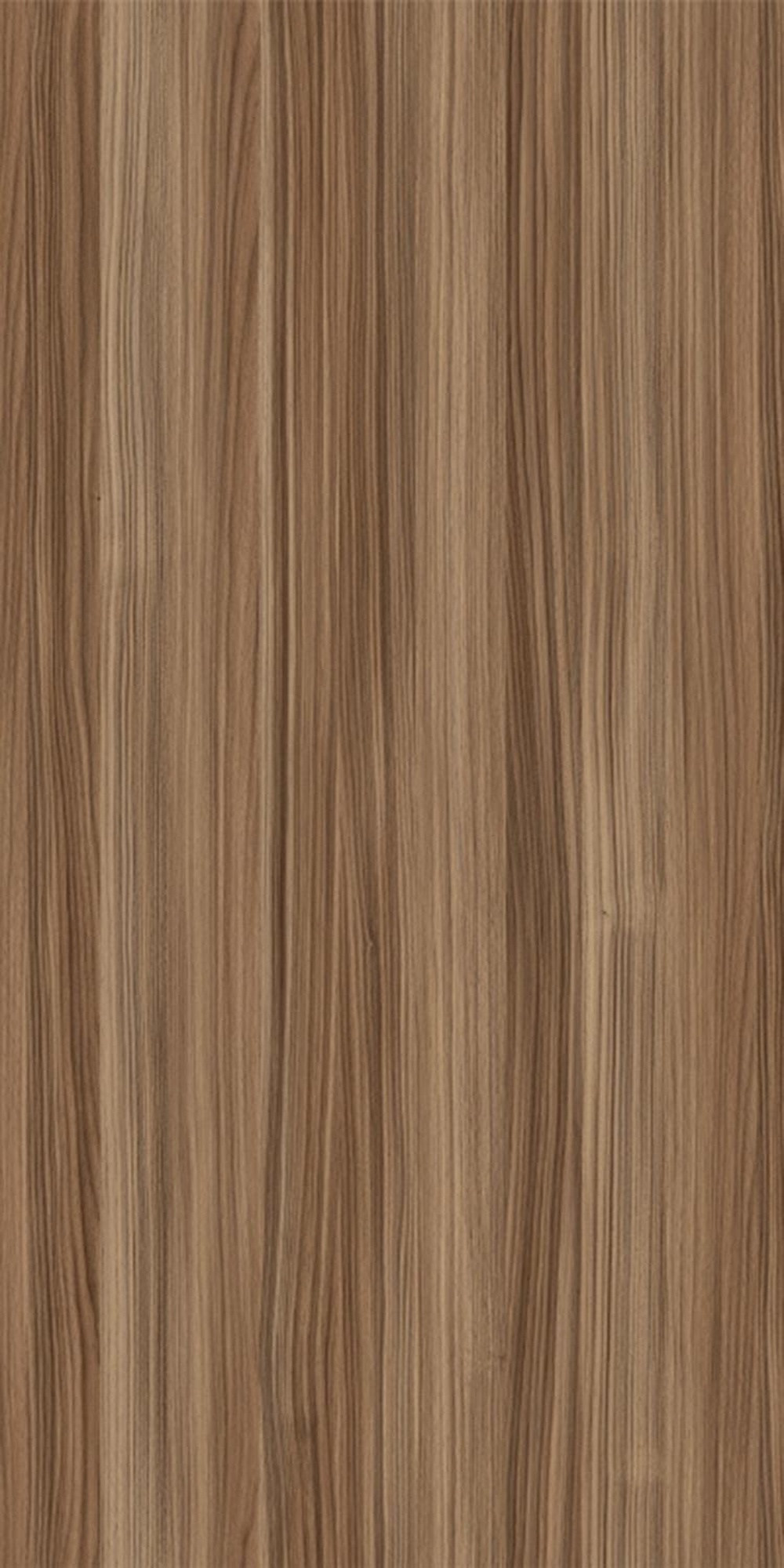

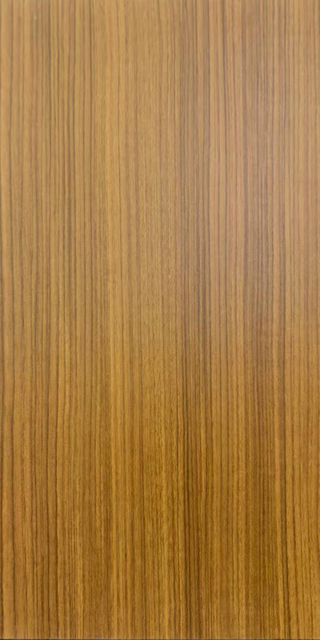

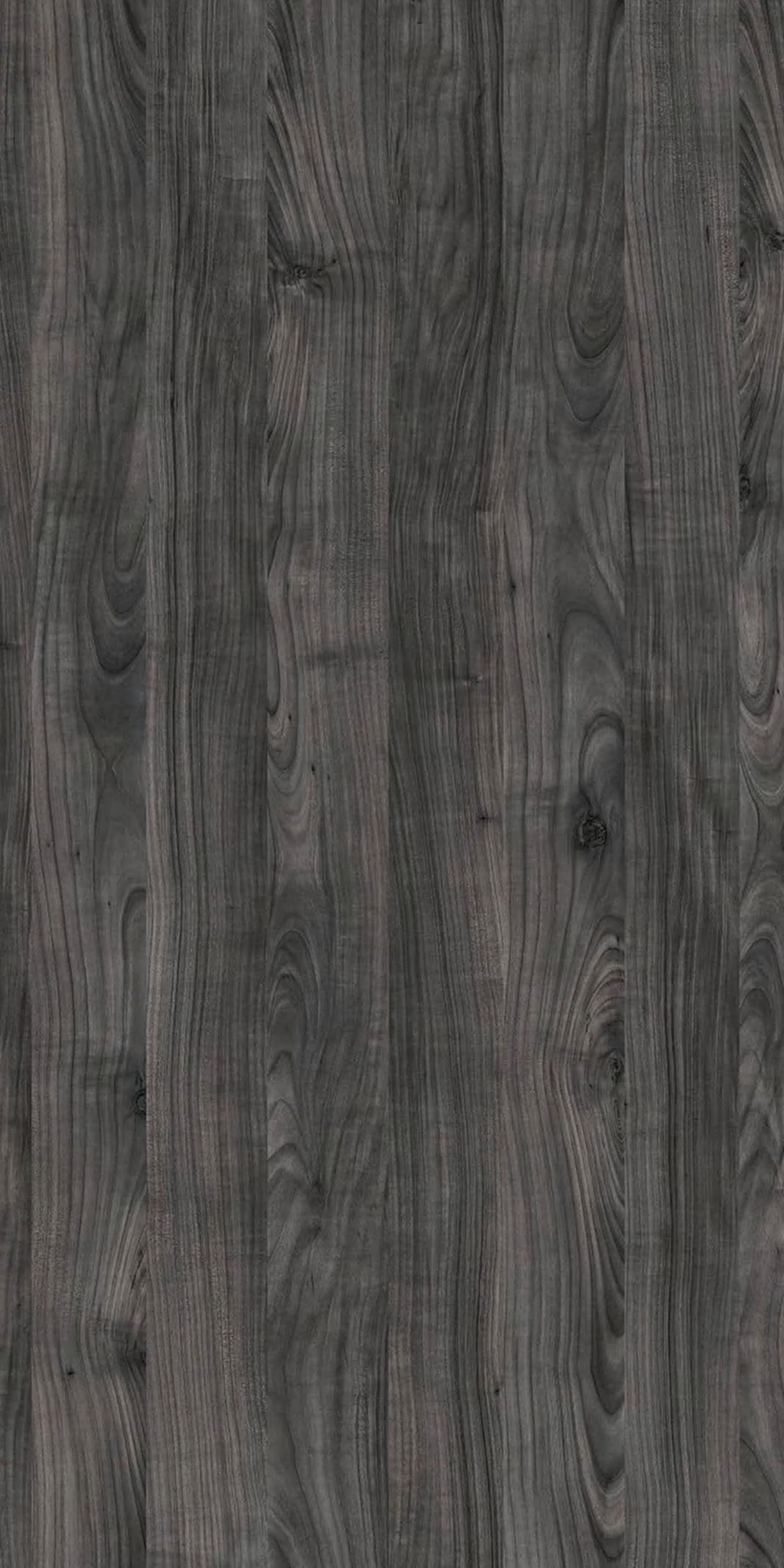

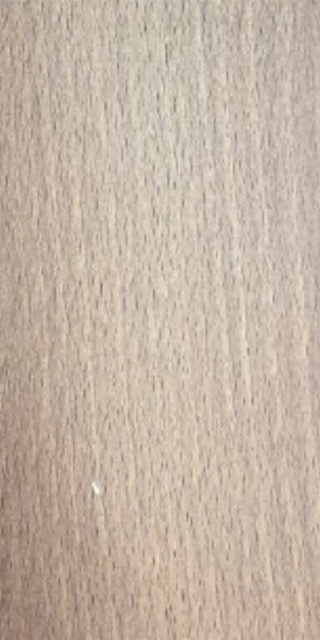

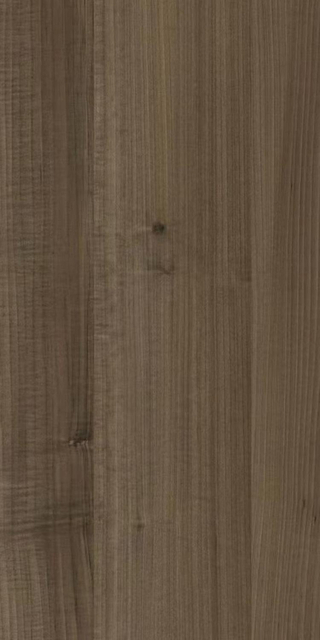

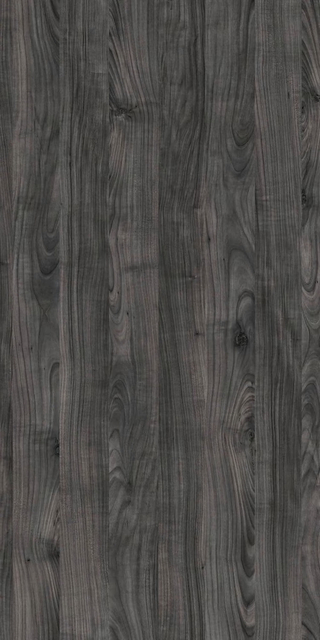

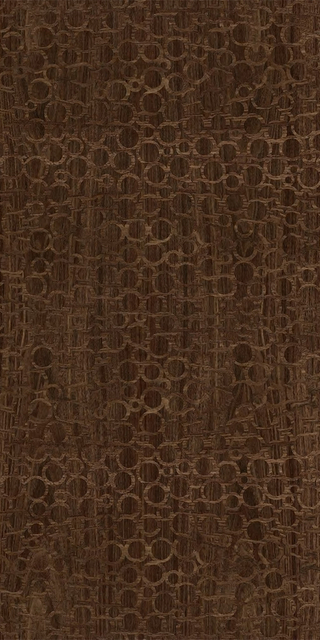

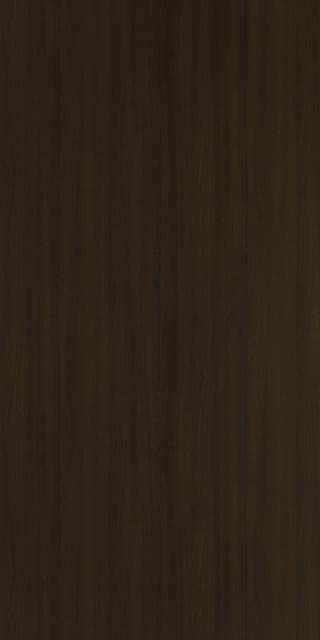

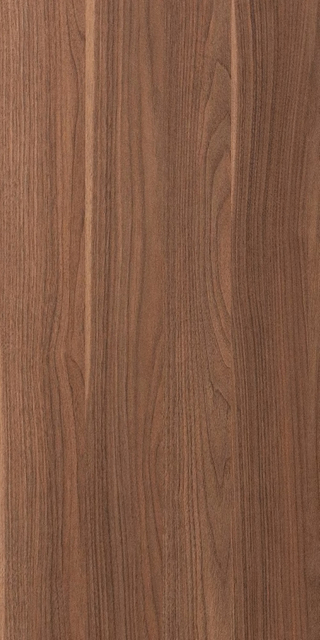

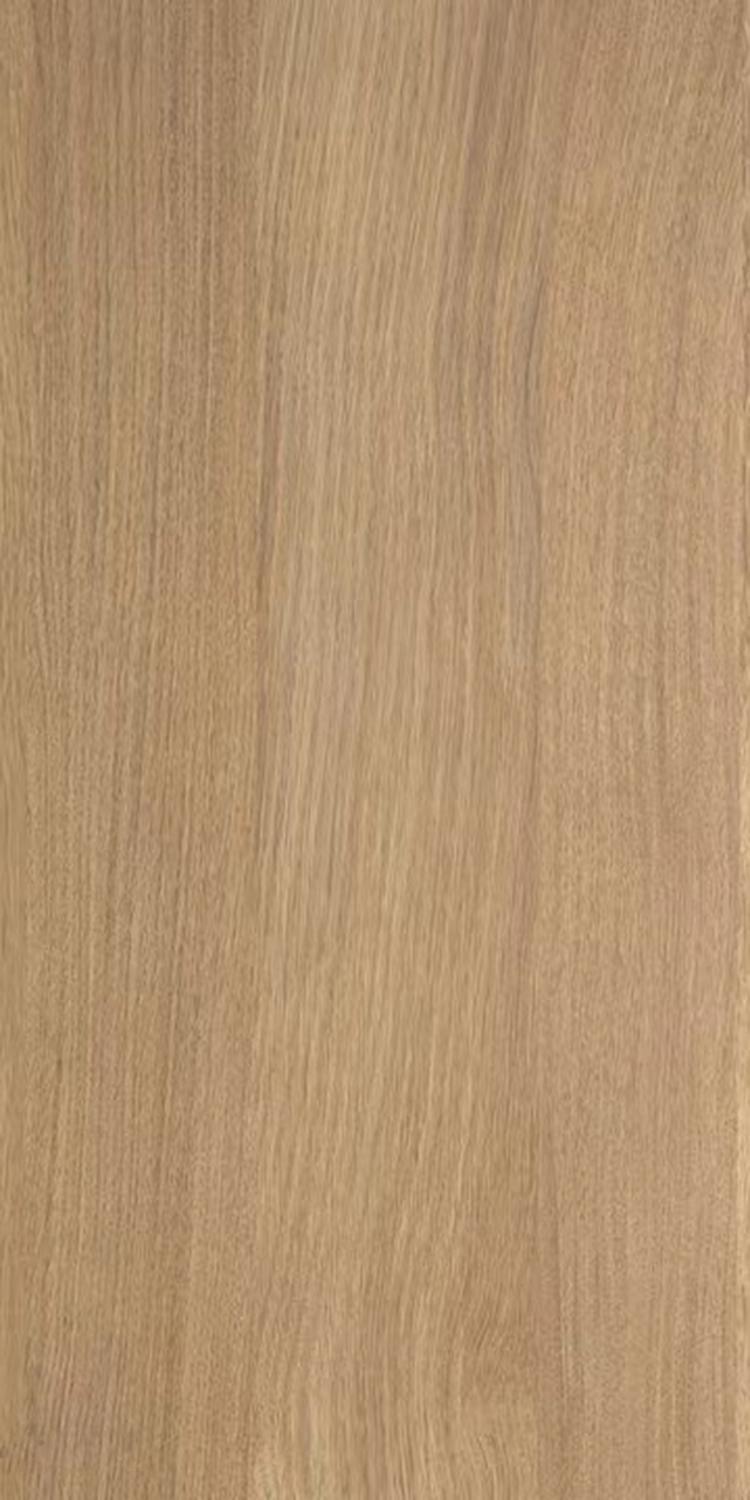

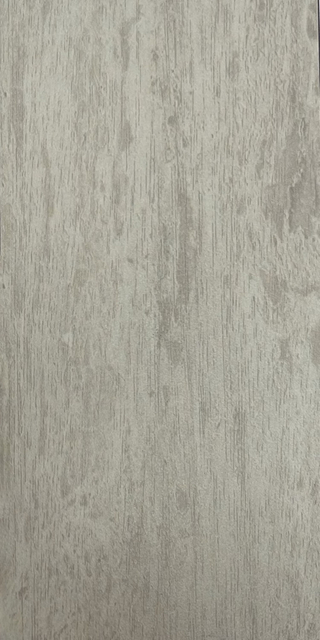

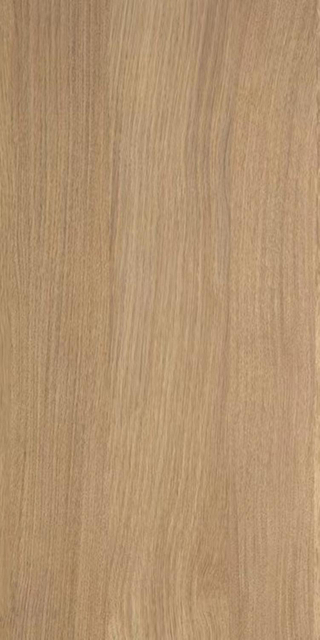

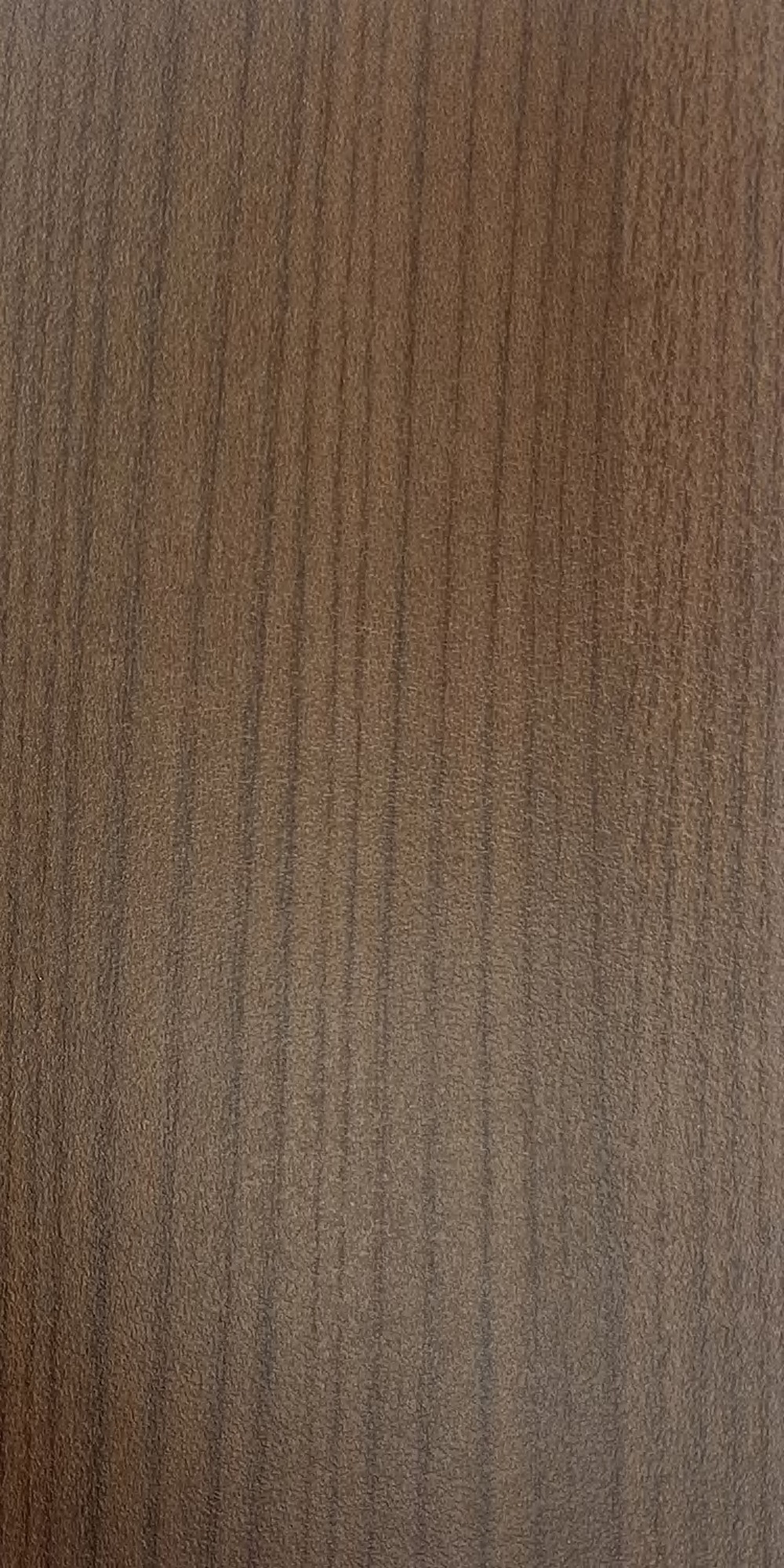

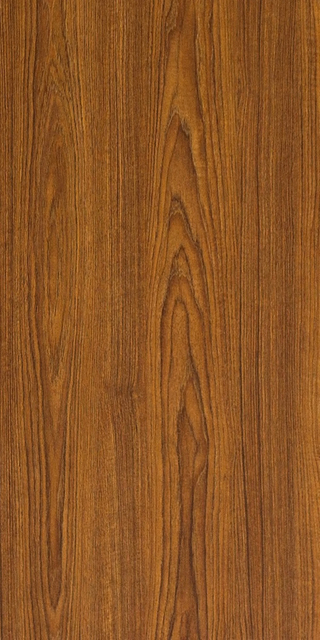

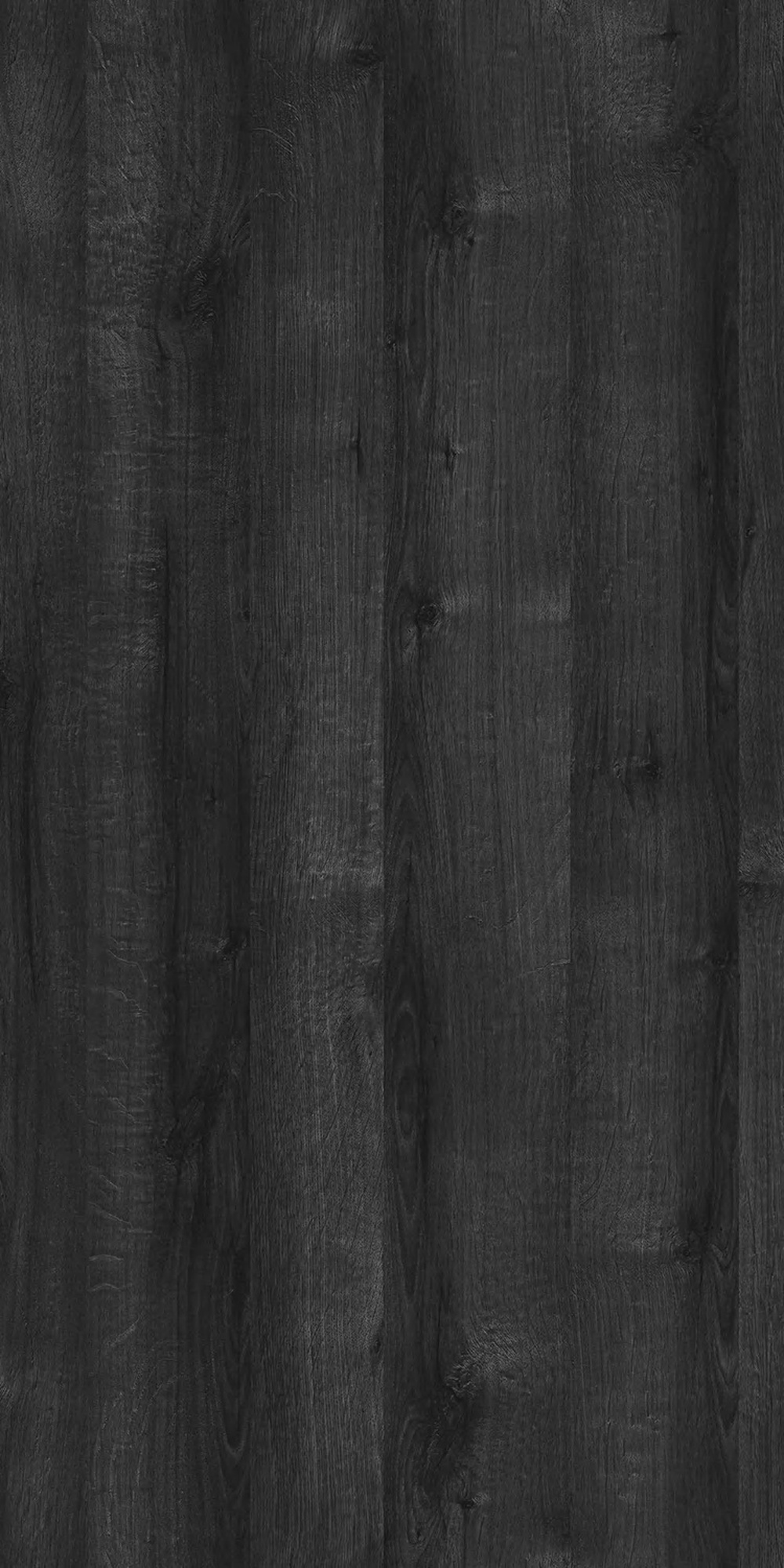

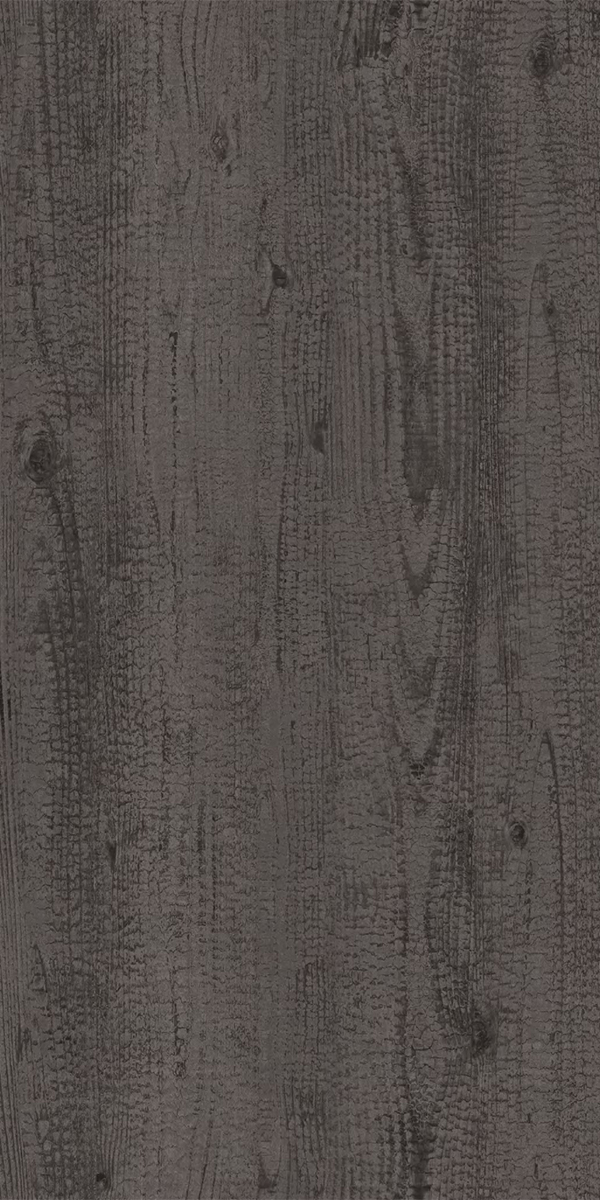

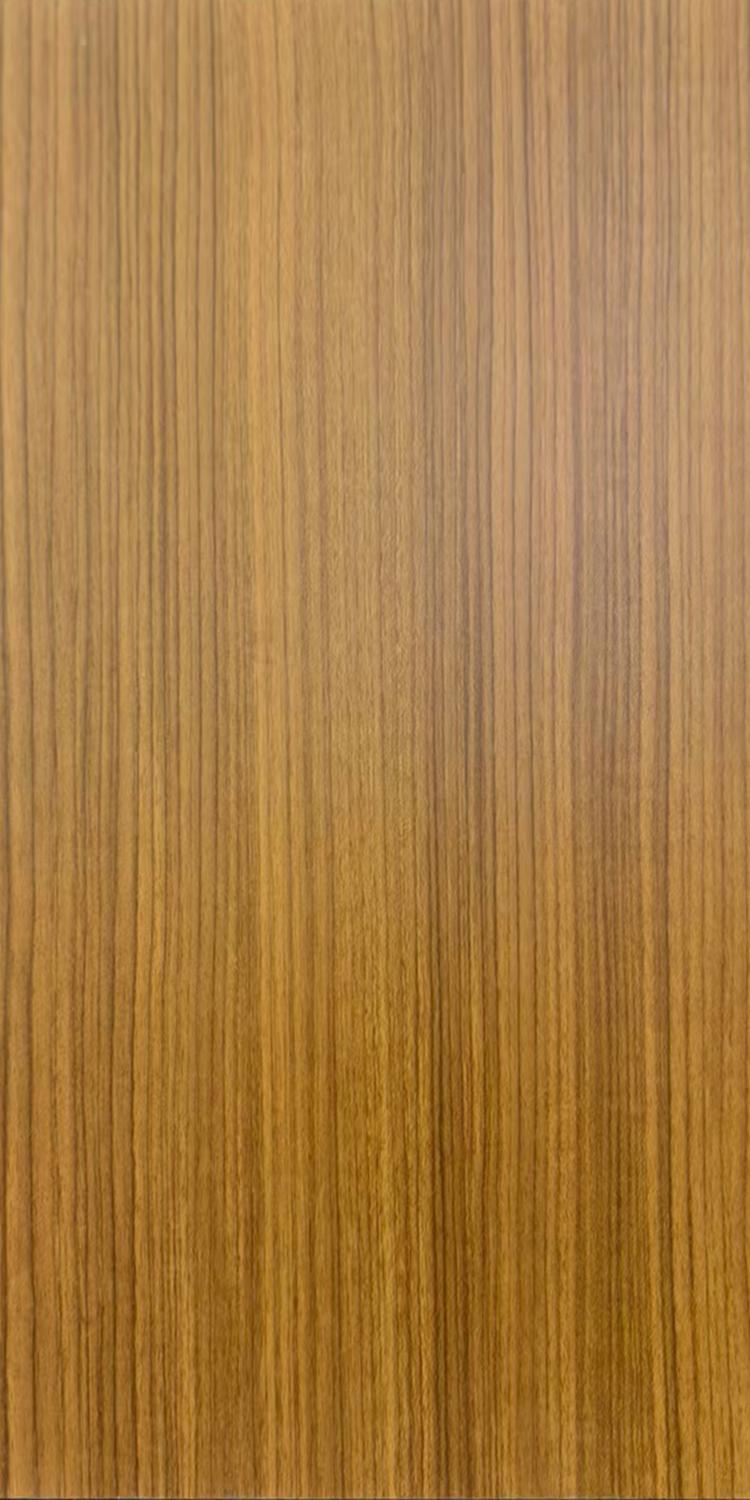

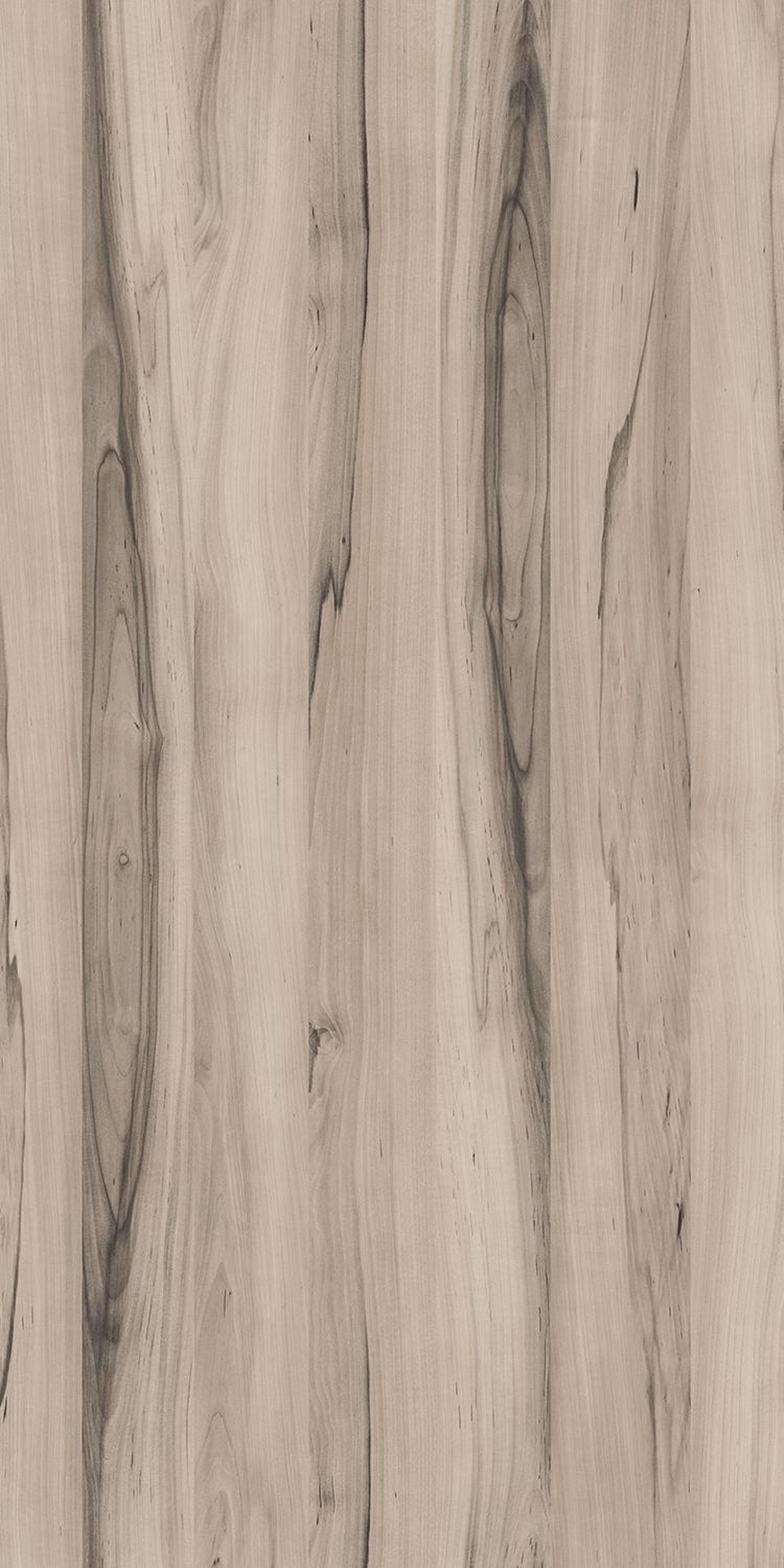

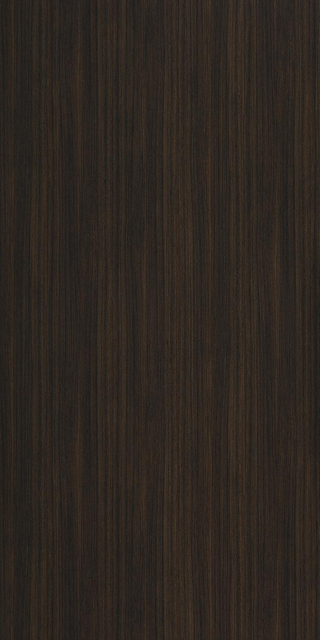

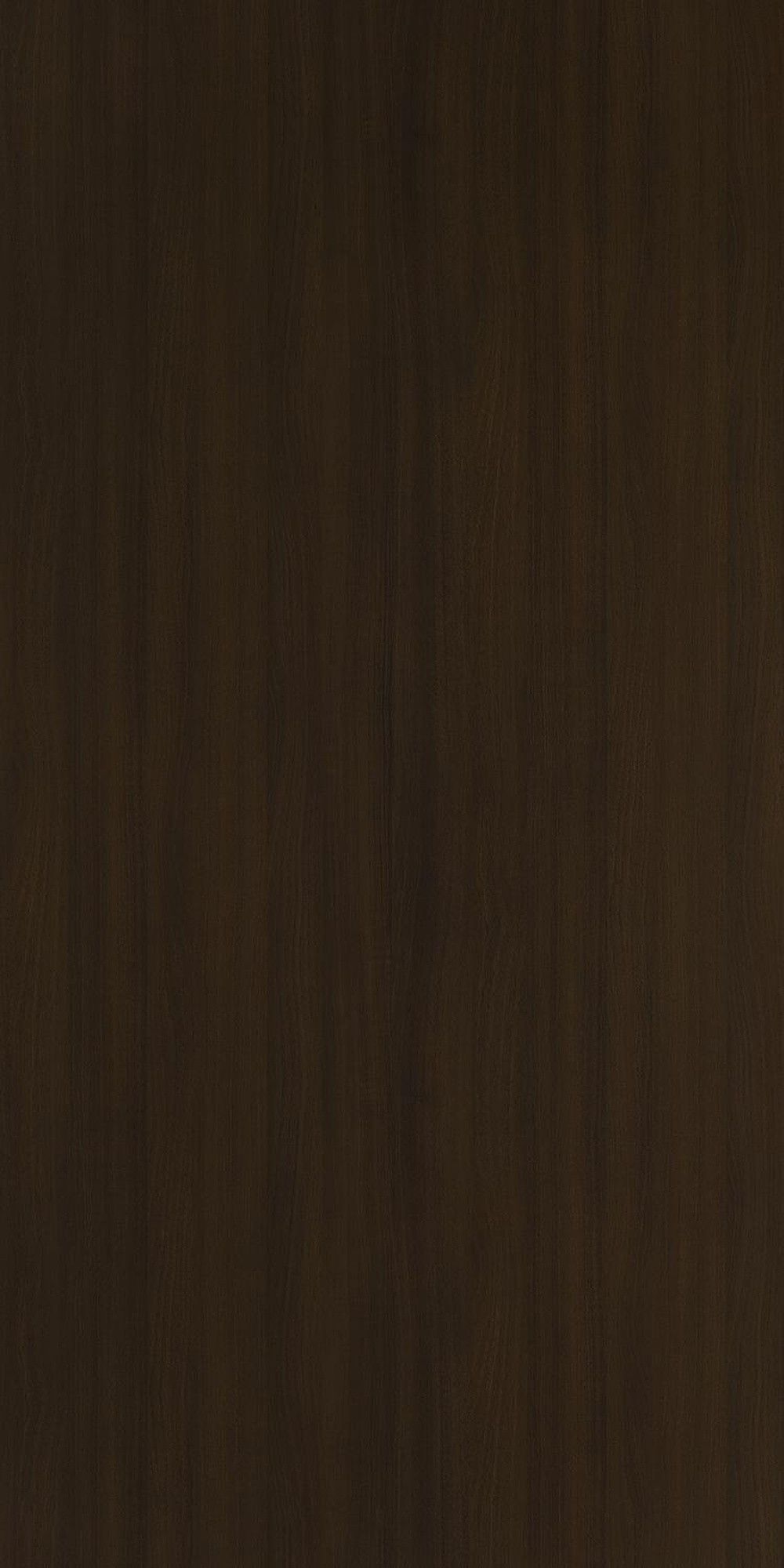

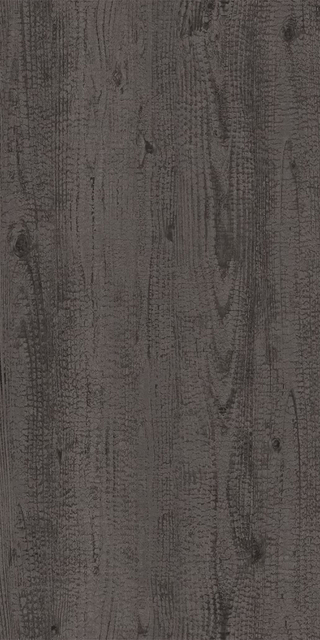

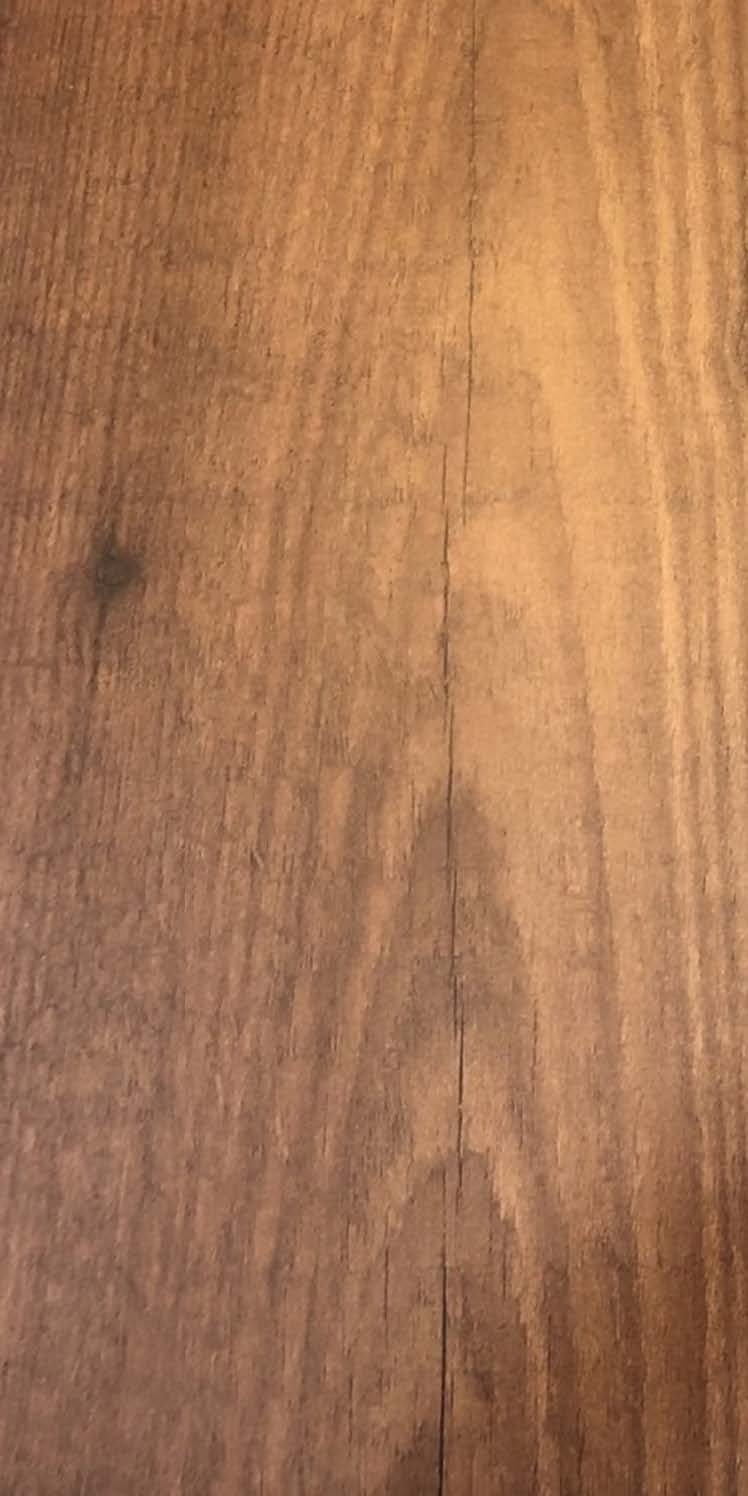

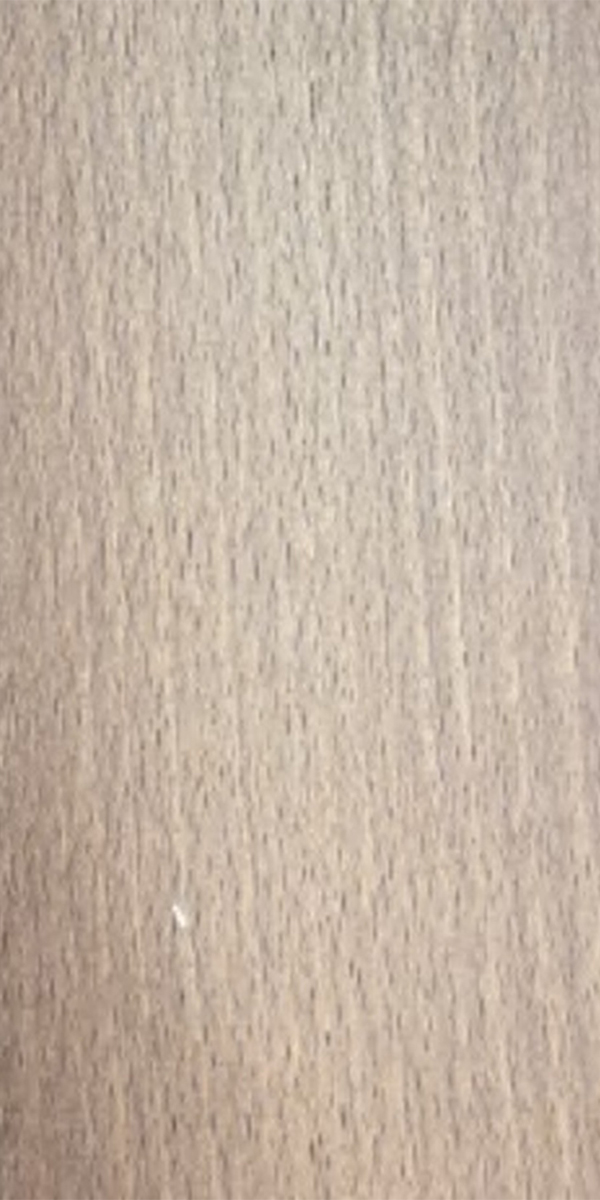

Wood Designs

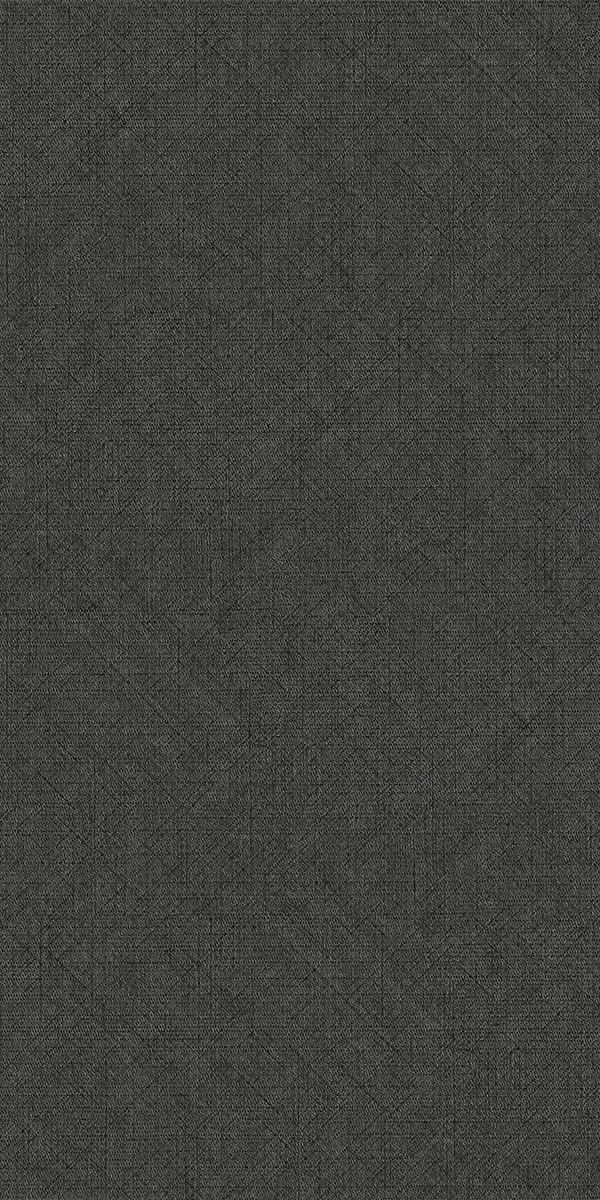

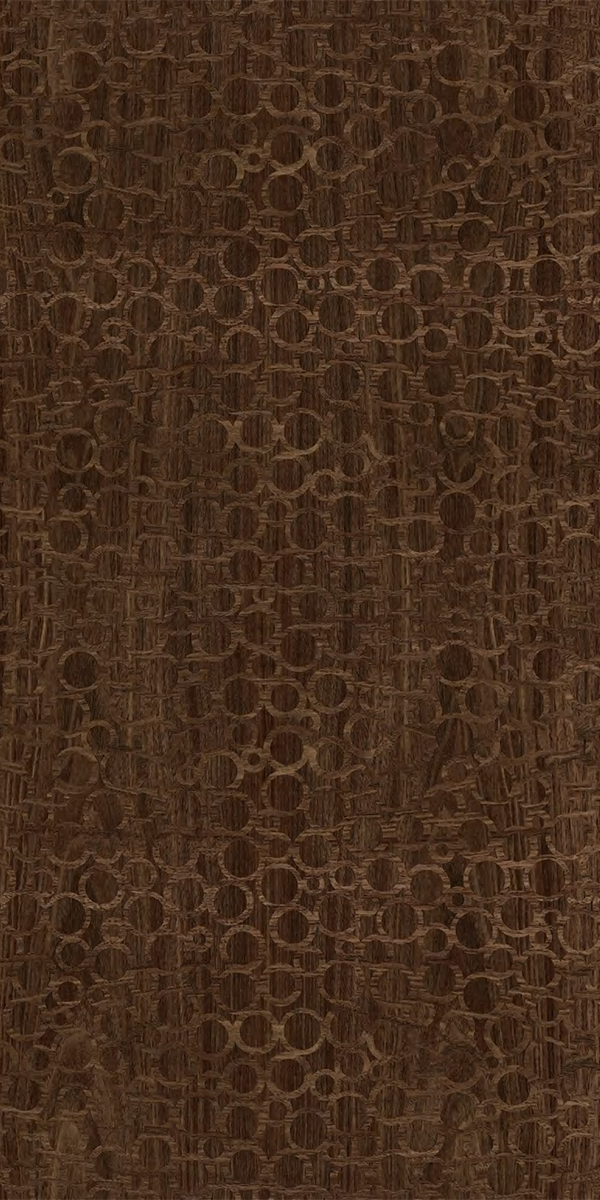

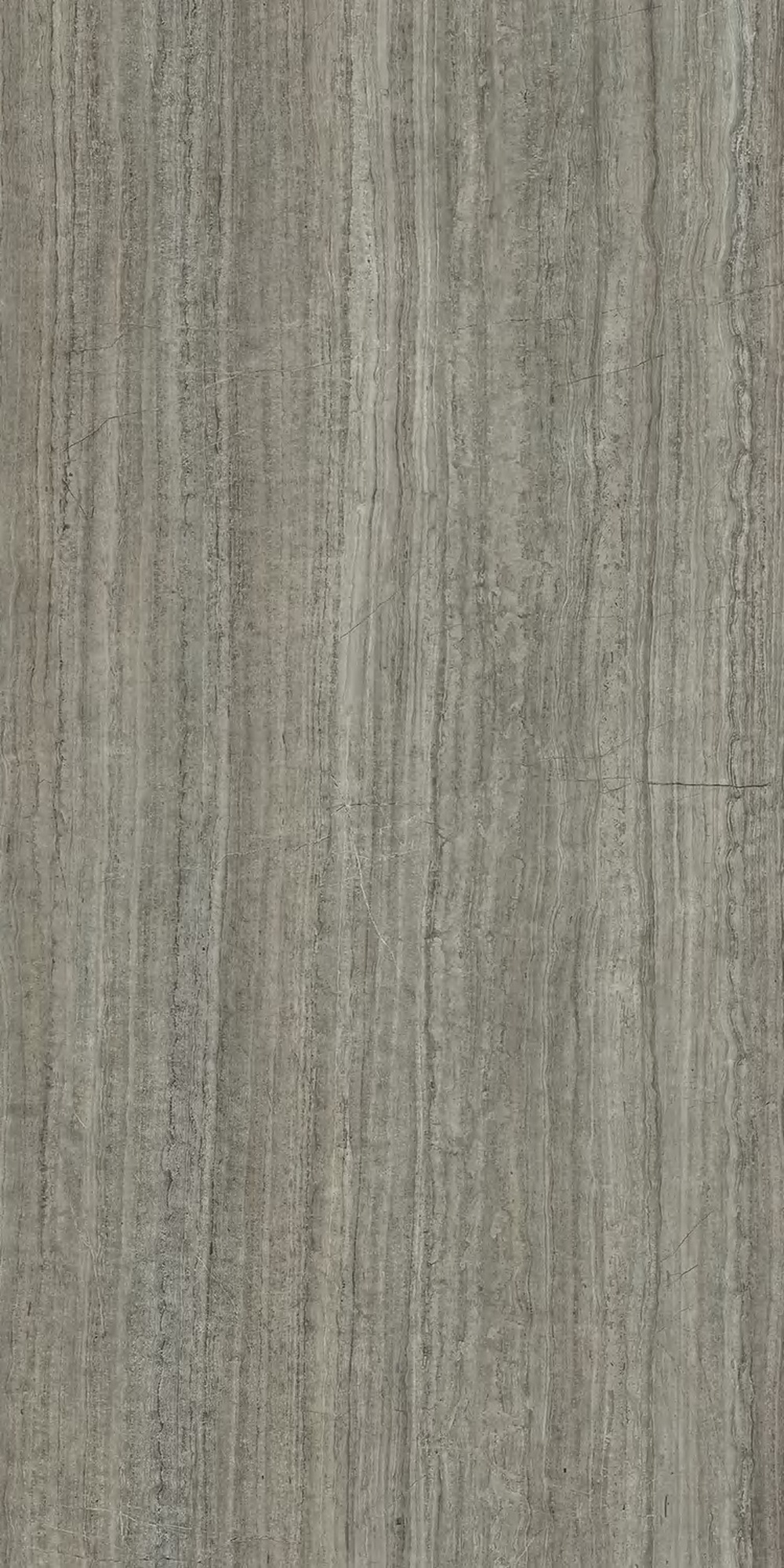

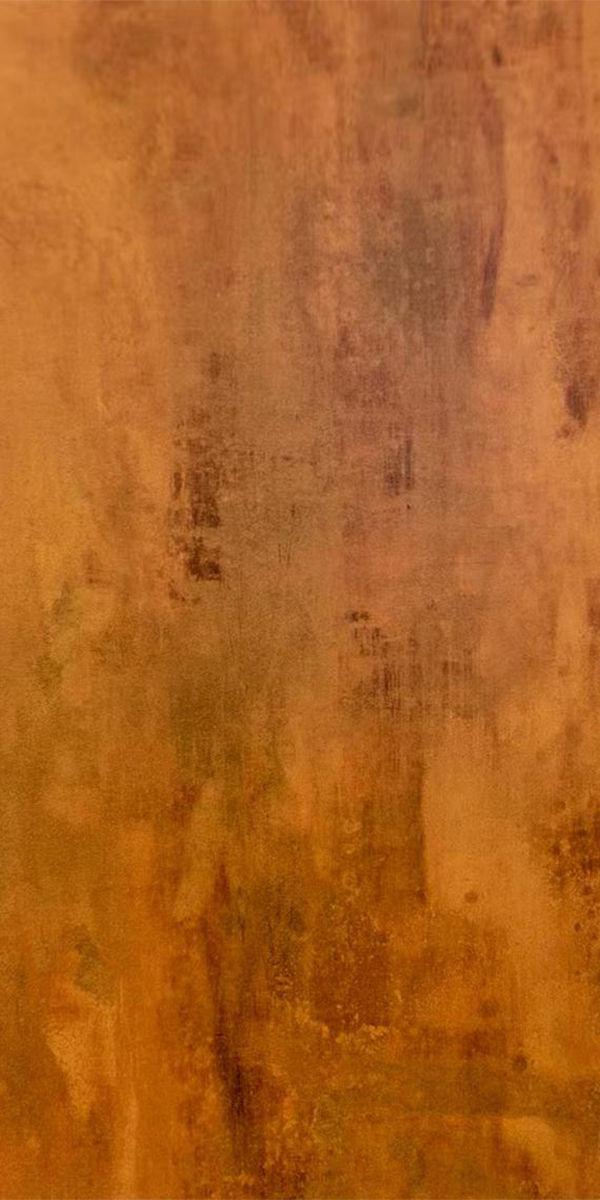

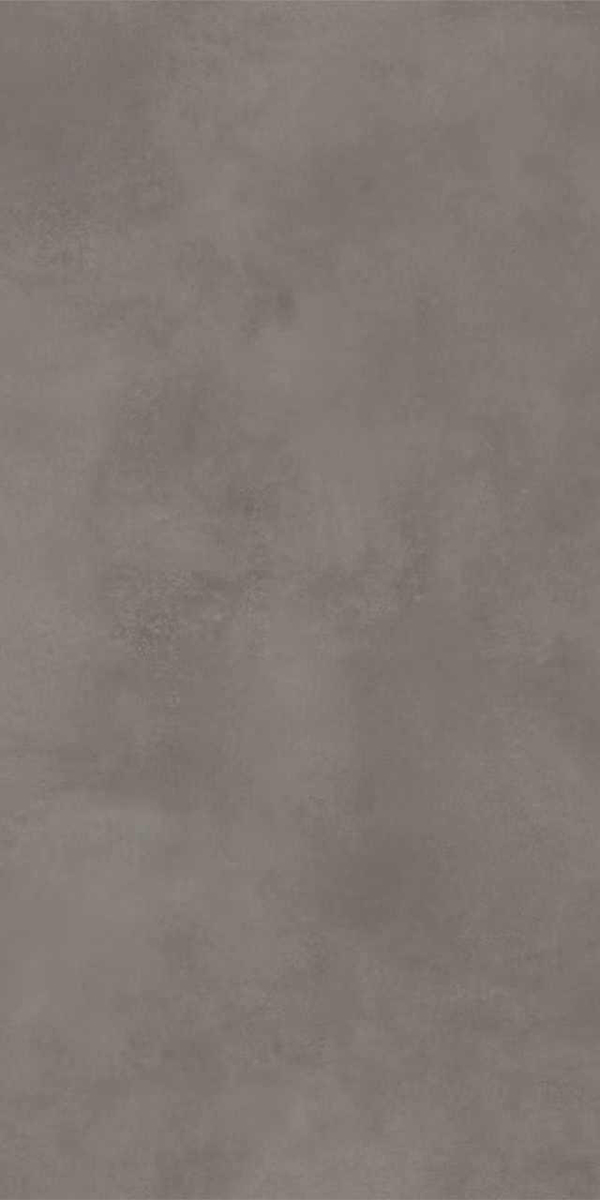

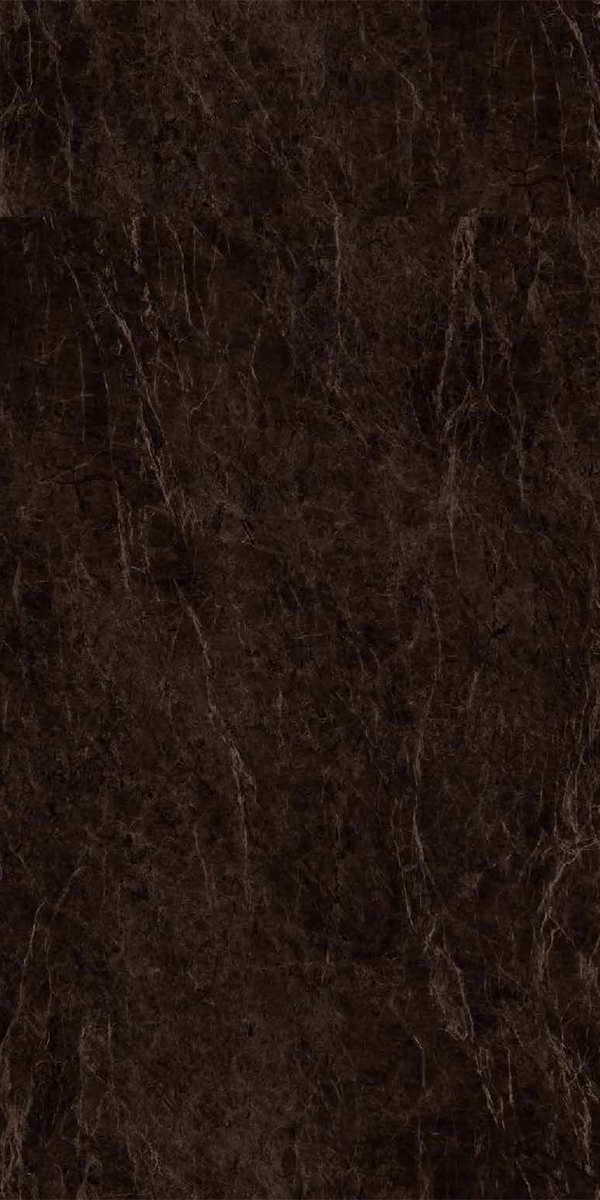

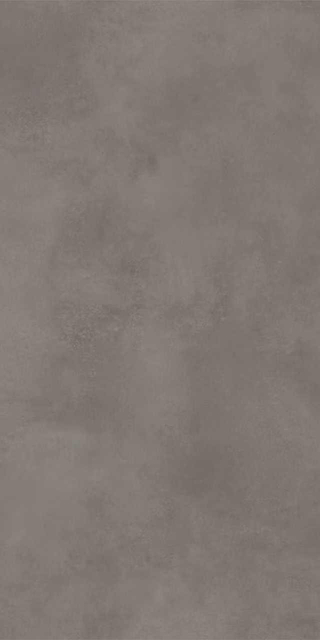

Special Designs

WIDE RANGE FINISHES

Finishes For Exterior HPL Wall Panel Projects

  • MATTE
    Matte

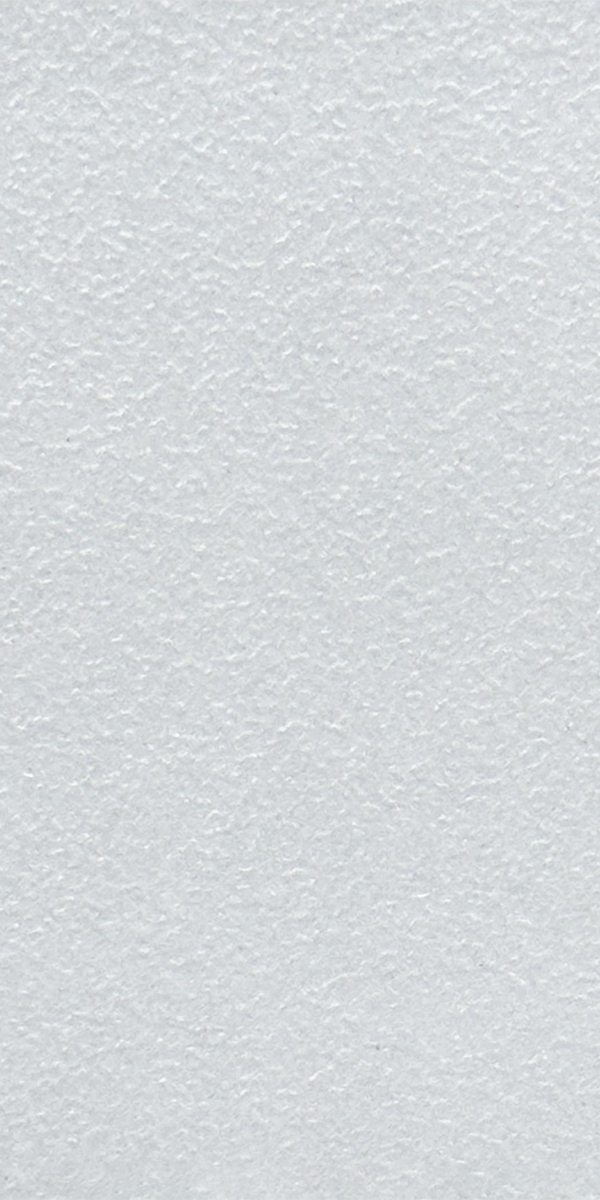

  • TEXTURE

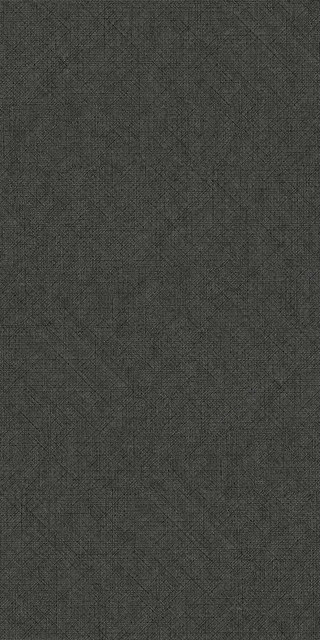

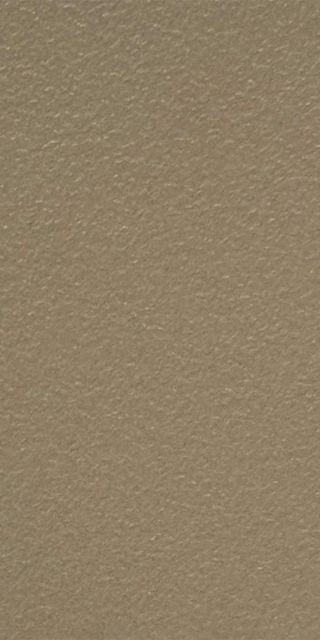

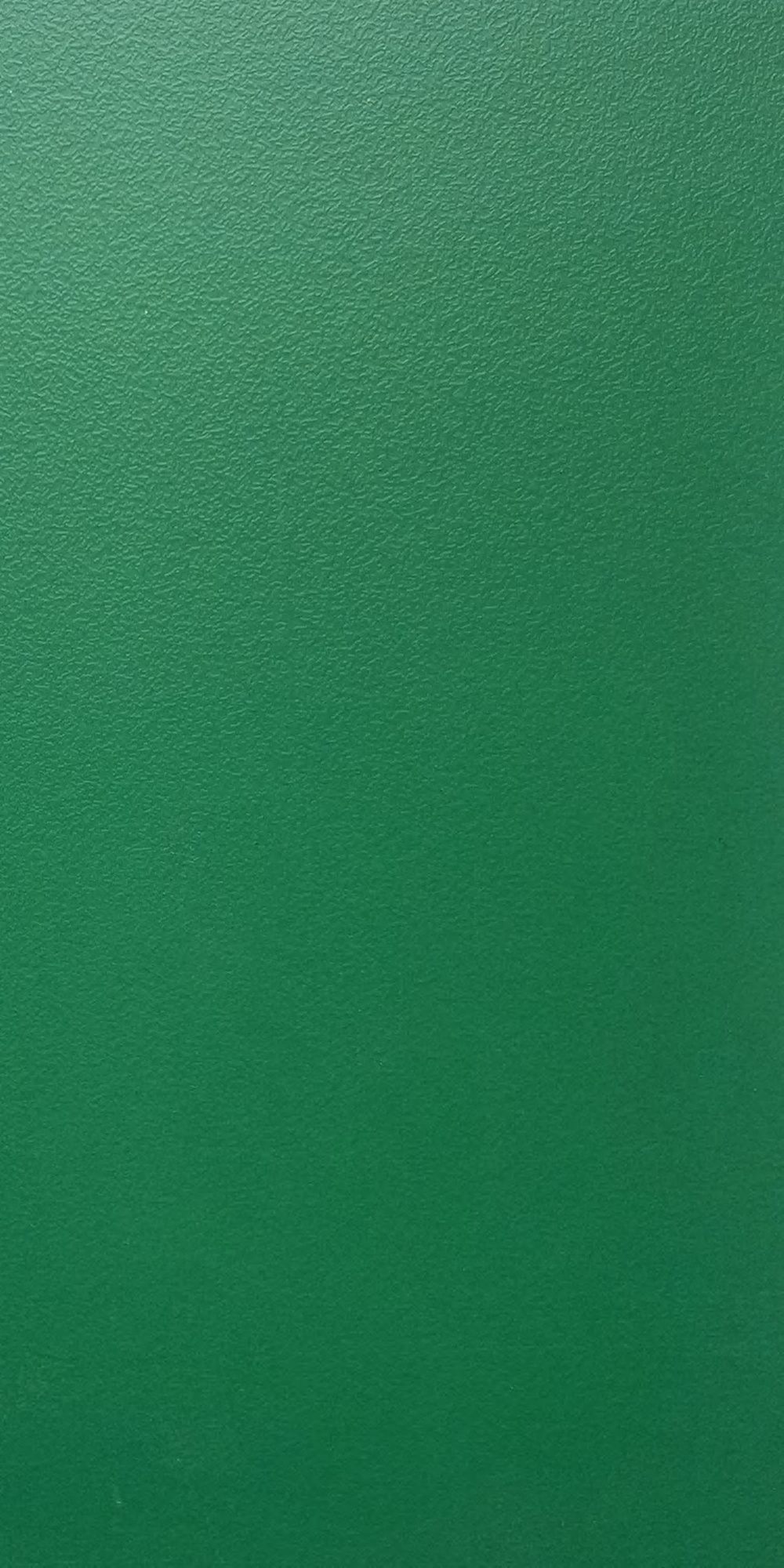

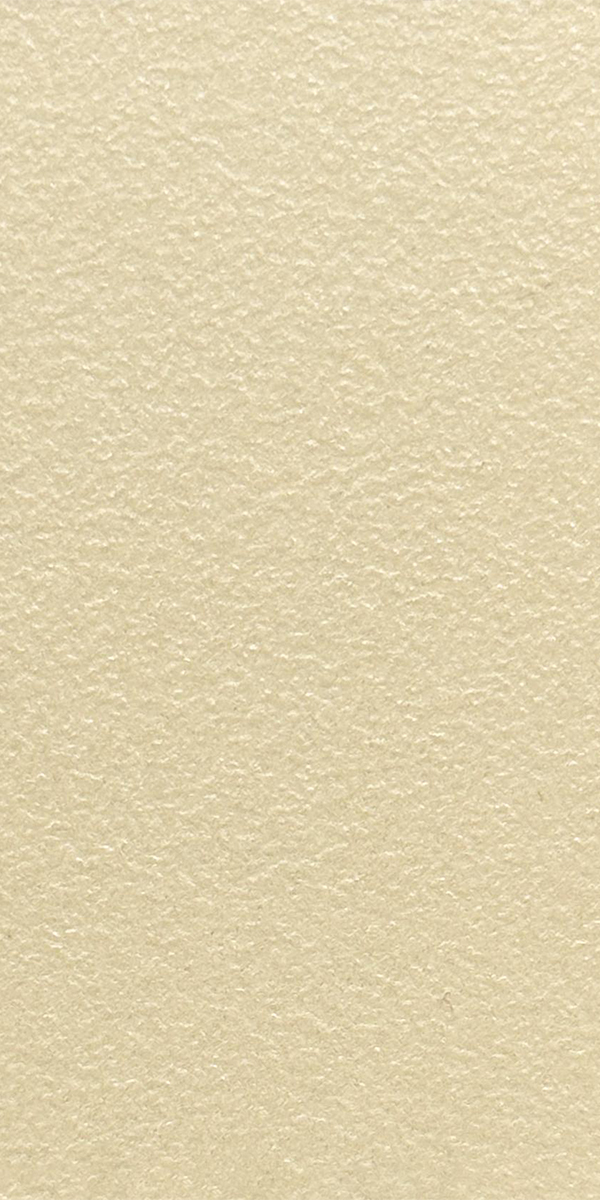

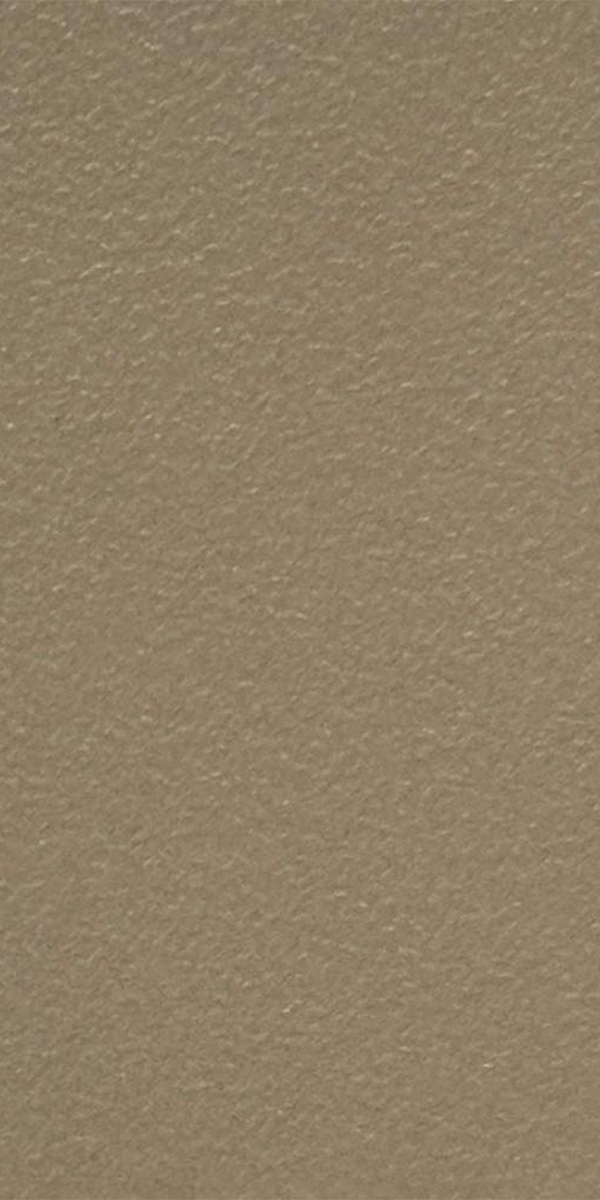

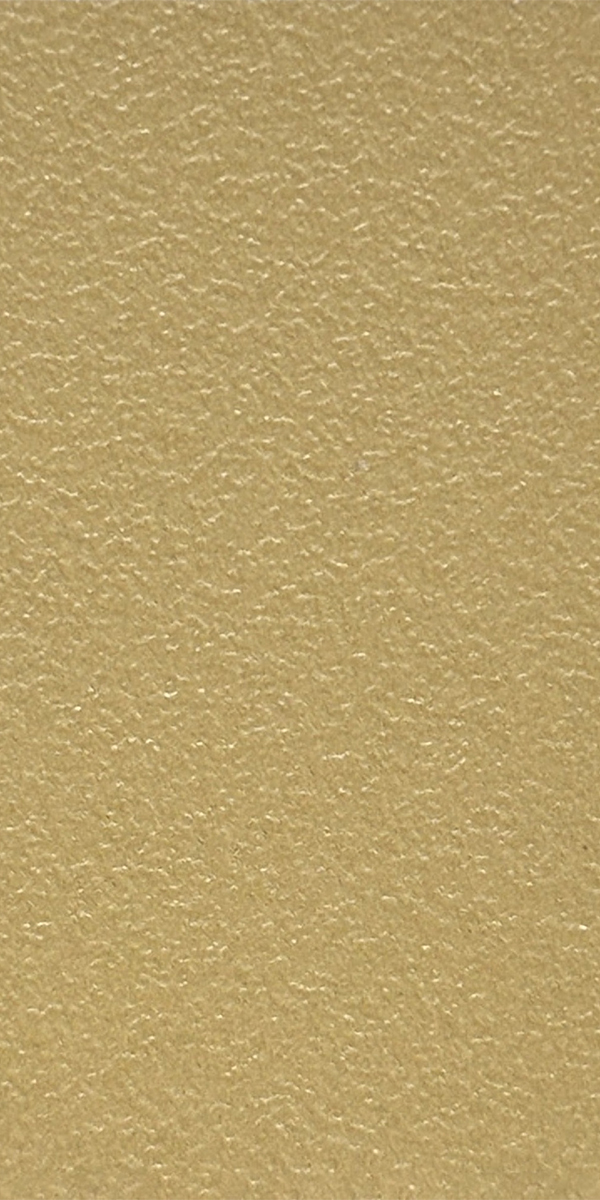

    Texture

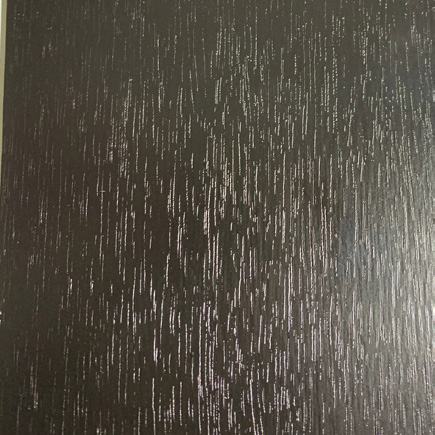

  • WOOD

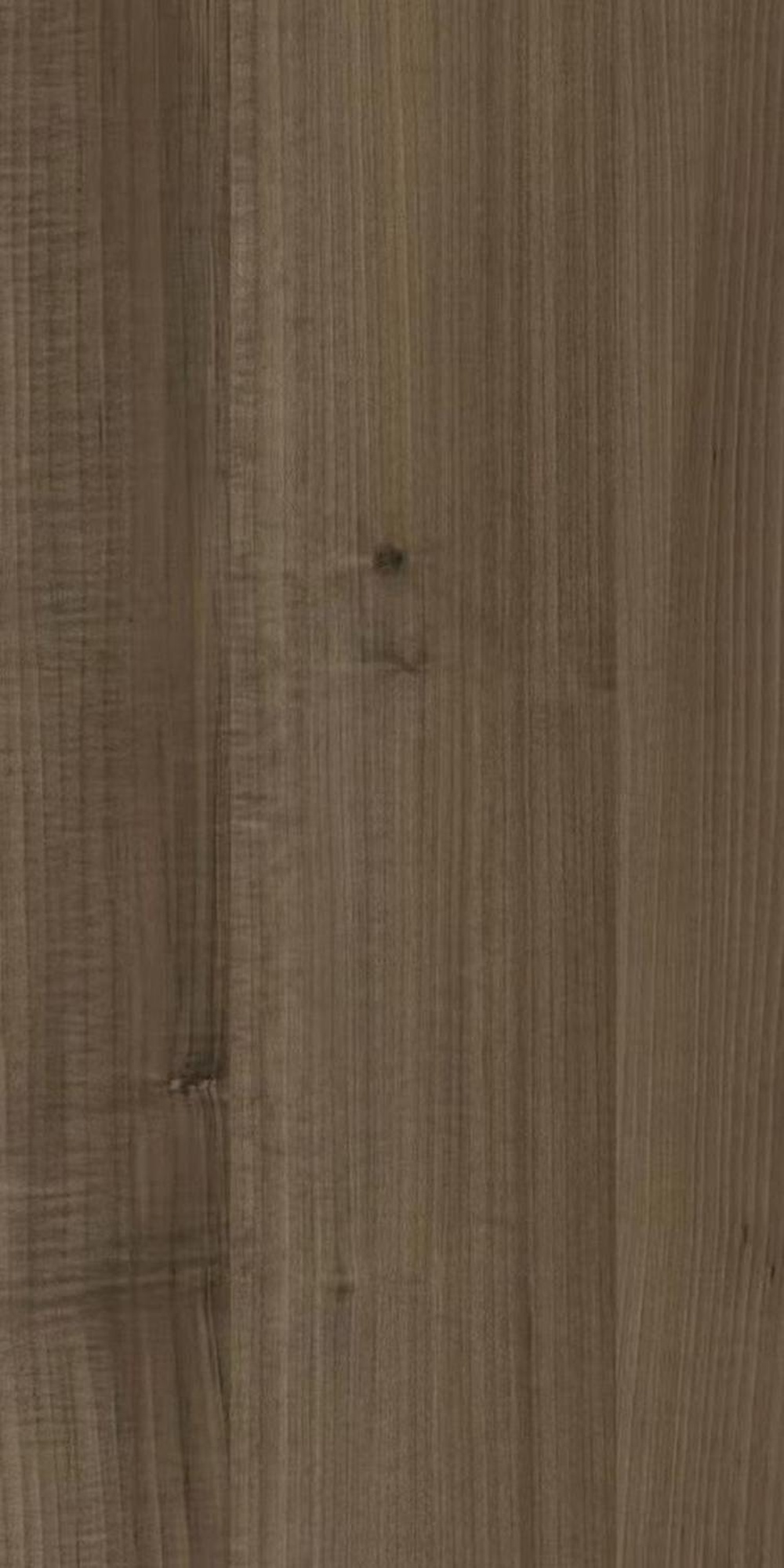

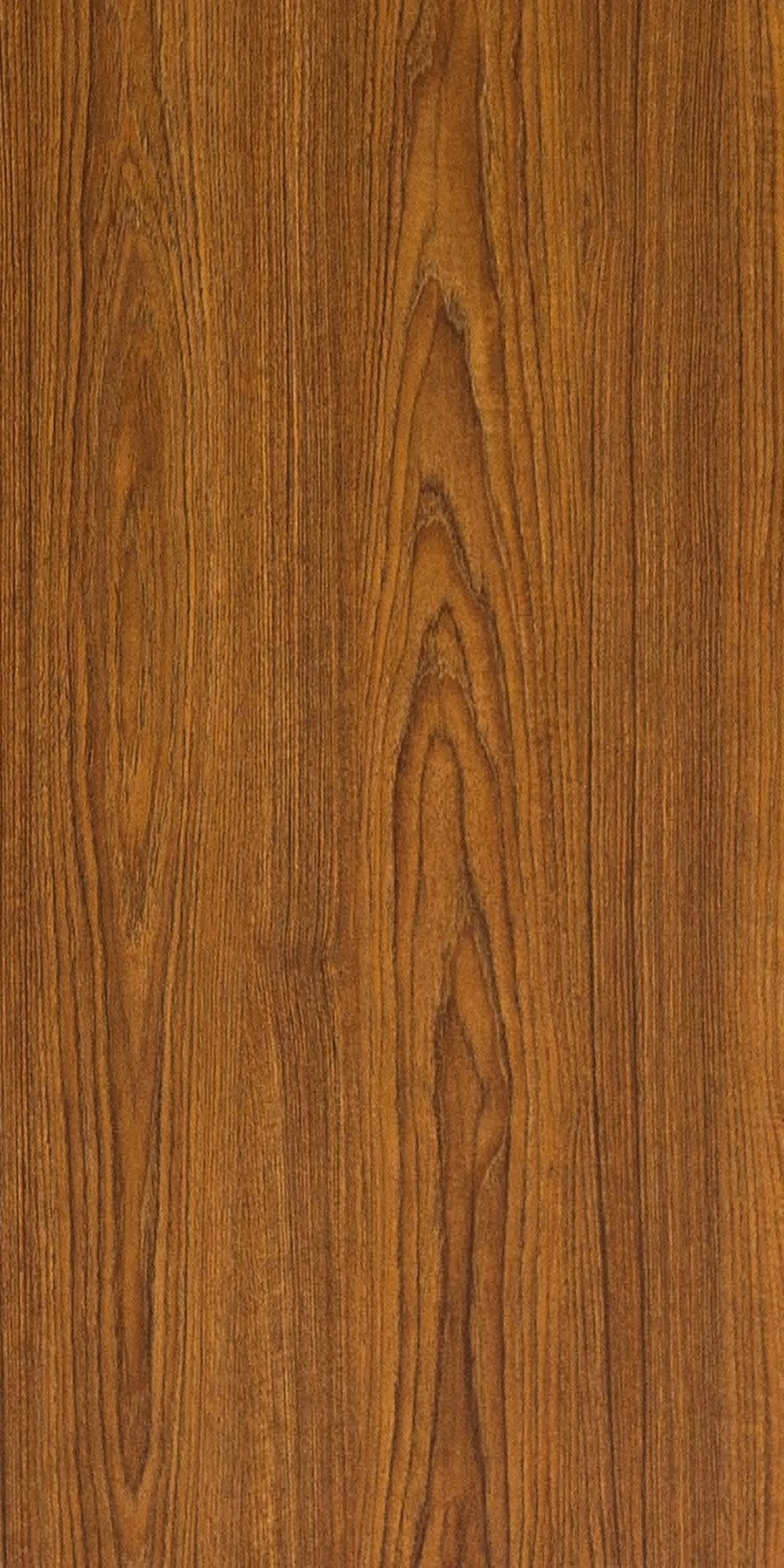

    Wood

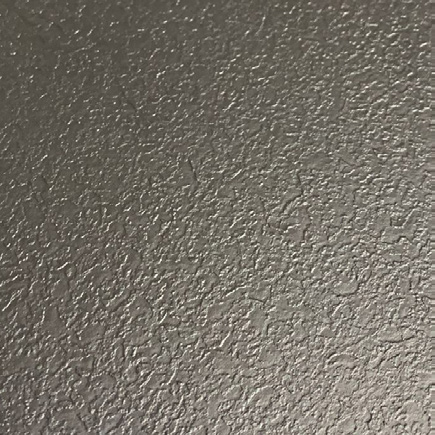

  • STONE

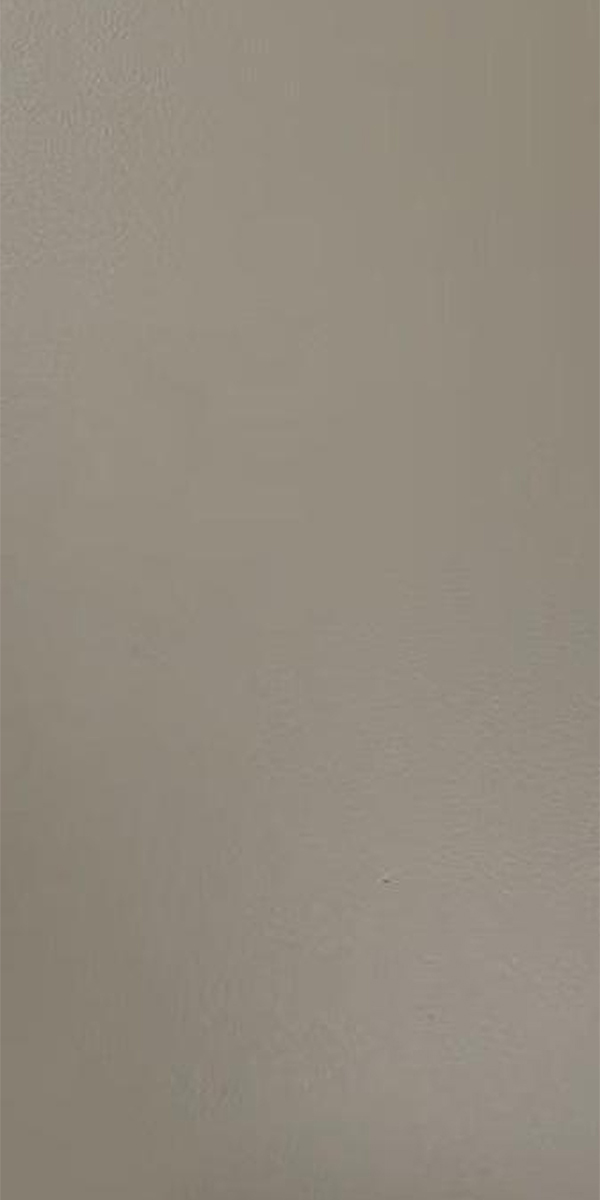

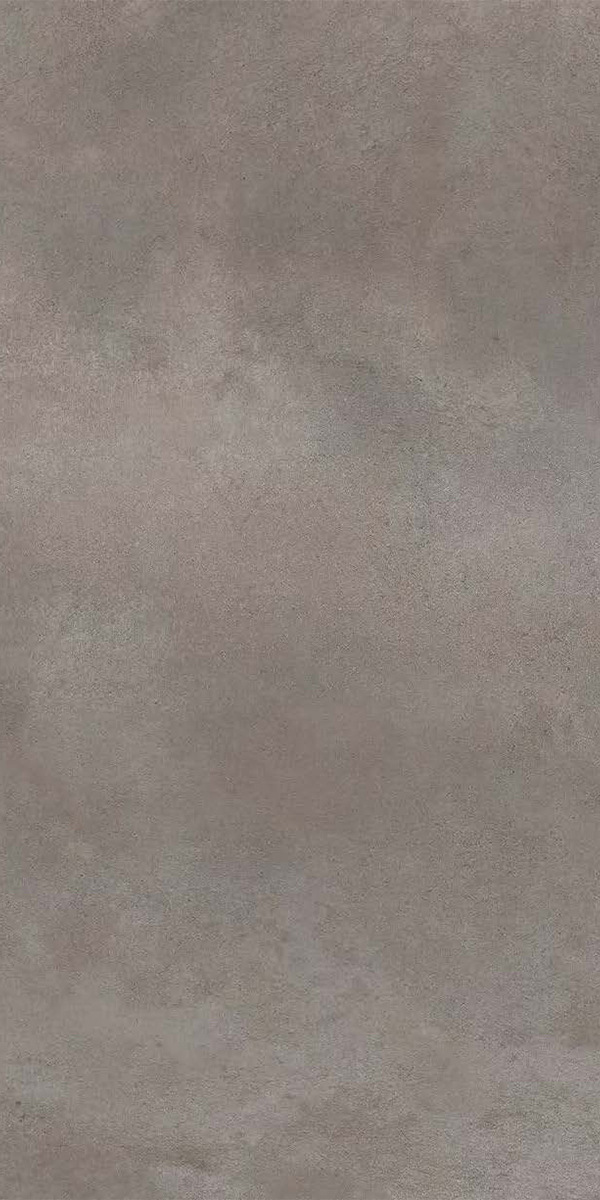

    Stone

ONE-STOP SERVICES

Need Full Color Card?

TECHNICAL DATA

Exterior HPL Technical Specifications & Document Library

Material Property Datasheet

Polybett Exterior Pro: meeting the EN 438-6:2016 standard, with a thickness of 6 mm (± ¼ inch) or greater, specifically designed for outdoor environments.
No. Properties Test Method Attributes of Performance Results (As per EN 438)
1  SURFACE QUALITY
1.1  Surface quality EN 438-2:2016
     (Clause-4)		 Spots, dirt and similar surface
defects		 ≤  2 mm²/m²
≤  0.0003 in²/ft²
Fibres, hairs and scratch
es		 ≤ 20 mm/m²
≤ 0.073 in/ft²
2  DIMENSIONAL PROPERTIES
2.1  Thickness EN 438-2:2016
     (Clause-5)		 Thickness tolerance 6.0≤T<8 : +/- 0.4 mm
8.0≤T<12 : +/- 0.5 mm
0.2362 ≤ t < 0.3150:
        +/- 0.0157 in
0.3150 ≤ t < 0.4724:
        +/- 0.0197 in
2.2  Size EN 438-2:2016
     (Clause-6)		 Length and width +  10 / - 0 mm
+  0.3936 / - 0 mm
2.3  Straightness of edges EN 438-2:2016
     (Clause-7)		 Straightness of edges ≤ 1.5 mm/m
≤ 0.018 in/ft
2.4  Squareness EN 438-2:2016
     (Clause-8)		 Squareness ≤ 1.5 mm/m
≤ 0.018 in/ft
2.5  Flatness EN 438-2:2016
     (Clause-9)		 Flatness (measured on full-size
sheet)		 ≤ 5.0 mm/m
≤ 0.06 in/ft
3  PHYSICAL PROPERTIES
3.1 Density EN ISO 1183 Mass ≥ 1.45 g/cm³
3.2  Resistance to impact
with Small diameter ball		 EN 438-2:2016
    (Clause-20)		 Indentation diameter - 6 ≤ t mm
with drop height 1.8 m		 ≤ 10 mm
3.3  Dimensional stability
at elevated temperature		 EN 438-2:2016
    (Clause-17)		 Cumulative dimensional change Longitudinal ≤ 0.25%
Transversal ≤ 0.25%
3.4 Flexural Strength ISO 178 Stress 1 N/mm² = 1MPa ≥120 N/mm²                      (>13,053 psi)
3.5 Tensile Strength ISO 527 Stress 1 N/mm² = 1MPa ≥80 N/mm²                        (>11,603 psi)
3.6 Modulus of Elasticity ISO 527 Stress 1 N/mm² = 1MPa ≥9000 N/mm²         (>1,305,340 psi)
3.7 Resistance to wet conditions EN 438-2:2016
    (Clause-15)		 Mass increase ≤ 3%
Appearance Rating ≥4
3.8 Screw Retention ISO13894-1 6mm thickness ≥2000 N
8mm thickness ≥3000 N
10mm thickness ≥4000 N
0.2362 in ≥2000 N
0.3150 in ≥3000 N
≥ 0.3937 ≥4000 N
3.9 Formaldehyde emissions EN438-7:2005 EN717-2 Class Rating E1
4 WEATHER RESISTANCE PROPERTIES
4.1 Abrasion resistance EN 13329: 2006 +A1: 2008 Revolutions 450
4.2 Light fastness                                         (Xenon arc) EN 438-6:2016
    (Clause-27)		 Contrast Grey scale
  rating 4 to 5
4.3 Light fastness                                             (Xenon arc) ISO 4892-2:2013             ISO 105-A02: 1993(E)                          ASTM D2244-11 Contrast Grey scale
  rating 4 to 5
4.4 Light fastness                              (Resistance to artificial weathering)
cycle 3000hrs		 Polybett Standard Contrast Grey scale
  rating 4 to 5
4.5 Test in high temperature and low temperature, visual check the sample after test, record any visible change. Polybett Standard +70ºC, +60ºC, +50ºC, +40ºC, +30ºC
and -30ºC		 No visible
change
5  FIRE PERFORMANCE
5.1 Reaction to Fire (Euro) EN 13501-1:2018 Class thickness ≥ 6mm B-s1,d0
5.2 Reaction to Fire (Australia) AS/NZS                 3837-1998 Product Group Number Classification Group 3
5.3 Reaction to Fire (USA) UL94 Vertical Burning Classification:V-0
5.4 Reaction to Fire (China) GB 8624-2012 Class thickness ≥ 6mm B1
Name HPL exterior wall panel
Size 4'x6'=1220x1830mm   4'x8'=1220x2440mm  4'x10'=1220x3050mm 4.3'x9'=1300x2800mm  4.3'x10'=1300x3050mm  4'x12'=1220x3660mm 5'x6'=1530x1830mm   5'x12'=1530x3660mm  5'x10'=1530x3050mm 6'x6'=1830x1830mm    6'x8'=1830x2440mm    6'x12'=1830x3660mm 6'x14'=1830x4270mm  7'x14'=2040x4270mm
Color Solid Color,Woodgrain,Stone Color,Customized design
Thickness 6mm--12mm
The variety of surface treatment Matte,Texture,Wood,Stone
Disclaimer :
*Values considering that the Polybett Exterior Pro is stored in the manner and conditions recommended by the manufacturer.
*Polybett Exterior Pro complies with the applicable standards as listed above, but the results may vary, due to difference in application of product.

POLYBETT® EXTERIOR HPL WALL PANEL

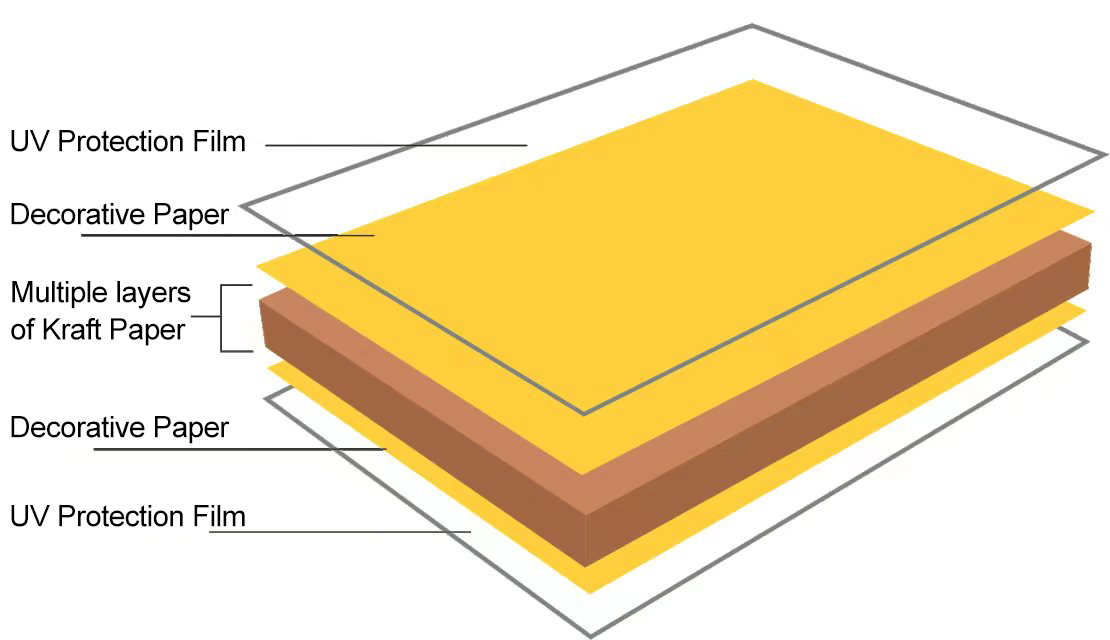

Exterior HPL Wall Panel Structure

Exterior-HPL-Panels-structure

1. Layer Structure Interpretation (As Shown in Drawing)

·UV Protection Film (Top & Bottom)

Outer weather-resistant coating that blocks UVA/UVB rays, prevents surface fading and chalking under long-term sunlight exposure.

·Decorative Paper (Dual Sides)

Impregnated melamine decorative layer, providing rich solid color, wood grain or stone textures, scratch-resistant and easy to wipe graffiti.

·Multiple Layers of Kraft Paper Core

Dense phenolic resin-impregnated kraft paper stacked and high-pressure integrated into a solid homogeneous core, zero water absorption, anti-mildew, salt-fog resistant and dimensionally stable.


2. Core Advantages

·Symmetrical double-sided UV balance structure avoids panel warping under temperature fluctuation
·Full solid phenolic core, no swelling or delamination in coastal/high-humidity outdoor environments
·B1 flame retardant, impact-resistant, low long-term maintenance cost

INDUSTRIES WE SERVED

Wide Exterior Applications of HPL Façade Panels

  • Commercial-Building-Ventilated-Facades

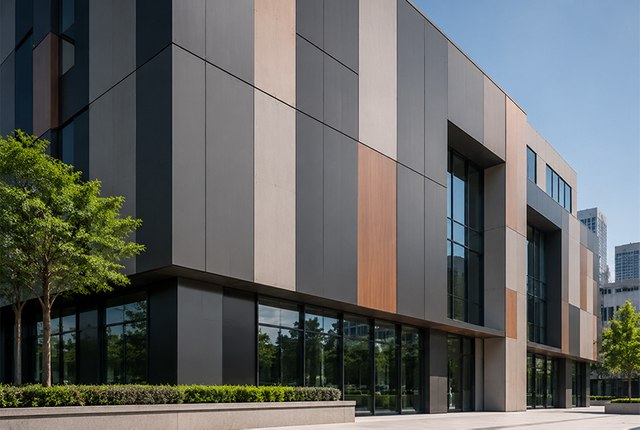

    Commercial Building Ventilated Facades
  • Residential-Balcony-&amp;-Railing-Cladding

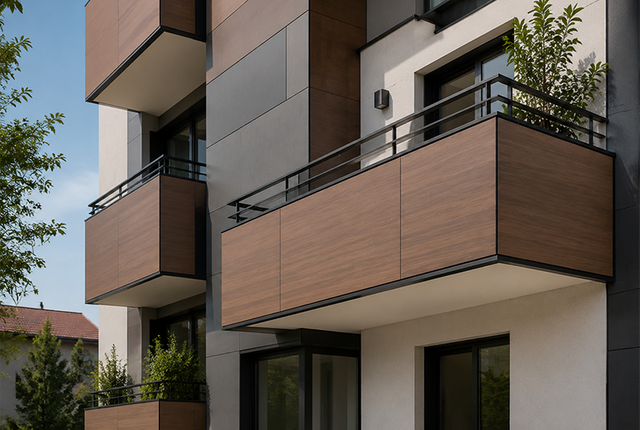

    Residential Balcony & Railing Cladding
  • Sunshade-&amp;-Sun-Louver-Panels

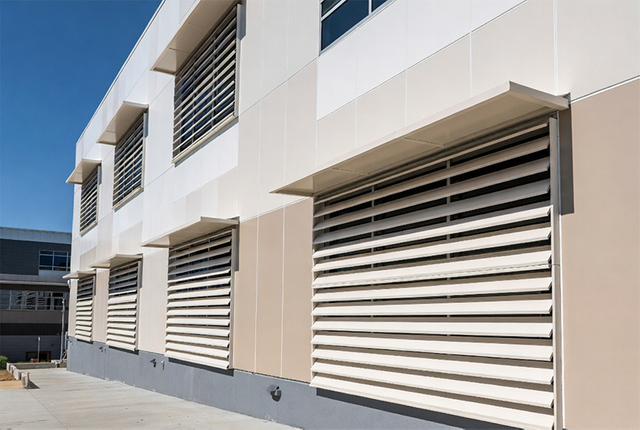

    Sunshade & Sun Louver Panels
  • Soffit-&amp;-Canopy-Eaves

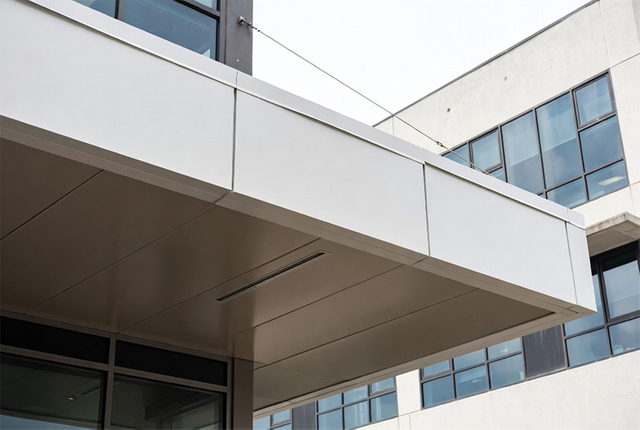

    Soffit & Canopy Eaves
  • Public-School-&amp;-Hospital-Exterior-Walls

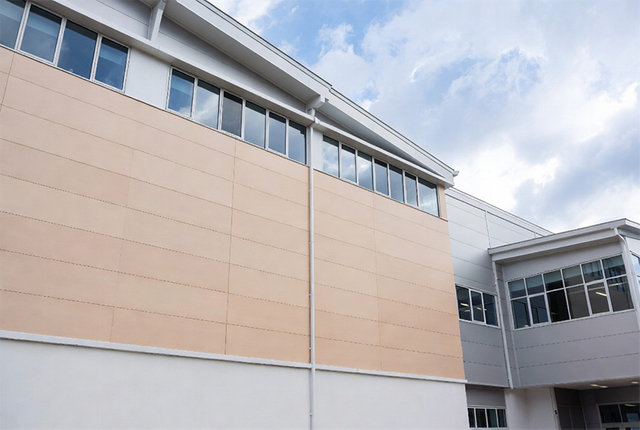

    Public School & Hospital Exterior Walls
  • Hotel-&amp;-Office-Renovation-Facade-Upgrade

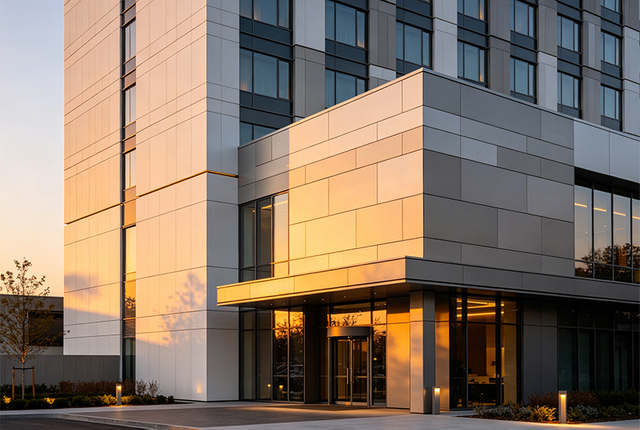

    Hotel & Office Renovation Facade Upgrade

WHY CHOOSE US

Cost-Effective Alternative to Top European Exterior HPL Brands

With equivalent outdoor weather resistance and a complete finishing system, bulk procurement for large-scale projects saves 30%–50% in costs, and we support OEM customization and private labeling.

hourglass-clock



Finish Integrity


Maintain consistent surface quality, color stability, and structural performance with strict quality control throughout the manufacturing process.


award (2)



Outdoor Warranty Period


Provide reliable long-term outdoor performance with warranty coverage designed to ensure durability under various weather conditions.


wood



Custom Sizes Available


Support customized dimensions and specifications to meet different architectural designs and project requirements.



supply-chain



Curtain Wall System Compatibility


Designed for seamless integration with modern curtain wall systems, ensuring efficient installation and excellent facade performance.

manufacturing-(1)



Bulk Supply Pricing


Offer competitive volume-based pricing solutions to help reduce project costs while maintaining consistent product quality.



delivery-truck (3)



Fast Delivery Time


Ensure efficient production and logistics management for timely delivery and smooth project execution.
