How to Prevent HPL Chipping During Cutting and Drilling

1. Why HPL & Phenolic Panels Chip Easily (Root Causes)

HPL consists of a brittle, rigid melamine decorative overlay bonded to dense phenolic kraft core. Chipping / tear-out happens for 4 core reasons:

1. Blunt or wrong-shaped tool teeth lift and crack the thin top melamine surface layer.

2. Unsecured panels vibrate during machining, creating micro-cracks along cut lines.

3. No backing support when the drill/saw exits the panel, causing bottom-layer blow-out.

4. Excessive heat from dull tools melts resin, weakening the bond between overlay and kraft core, leading to delamination.

This guide covers both thin decorative HPL (0.6–1.2mm) and thick solid phenolic panels (6–25mm toilet partition / exterior facade grade).

2. Pre-Work Universal Anti-Chipping Prep (Works for All Cutting/Drilling)

Apply these steps before every machining operation to cut 90% of chipping risk instantly:

1. Mask both sides of the cut/drill zone with wide painter’s masking tape

   Tape stabilizes the brittle melamine surface layer, stops teeth from lifting surface flakes. Leave tape on until fully finished before peeling off slowly.

2. Use sacrificial backing board underneath the panel

   Place flat MDF, plywood or leftover phenolic scrap directly under the cut path. The backing supports the material as the blade/drill exits to eliminate bottom-side tear-out.

3. Fully clamp or weight down panels to eliminate vibration

   Vibration is the #1 cause of scattered edge chips. Use bar clamps, vacuum tables or heavy flat weights to lock panels flush to the workbench; no wobbling allowed during cutting.

4. Score the decorative cut line lightly first (table saw only)

   Make a shallow 1mm scoring pass along the surface to pre-break the melamine layer cleanly before full-depth cutting.

3. Chip-Free Cutting Methods for All Common Tools

3.1 Table Saw / Fixed Circular Saw (Straight Cleanest Cuts)

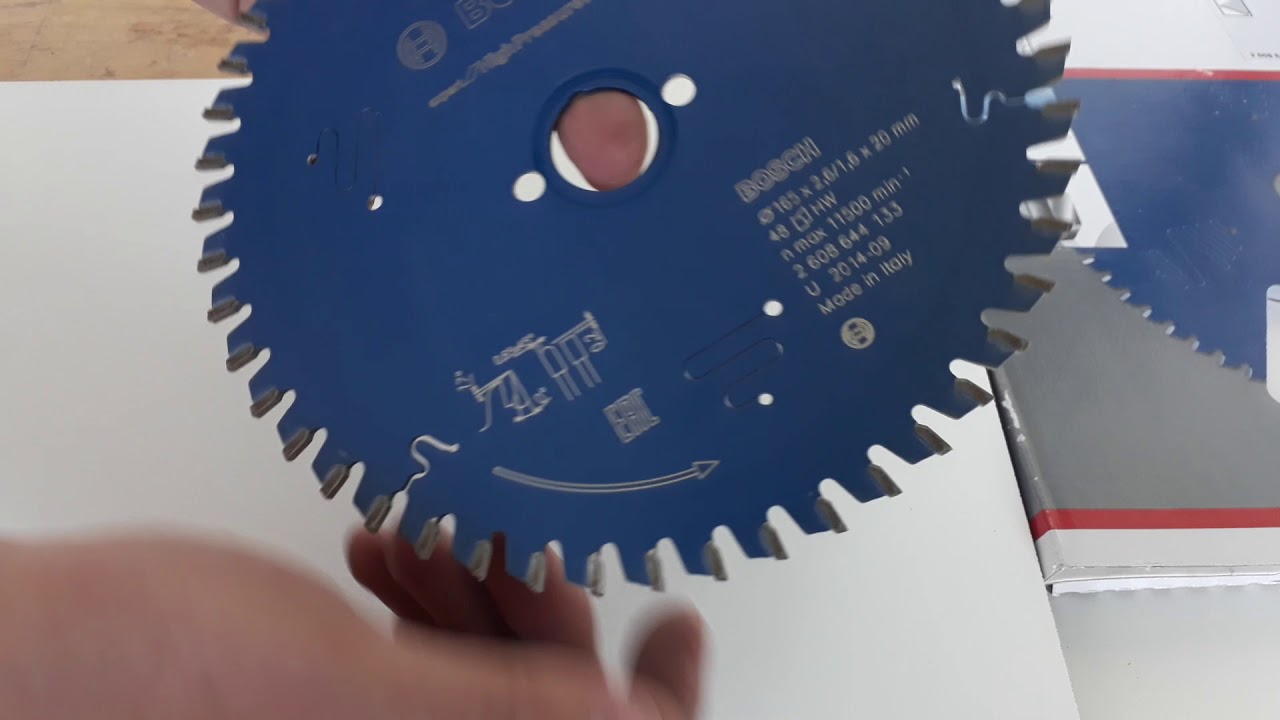

• Blade requirement: 80–100 tooth carbide triple-chip grind (TCG) blade, dedicated for laminate; avoid general wood blades.

• Panel placement: Lay panel decorative face UP; blade cuts upward through the core first, only touching the finished surface on exit.

• Blade height setting: Blade teeth extend only 3–5mm above panel thickness. Over-exposed teeth create aggressive tear-out.

• Zero-clearance insert mandatory: Replace standard wide-gap throat plate with zero-clearance insert to support the panel edge as teeth exit.

• Feed speed: Slow, steady continuous push; never rush or jerk the panel through the blade.

3.2 Handheld Circular Saw (On-Site Field Cutting)

• Blade: Same 80T+ TCG carbide laminate blade as table saw.

• Flip panel upside down: Cut with decorative face facing the workbench; saw blade penetrates the back phenolic core first, minimizing top-surface chips.

• Secure sacrificial scrap fully under the entire cut length, clamp both ends tight.

• Run the saw at full constant RPM before touching the panel; do not start cutting while the blade accelerates.

3.3 Jigsaw for Curves, Window Cutouts & Irregular Shapes

• Blade choice: Down-cut / reverse-tooth fine TPI jigsaw blade (cuts downward into the core instead of lifting the top melamine).

• Turn OFF orbital action; orbital movement rips surface laminate and causes heavy chipping.

• Tape full cut line top and bottom, place thick sacrificial board underneath the whole cutout area.

• Drill 10mm starter holes at every inside corner before sawing curves to prevent corner splitting chips.

• Slow constant feed; pause if you hear scraping or see surface flaking.

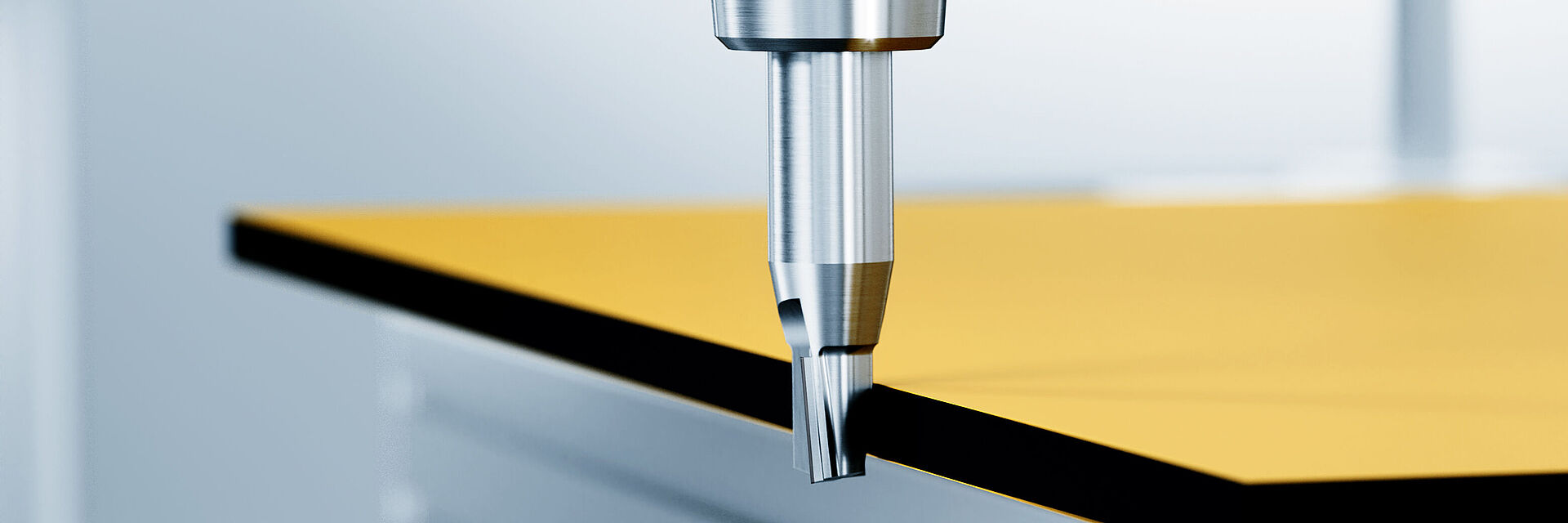

3.4 Router / Edge Trimmer (Edge Finishing & Grooving)

• Tool bit: Solid carbide flush trim bit with bottom bearing.

• Always route from the back non-decorative side toward the face side.

• Clamp sacrificial scrap flush against the edge being routed to support the melamine overlay.

• Multiple shallow light passes instead of one deep heavy cut to avoid overheating and delamination.

4. Zero-Chip Drilling Techniques for Solid Phenolic & Thin HPL

Drill tear-out occurs mostly when the bit breaks through the opposite panel side—follow these rules for clean, chip-free holes:

1. Drill bit selection (non-negotiable)

   • Best: 135° split-point solid carbide drill bit (minimizes outward force that splits laminate plies).

   • Alternative: Carbide brad-point bit; avoids bit wandering and surface breakout on entry.

   • Never use standard cheap HSS twist drills—wide chisel edges push layers apart and create large chips.

2. Full sacrificial backing under the drill point

   Thick phenolic scrap must sit flush under the panel; the drill bit exits straight into the scrap instead of blowing out the bottom melamine layer.

3. Mask drill entry and exit zones with masking tape on both sides

   Tape holds surface flakes together as the bit penetrates and exits.

4. Speed & pressure control

   • Small holes (<6mm): 3000–5000 RPM, light consistent downward pressure.

   • Large holes (>10mm): 800–2000 RPM, extremely gentle feed force.

   • Ease pressure sharply the moment you feel the bit break through the rear side to prevent blow-out chips.

5. For oversized sliding fastener holes (facade phenolic panels)

   Drill small pilot hole first, then widen the clearance hole gradually in 1mm increments instead of one single large drill pass.

5. Special Rules for Thick Solid Phenolic Facade Panels (6–25mm)

Solid phenolic has dense multi-layer kraft core that chips more easily at cut edges under desert installation site conditions:

1. Double the thickness of sacrificial backing boards to avoid sagging during cutting/drilling.

2. All cutting blades must be brand-new sharp carbide; dull blades generate extreme heat that melts phenolic resin and creates jagged crumbly edges.

3. Leave 20mm minimum edge distance from all drill hole centers to panel corners to prevent large corner chips and cracking.

4. After cutting, sand raw phenolic edges with 240-grit fine sandpaper to smooth tiny micro-chips before installation trim fitting.

5. Do not stack multiple thick phenolic panels face-to-face for simultaneous cutting—surface friction creates surface scratch chips.

6. On-Site Contractor Troubleshooting: Fix Minor Chipping After Machining

If small surface chips still appear despite precautions, repair on-site without replacing full panels:

1. Tiny melamine surface flaking: Match manufacturer color UV repair paste to fill chip gaps, smooth flat with a plastic scraper.

2. Minor edge tear-out on phenolic core: Fill with matching phenolic dust mixed with clear resin adhesive, sand flush once cured.

3. Corner split micro-chips: Seal with transparent laminate edge sealer to stop moisture intrusion in humid coastal GCC climates.

7. Common Mistakes That Cause Severe Tear-Out & How to Avoid Them

8. Final Post-Machining Edge Finishing to Hide Tiny Micro-Chips

Even with perfect cutting, microscopic edge chips may remain; finish edges before installation:

1. Sand all raw cut edges with 240-grit non-abrasive sandpaper, sand parallel to the edge only (avoid cross-sanding which scratches the decorative face).

2. Wipe off all phenolic dust with a dry microfiber cloth—trapped dust causes uneven contact with metal framing during facade installation.

3. For exterior UV phenolic panels: Lightly seal raw sanded edges with compatible UV edge sealer to lock micro-chips and resist coastal salt humidity.

4. Fit aluminum U/L trim profiles over all exposed cut edges to fully cover minor edge imperfections for finished facade appearance.
