The Impact of Different Physicochemical Membranes on Laboratory HPL (High-Pressure Laminate) Panels

Evaluating the performance of laboratory-grade HPL panels requires a close look at the physicochemical membrane, the outer protective coating that directly determines the panel’s chemical resistance, surface properties, and long-term durability. By comparing different membrane types (standard grade, high-performance coating, hard coating) and different sources (imported vs. domestic), we can better understand how these variations influence real-world laboratory performance.

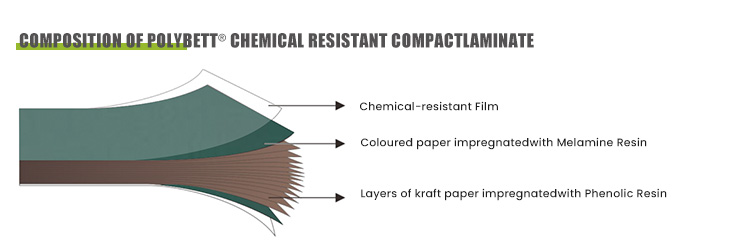

The physicochemical membrane is the core functional layer of an HPL lab panel. Its impact is mainly reflected in the following areas:

1. Chemical Resistance and Protection Level

Core Role

The physicochemical membrane is the first line of defense against acids, alkalis, organic solvents, and corrosive reagents. Its formulation determines whether the panel can withstand harsh chemical exposure without swelling, discoloration, or losing structural integrity.

Imported Membranes

High-performance imported membranes—often based on advanced PTFE, enhanced phenolic coatings, or proprietary fluoropolymer technology—offer:

• Exceptional resistance to highly corrosive chemicals

• Stronger resistance to penetration or diffusion

• Stable performance in extreme laboratory environments

These membranes are engineered using patented technologies, making them suitable for analytical chemistry labs, pharmaceutical facilities, and environments involving strong solvents.

Domestic Membranes

Standard domestic membranes can meet the needs of routine chemical or educational laboratories, but:

• Their resistance to strong acids/alkalis may be limited

• They may be more susceptible to penetration by highly aggressive reagents

They offer good cost-performance but are not ideal for extreme chemical exposure.

2. Abrasion Resistance and Mechanical Durability

Core Role

The hardness, adhesion, and surface integrity of the membrane determine its resistance to:

• Scratches

• Abrasion

• Mechanical impacts

• Wear caused by repeated equipment placement or tool movement

Membrane Type Differences

Hard-coat or ceramic-reinforced membranes (domestic or imported) offer the best performance. They can resist damage from sharp objects such as scalpels, tweezers, and metal tools commonly used in laboratories.

Origin Differences

Imported membranes generally:

• Exhibit better uniformity

• Maintain more consistent hardness

• Offer stronger adhesion to the HPL substrate

This results in longer-lasting abrasion resistance and lower likelihood of surface degradation during heavy-duty lab operations.

3. Surface Properties and Ease of Maintenance

Core Role

Surface energy, smoothness, and chemical composition of the coating influence:

• Stain resistance

• Hydrophobic and oleophobic behavior

• Cleanability

• Antistatic performance

• Resistance to microbial attachment

High-Performance Coatings

High-end imported coatings (e.g., Teflon-like fluoropolymer membranes) exhibit:

• Extremely low surface energy

• Highly hydrophobic/oleophobic behavior

• Superior resistance to stains, fingerprints, and biological residues

• Minimal static electricity accumulation

These properties are especially valuable in biological, pharmaceutical, and sterile lab environments, where contamination control is essential.

Domestic Membranes

Domestic coatings perform well in basic anti-fouling and stain resistance but may lag behind in:

• Long-term antistatic performance

• Fingerprint resistance

• Hydrophobic durability

They are suitable for general laboratory conditions but not for high-purity or contamination-sensitive zones.

4. Performance Stability and Long-Term Durability

Core Role

The membrane’s ability to retain its chemical and mechanical properties over time is critical for labs where surfaces are frequently exposed to harsh chemicals and intensive operations.

Imported Membranes

Imported membranes typically offer:

• Better long-term resistance to chemical degradation

• Lower risk of blistering, discoloration, or surface erosion

• Higher consistency due to advanced manufacturing and strict quality control

This ensures slower performance degradation even under long-term heavy use.

Domestic Membranes

Domestic options are improving rapidly, but:

• Quality varies significantly between manufacturers

• Premium domestic products may approach imported performance, but consistency is not always guaranteed

• Under long-term high-intensity use, performance drop-off tends to be more noticeable

Summary: How to Choose the Right Physicochemical Membrane

Selecting the right membrane depends on the laboratory’s operational intensity and required protection level:

1. High-Standard Laboratories

(Analytical chemistry, pharmaceutical R&D, strong acid/alkali environments)
→ Prefer imported high-performance membranes

• Highest chemical resistance

• Strongest barrier protection

• Longest service life

• Best for environments requiring uncompromising safety

2. Routine Chemical/Physical Laboratories

(Educational labs, general testing environments)
→ High-performance domestic membranes

• Cost-effective

• Sufficient for daily use

• Good chemical resistance for routine reagents

3. High-Abrasion or Heavy-Operation Zones

(Lab prep areas, high-frequency equipment zones)
→ Hard-coated or ceramic-reinforced membranes

• Best scratch and impact resistance

• Ideal for environments involving frequent handling of metal tools or heavy objects

Final Summary

The performance of laboratory HPL panels is determined by the synergy between the phenolic resin core and the physicochemical membrane. A high-quality membrane significantly enhances chemical resistance, mechanical durability, hygiene performance, and long-term stability—making it a crucial factor when selecting laboratory surfaces.

Domestic membranes offer strong value in standard environments, while imported high-performance membranes deliver elite, long-lasting protection required in demanding or high-risk laboratory settings. Choosing the right membrane ensures maximum safety, reliability, and cost-effectiveness for the laboratory’s specific applications.
