HPL Project Packaging Guide: Pallets, Protection and Container Loading

1. Common Transit Damages of HPL Panels & Root Causes

HPL (thin decorative laminate) and solid compact phenolic panels are most vulnerable to 4 types of damage during long-distance ocean transport:

1. Surface scratches: Relative sliding between panels, dust or hard debris trapped inside stacks; especially severe for matte, anti-fingerprint and ultra-matte finishes.

2. Edge & corner chipping: Loose stacking, impact during forklift handling, improper strapping without corner guards.

3. Warpage & unevenness: Insufficient full support, overstacking, uneven pallet base, temperature/humidity fluctuation inside containers.

4. Condensation contamination: Poor waterproof wrapping, trapped moisture leading to water stains on decorative surfaces.

Core packaging principle: Prevent panels from sliding, fully support every sheet, isolate external moisture, and avoid concentrated impact on edges.

2. Pre-Packaging Preparation & Panel Classification

Classification before packing

• Thin decorative HPL (0.6–1.2mm): Lightweight, decorative surface sensitive to scratches

• Solid compact phenolic HPL (6–25mm): Heavy, corners easy to chip; color core panels require stricter edge protection

• Exterior UV-grade compact HPL: UV surface film cannot be peeled before installation; avoid adhesive residue from poor-quality protective film

• Custom cut-to-size panels: Separate pallets by dimension; do not mix different sizes in one stack

Factory pre-check requirements

1. All panel edges shall be clean sanded; remove sharp burrs before stacking.

2. Remove metal scraps, sawdust and grit from panel surfaces.

3. Sort panels by colour, batch number and size; one pallet for one specification as much as possible.

3. Layer-by-Layer Panel Internal Protection (Surface, Edge & Corner)

3.1 Surface Separation

• Standard grade HPL: Insert clean kraft separator paper between each sheet.

• Matte / anti-fingerprint / FENIX ultra-matte / exterior panels:

  Option A: Pre-apply low-tack PE protective film on decorative surface (film adhesive must not remain after peeling).

  Option B: Use thick non-woven foam interleaving sheets between panels.

  ❌ Forbidden: Stack panels directly face-to-face without separation.

3.2 Edge & Corner Protection (Most Neglected Critical Step)

1. All four vertical stack corners install hard cardboard or plastic L-shaped corner protectors reaching full stack height.

2. Long side edges can add continuous cardboard edge strips to avoid direct pressure from polyester strapping.

3. For compact laminate cut-to-size small panels: Wrap foam edge strips around the whole bundle perimeter.

3. Top & Bottom Cushion

• Bottom: Place a full-size hard plywood/MDF base sheet between the lowest panel layer and pallet deckboard to avoid point pressure.

• Top: Cover the uppermost panel with a full-size hard cover board to resist compression from upper pallets.

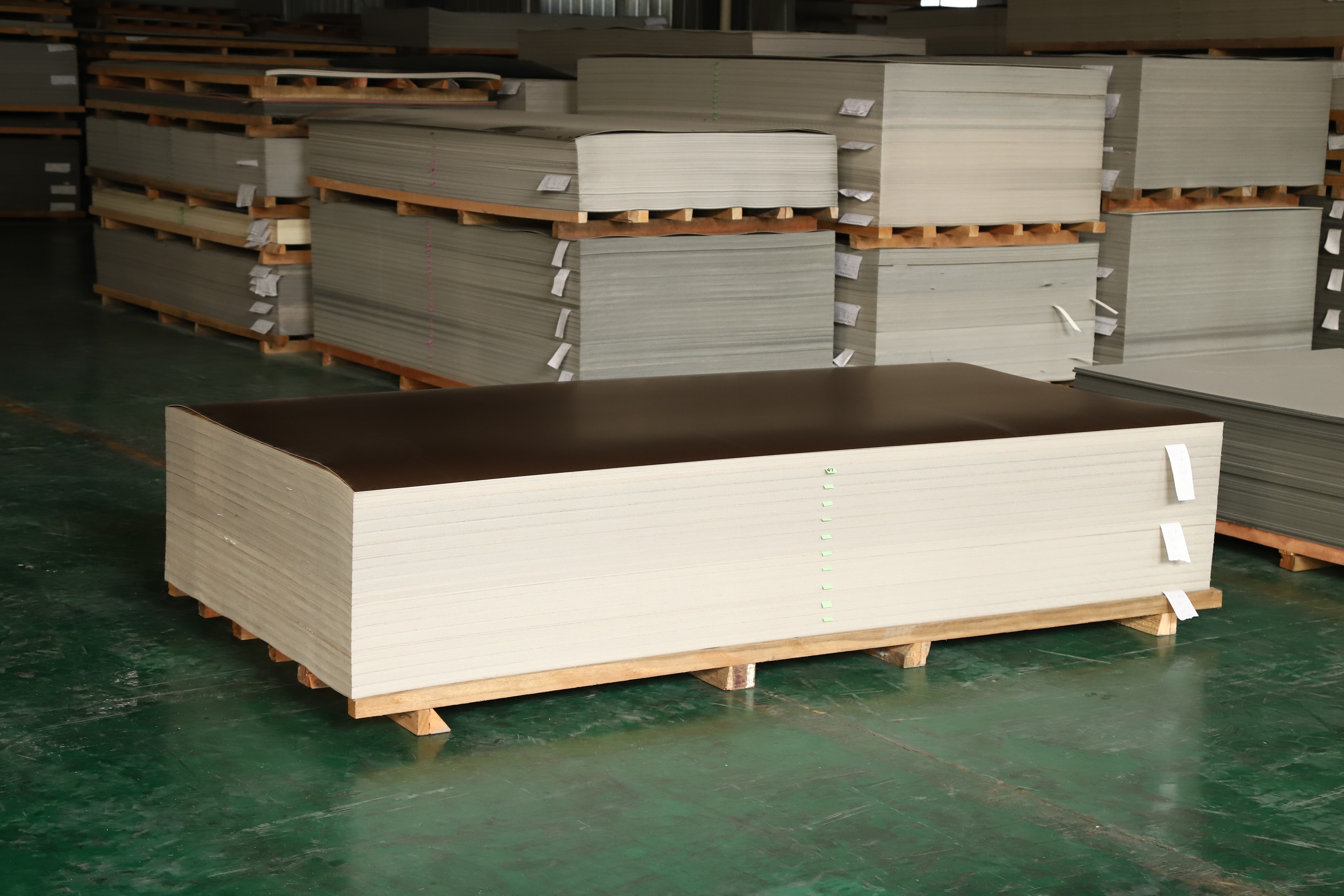

4. Pallet Specification Standard (Structure, ISPM 15, Size & Stack Height)

4.1 Pallet Type

• Export to EU, UK, Australia, USA: ISPM 15 heat-treated fumigated wooden pallets with official stamp.

• Alternative: Plastic export pallets (no fumigation needed, higher cost).

  ❌ Unprocessed raw wood pallets will be detained and fumigated by customs.

4.2 Pallet Dimension Rule

Pallet outer size ≥ panel overall size. Panels cannot overhang pallet edges. Overhang causes cantilever bending, corner chipping and breakage during forklift lifting.

Common pallet sizes for standard 1220×2440 mm panels:

1250×2470 mm dedicated large-format pallet.

4.3 Stack Height & Weight Limit

• Max stack height (including pallet base): ≤1100 mm for 20GP / 40HQ containers, convenient forklift loading.

• Single pallet gross weight: Control within 1800 kg; avoid overweight leading to pallet fracture.

• Do not stack pallets in double tiers inside containers unless pallet structure is specially reinforced.

4.4 Strapping Standard

1. Material: Polyester plastic strapping (avoid thin PP strap which easily snaps under temperature change).

2. Quantity: Minimum 4 vertical straps per pallet; add horizontal straps for extra stability on long-length panels.

3. Protection: Place rubber/foam pads between straps and corner guards to prevent straps cutting into cardboard and panel edges.

4. Tension: Straps should be tight enough to eliminate internal sliding, but not over-tight to cause edge indentation.

5. Waterproof & Anti-Condensation System for Sea Transport

Ocean containers easily produce condensation (“container rain”) under temperature difference. Apply multi-layer waterproof structure:

1. After panel bundle is finished, wrap the whole stack with ≥0.15mm thick transparent PE shrink film, fully sealed.

2. Place desiccant bags inside each pallet wrapping space:

   Reference dosage: 1kg desiccant per pallet; add extra desiccant for tropical long-voyage routes.

3. Optional upgrade: Wrap outer layer with waterproof crepe paper for GCC high-humidity coastal destinations.

⚠️ Important note: Do not achieve absolute vacuum sealing. Complete airtight packaging may trap internal moisture and form water stains.

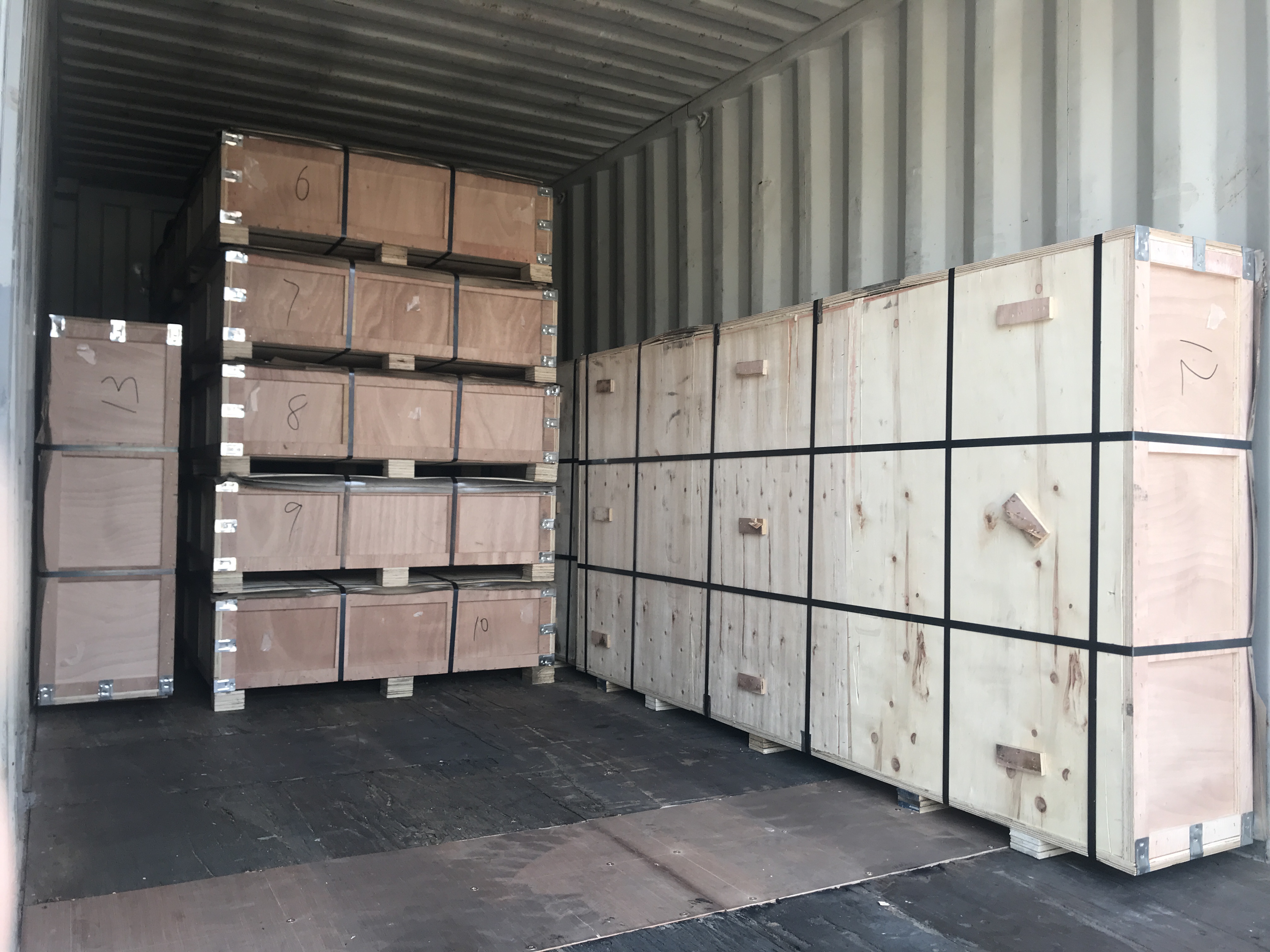

6. Standard Container Loading Procedures & Layout Rules

Pre-loading container inspection

1. Check container roof, side walls and door panels for water leakage holes, rust holes.

2. Clean all dirt, gravel and metal fragments on the container floor.

3. Lay waterproof corrugated paper or plastic sheet on container floor.

Loading layout principles

1. Load pallets lengthwise along the container; keep panels horizontal.

   ❌ Never stand HPL panels vertically inside containers. Vertical storage causes irreversible bending and edge damage during shaking.

2. Arrange pallets tightly side-by-side to eliminate horizontal shifting gaps. Reserve 8–12 cm gap between pallet rows and container side walls for air circulation.

3. Heavy compact laminate pallets are placed at the front near the container door; lighter thin HPL pallets toward the container rear.

4. Do not fill loose small packages in gaps between pallets; loose goods will rub and scratch pallet outer wrapping during transit.

7. Bracing, Securing & Weight Control

1. After all pallets are positioned: Install horizontal wooden cross braces between pallet groups to block forward/backward sliding during braking.

2. Use ratchet tension straps to anchor front-end pallets to container fixed lashing rings.

3. Weight control reference:

   • 20GP: Total cargo weight ≤21,000 kg

   • 40HQ: Total cargo weight ≤26,000 kg

     Avoid overweight which leads to road transport overload fines in destination countries.

8. Labeling & Warning Mark Requirements

Each pallet must have 2–4 visible labels (at least front and side):

1. Core label content

   • Product name: Thin Decorative HPL / Solid Compact Phenolic Laminate

   • Size: L×W×Thickness

   • Colour code, batch No., quantity per pallet

   • Gross weight / net weight

   • PO number, destination port

2. Mandatory shipping warning marks (print on pallet wrapping paper):

   • THIS SIDE UP

   • DO NOT STAND ON EDGE

   • FRAGILE – PROTECT EDGES & CORNERS

   • KEEP DRY

   • NO HEAVY LOAD ON TOP

9. Receiving Inspection & Unloading Best Practices

1. Use forklift with flat fork arms; avoid narrow sharp forks piercing packaging.

2. Lift pallets steadily; prevent sudden tilting.

3. After arrival, inspect outer packaging for water stains, broken corners and loose strapping before signing receipt. Take photos of damage immediately for freight claim if defects exist.

4. Unpack indoors under dry environment; do not open wrapping in open-air rainy conditions.

5. After unpacking, store panels flat on pallets; avoid vertical leaning against walls.

10. Procurement Technical Specification Template (Directly Paste into PO / Tender)

All HPL / compact laminate panels shall be packed on ISPM15 heat-treated wooden pallets. Pallet outer dimensions shall be larger than panel dimensions; no panel overhang allowed.

Kraft paper / foam interleaving between each sheet. L-type hard corner protectors fitted on four stack corners. Full-size top and bottom plywood cushion boards. Whole pallet wrapped with waterproof PE shrink film with desiccant inside. Minimum four polyester strapping per pallet with anti-cut foam pads.

Panels must be loaded horizontally inside container; vertical storage prohibited. Wooden bracing and tension lashing shall be equipped to prevent pallet shifting. Clear multi-side pallet labels with size, colour, batch and shipping warning marks. Any panel scratch, edge chipping, warpage caused by improper packaging shall be rejected.

11. Final Packaging Checklist Before Shipment

✅ Pallet ISPM15 stamp complete (for applicable destinations)

✅ No panel overhanging pallet edges

✅ Interleaving separator between every panel

✅ Four stack corners fitted with corner guards

✅ Top & bottom full-size cushion boards installed

✅ Polyester straps with anti-abrasion pads

✅ Waterproof PE wrapping sealed, desiccant placed

✅ Pallet labels & warning marks on multiple sides

✅ Container floor clean and waterproof lined

✅ Pallets arranged tightly with anti-slip bracing

✅ Total cargo weight within container load limit

12. FAQ for HPL Suppliers & Importers

Q1: Can thin HPL and compact laminate be loaded in one same container?

A: Allowed, but separate different pallet zones. Heavy compact pallets placed forward; avoid thin HPL stacks being squeezed. Do not stack compact pallets above thin HPL pallets.

Q2: Why do matte HPL panels easily produce blanket scratches after sea shipment?

A: Mostly no interleaving paper or poor protective film. Humidity inside container softens dust particles; slight panel movement creates continuous scratch lines.

Q3: Is wooden crate packaging better than pallet packaging?

A: Wooden crates offer maximum protection for high-end colour core compact small-size cut panels, but greatly increase freight weight and cost. Standard large-format sheets adopt pallet packaging for cost efficiency.

Q4: How to avoid protective film leaving adhesive residue on HPL after long sea transit?

A: Specify low-tack PE film; test peeling effect after 45–60 days ageing before mass packaging. Do not use cheap heavy-adhesive film for ultra-matte and exterior panels.

Q5: What to do if condensation stains appear after unpacking?

A: Unfold panels and place flat in constant-temperature dry environment for natural air drying; do not wipe with wet cloth. Severe water stains cannot be repaired and must be replaced.
